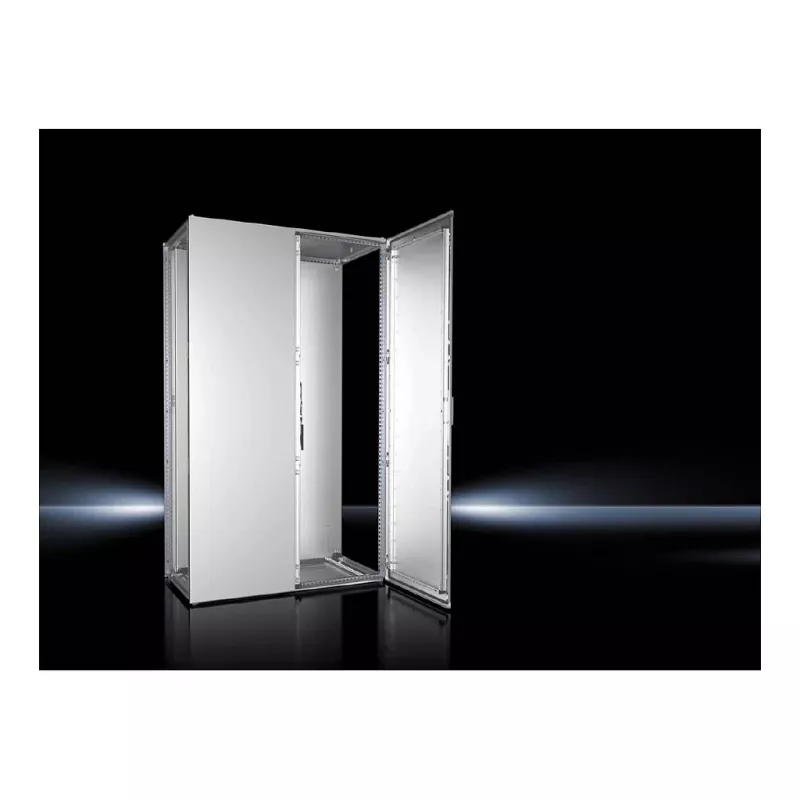

Rittal VX sistema de armarios eléctricos en fila, 2 puertas, 1200x2000x600 mm, gris claro

In large data centers and industrial facilities, space is at a premium. The Rittal VX Baying Enclosure System allows you to create a continuous, secure housing for your IT and electrical equipment by seamlessly connecting multiple enclosures side by side. This two-door model, with its generous 1200 x 2000 x 600 mm dimensions, offers ample room for servers, switches, and other critical components, while its robust steel construction and IP55 protection ensure reliable performance in demanding environments.

Key specifications

• Series: VX25
• Dimensions (W x H x D): 1200 x 2000 x 600 mm
• Material: Sheet steel
• Surface finish: Frame and panels dip-primed, panels powder-coated
• Colour: RAL 7035 (light grey)
• Number of doors: 2 (solid front doors)
• Lock system: 4-point locking, comfort handle for VX, security lock 3524 E
• Protection category: IP55, NEMA 12
• Mounting plate: Included, depth-adjustable
• Static load capacity: Max. 1500 kg
• Material thickness: Frame 1.5 mm, doors 2.0 mm, mounting plate 3.0 mm
• Baying capability: Yes, on all sides
• Supply includes: Enclosure frame, 2 doors, roof plate, rear panel, mounting plate, base frame, 4 transport eyes, lock system
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, RMRS, VDE, CSA, EAC

Why choose it

The VX system is engineered for maximum flexibility and stability. Its bayable design lets you expand your setup effortlessly, while the high load capacity and durable materials ensure long-term reliability. The included mounting plate simplifies installation, and the IP55 protection safeguards your equipment from dust and water spray.

Ideal use cases

• Data centers and server rooms
• Industrial automation and control systems
• Electrical distribution and switchgear applications
• Telecommunications infrastructure

Good to know

This enclosure is supplied with a base frame and transport eyes for easy handling. The mounting plate is depth-adjustable to accommodate various component depths. For added security, the 4-point locking system ensures even pressure on all door gaskets, maintaining the IP55 seal.
