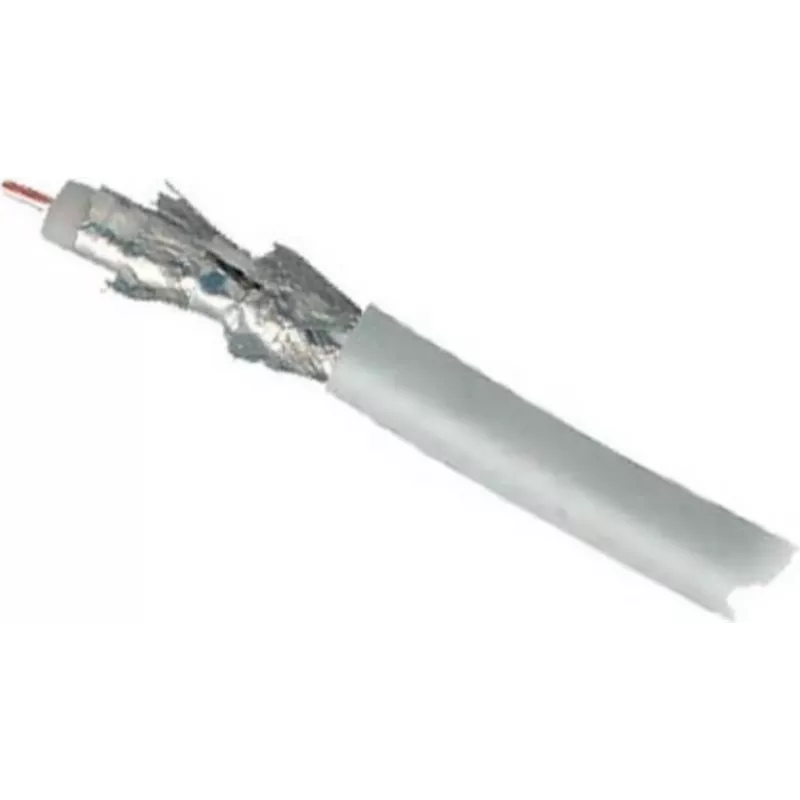

SHIVERPEAKS S/CONN Maximum Connectivity Cable coaxial SAT 1,1/5,0, 4 apantallamientos, ALU, DIGITAL CCS > 110 dB, 15,0 m (81815-1)

Satellite TV installations often suffer from signal degradation over long cable runs, leading to pixelation, dropouts, or complete loss of picture. The SHIVERPEAKS S/CONN maximum connectivity SAT Coaxial Cable solves this with its quad-shielding and low-loss design, ensuring a clean, stable signal even at 15 metres. Built with a digital CCS inner conductor and aluminium shielding, it delivers over 110 dB of screening effectiveness, keeping interference out and your satellite reception crisp.

Who is it for

This cable is ideal for satellite TV enthusiasts, professional installers, and anyone needing a reliable connection between an LNB and a satellite receiver or multiswitch. It suits DVB-S and DVB-S2 systems, including HD and 4K UHD broadcasts, where signal integrity is paramount. Whether you're setting up a home cinema or a multi-room distribution, this cable's length and shielding make it a dependable choice.

Main features

• Quad-shielded construction with aluminium foil and braid for superior interference rejection
• Digital CCS inner conductor (1.1 mm) with 5.0 mm dielectric for stable 75 Ohm impedance
• High screening effectiveness of >110 dB, meeting Class A requirements
• Wide frequency range from 5 to 2400 MHz, covering all satellite and terrestrial bands
• 15-metre length for flexible placement of receivers and dishes
• Durable indoor-rated jacket with 7.0 mm outer diameter for easy routing

Specifications

• Brand: SHIVERPEAKS
• Model: 81815-1
• MPN: 81815-1
• EAN: 4017538026255
• Cable type: SAT Coaxial Cable
• Impedance: 75 Ohm
• Cable length: 15.0 m
• Inner conductor material: Digital Copper Clad Steel (CCS)
• Inner conductor diameter: 1.1 mm
• Dielectric diameter: 5.0 mm
• Shielding type: Quad-shielded (4-fold shielded)
• Shielding material: Aluminum (ALU)
• Shielding effectiveness: >110 dB
• Frequency range: 5 - 2400 MHz
• Screening class: Class A
• Outer diameter: approx. 7.0 mm
• UV resistance: No
• Installation environment: Indoor
• Connector 1: No Connector
• Connector 2: No Connector

Tips

For best performance, avoid sharp bends and keep the cable away from power lines to minimise interference. Since this cable has no connectors, pair it with high-quality F-type compression connectors for a secure, weather-resistant fit if used outdoors. Always use a cable clip or conduit when running along walls to prevent damage and maintain signal quality.
