Sistema de alimentación ininterrumpida EVER DUO 550 PL AVR USB 550 VA, 0,55 kVA / 330 W, line-interactive, 3 salidas C13, batería 12V 5Ah

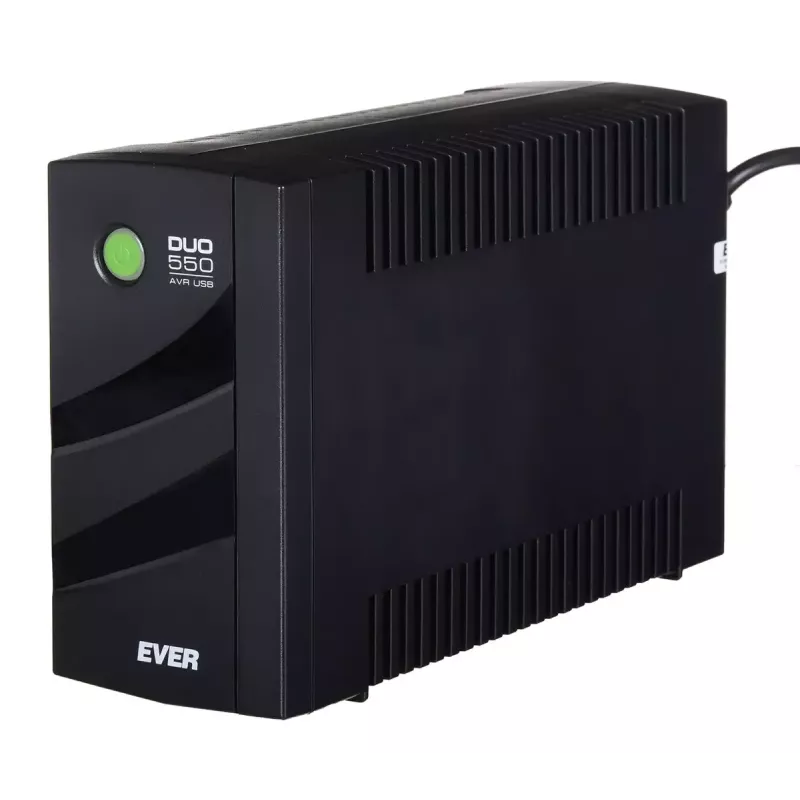

EVER DUO 550 PL is a line-interactive uninterruptible power supply (UPS) with automatic voltage regulation (AVR) and USB interface. Rated at 0.55 kVA (550 VA) / 330 W, it delivers sine-wave output and provides surge protection, short-circuit protection and cold-start capability. The UPS accepts input voltages from 162 to 290 V and supplies regulated output voltage in the 191–253 V range at 50/60 Hz. The compact black tower design includes three C13 AC outlets and a sealed 12 V 5 Ah VRLA battery with natural cooling and IP20 protection.

Advantages

The device maintains stable output voltage through AVR, protecting connected equipment from under- and over-voltage events. Line-interactive topology with sine output ensures cleaner power for sensitive electronics. Built-in surge and short-circuit protection reduce the risk of damage from transients, while audible alarms and a USB interface provide clear status indication and basic communication. The compact tower form and three C13 outlets allow convenient placement and connection of small office or home equipment.

Suitable for

• Home office PCs and workstations
• Networking equipment such as routers and switches
• Small NAS devices and external drives
• Point-of-sale terminals and peripherals

Key specifications

• UPS topology: Line-Interactive
• Rated output power: 0.55 kVA / 330 W
• Input voltage range: 162–290 V
• Output voltage range: 191–253 V
• Input / output frequency: 50/60 Hz
• Waveform: Sine
• Automatic Voltage Regulation (AVR): Yes
• Surge protection and short-circuit protection: Yes
• Batteries: sealed lead-acid (VRLA), 12 V, 5 Ah, 1 unit
• Cold-start function: Yes
• AC outlets: 3 × C13
• USB port: Yes
• Cooling: Natural
• Ingress protection: IP20
• Form factor and colour: Tower, black
• Dimensions (W×D×H): 84 × 252 × 158 mm
• Weight: 3.8 kg

How to use

Place the UPS on a stable, flat surface with adequate ventilation and connect the input to a mains supply within the specified voltage range. Attach required equipment to the three C13 outlets and, if needed, connect the USB port to a computer for status monitoring. Ensure the internal 12 V battery is installed and charged before relying on battery-backed operation. In case of mains failure the UPS will switch to battery power automatically and emit audible alarms to indicate fault, low battery or overload conditions.

Recommendations

Locate the UPS away from heat sources and moisture, maintain ambient temperature within 0–40 °C and relative humidity within 20–80% during operation. Periodically test the battery and replace it according to the manufacturer’s service interval or when capacity declines. Avoid connecting loads that exceed the rated 330 W output to prevent overload conditions.
