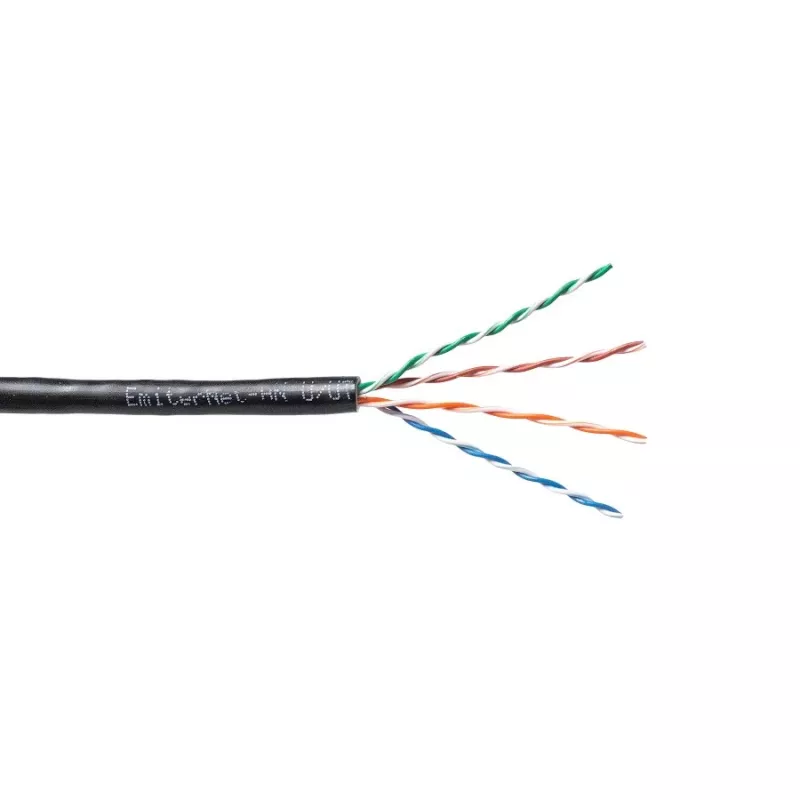

EMITER EmiterNet Cable UTP Cat5e exterior PVC+PE cobre macizo 4x2x0,5mm Negro

The EMITER EmiterNet Outdoor UTP Cat5e Cable is a high-performance, unshielded twisted pair cable designed for reliable outdoor network installations. Constructed with a solid copper conductor and a dual-layer PVC+PE jacket, this cable offers excellent durability and protection against environmental factors such as UV radiation and moisture. It supports data rates up to 1 Gbps and is compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards, making it ideal for Gigabit Ethernet applications.

Advantages

This cable features a robust outdoor-rated jacket that combines PVC and PE materials, providing superior resistance to UV rays, water, and temperature extremes. The solid copper conductors ensure stable signal transmission over longer distances, while the U/UTP design minimizes crosstalk and interference. Easy to install and terminate, it is a cost-effective solution for extending network connectivity in external environments.

Suitable for

• Outdoor Ethernet network connections
• Connecting buildings or external devices
• Security camera systems and access points
• Industrial and commercial network infrastructure

Key specifications

• Cable type: UTP (Unshielded Twisted Pair)
• Category: Cat5e
• Conductor: Solid copper, 0.5 mm (approx. 24 AWG)
• Number of pairs: 4 (8 conductors)
• Jacket material: PVC + PE
• Jacket color: Black
• Shielding: U/UTP
• Impedance: 100 Ohm
• Maximum frequency: 100 MHz
• Data rate support: Up to 1 Gbps
• Operating temperature: -20°C to +70°C
• Installation temperature: 0°C to +50°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, ensure proper grounding and avoid sharp bends during installation. Use with compatible RJ45 connectors and follow local electrical codes.
