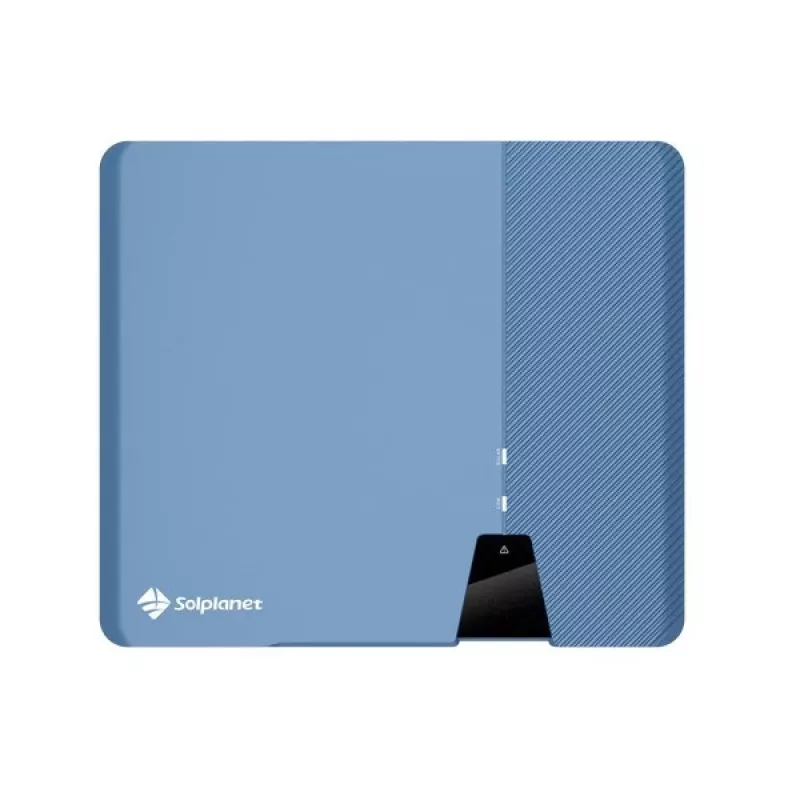

Solplanet ASW 3K-LT-G2 Inversor trifásico 3 kW AFCI

The Solplanet ASW 3K-LT-G2 is a high-efficiency three-phase inverter designed for residential and small commercial photovoltaic systems. With a rated output of 3 kW and advanced safety features including AFCI, it ensures reliable and safe operation. The inverter features 2 MPPTs, a wide input voltage range, and natural convection cooling for silent performance.

Advantages

High efficiency up to 98.2%, integrated DC switch for safety, compact and lightweight design, IP65 protection for outdoor installation, and 10-year warranty.

Suitable for

• Residential solar systems
• Small commercial installations
• Three-phase grid connections

Key specifications

• Rated AC Output Power: 3000 W
• Max DC Input Power: 4500 W
• Number of MPPTs: 2
• MPPT Voltage Range: 150 V - 950 V
• Max DC Input Voltage: 1000 V
• Max Efficiency: 98.2%
• European Efficiency: 97.5%
• AC Grid Type: Three-phase
• Nominal AC Voltage: 3/N/PE, 230V/400V
• Max Input Current per MPPT: 12.5 A
• Protection Features: AFCI, DC Reverse Polarity, AC Short Circuit, Anti-Islanding, Overvoltage, Overcurrent
• Communication Interfaces: RS485, WLAN (optional), LAN (optional)
• Enclosure Protection Rating: IP65
• Cooling Type: Natural Convection
• Operating Temperature Range: -25 °C to +60 °C
• Topology: Transformerless
• Integrated DC Switch: Yes
• Warranty: 10 Years

Recommendations

For optimal performance, pair with compatible solar panels and ensure proper installation by a certified electrician. The inverter supports remote monitoring via optional WLAN or LAN modules.
