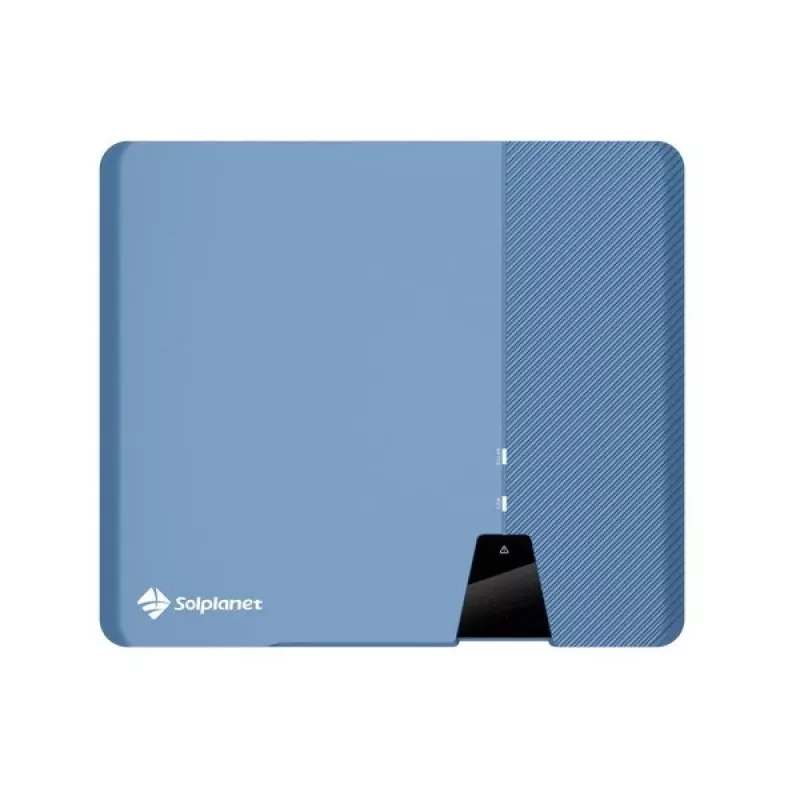

Solplanet ASW 6K-LT-G2 Pro Inversor, 3 fases, 6kW, 2 MPPT 16A, interruptor DC, Wi-Fi, RS485, opción 4G, protección contra sobretensiones DC Tipo II, AFCI

The Solplanet ASW 6K-LT-G2 Pro is a high-performance three-phase grid-tie inverter designed for residential and commercial solar installations. With a nominal power of 6 kW and advanced features, it ensures maximum energy yield and reliable operation.

Advantages

High efficiency up to 98.6% with natural convection cooling ensures silent operation and long lifespan. Integrated DC switch, DC surge protective device Type II, and AFCI provide comprehensive safety. Wi-Fi and RS485 communication with optional 4G enable easy monitoring and control.

Suitable for

• Residential and commercial on-grid solar systems
• Three-phase installations requiring up to 6 kW output
• Systems with up to 2 MPPT inputs for flexible panel configuration

Key specifications

• AC Nominal Power: 6000 W
• Max AC Output Power: 6600 VA
• Max DC Input Power: 9000 W
• Max DC Input Voltage: 1100 V
• MPPT Voltage Range: 150 - 1000 V
• Number of MPPTs: 2
• Max Input Current per MPPT: 16 A
• Max Efficiency: 98.6%
• Euro Efficiency: 97.9%
• Nominal AC Voltage: 230/400 V (3L/N/PE)
• Communication: Wi-Fi, RS485, 4G (Optional)
• Safety: DC Switch, DC SPD Type II, AFCI
• Protection Degree: IP65
• Operating Temperature: -25°C to +60°C
• Cooling: Natural Convection
• Display: LED Indicators, Mobile App
• Topology: Transformerless

Recommendations

For optimal performance, pair with compatible solar panels and monitoring system. Ensure proper installation by a certified electrician.
