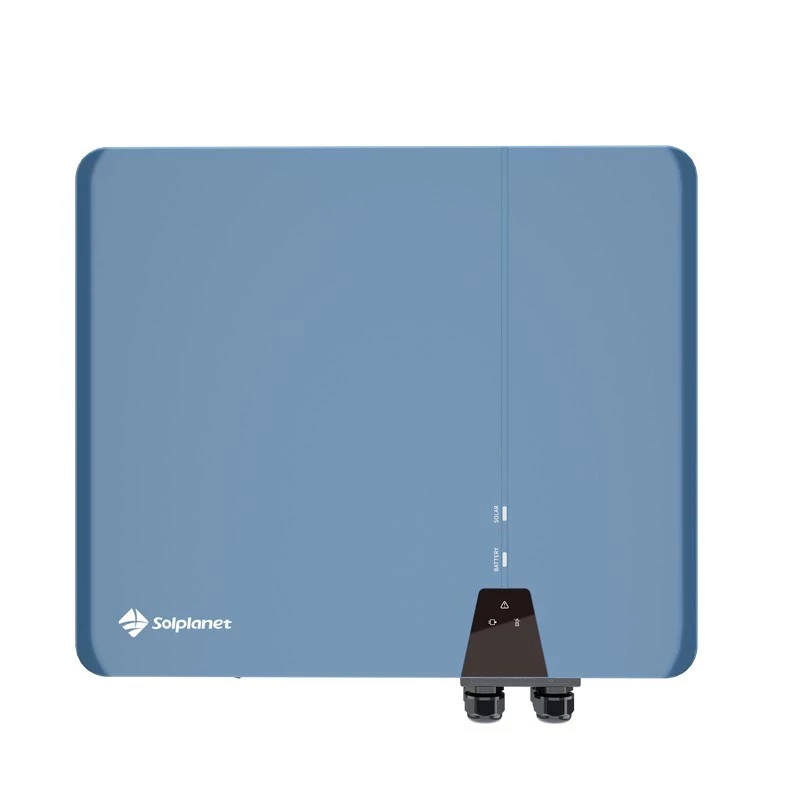

Solplanet ASW12kH-T3 inversor híbrido, trifásico, 12 kW, 3 MPPT, seccionador DC, WLAN/LAN/RS485, compatible con baterías LiFePO4 de alta tensión, apto para generador, 10 años de garantía

The Solplanet ASW12kH-T3 is a high-performance 3-phase hybrid inverter designed for residential and commercial solar systems. With 12kW output power and 3 MPPTs, it maximizes energy harvest from solar panels. The inverter features an integrated DC disconnector for safety and supports high-voltage LiFePO4 batteries for energy storage. It also offers generator compatibility for backup power. Communication interfaces include WLAN, LAN, and RS485 for easy monitoring and integration. With a high efficiency of 98.2% and IP65 protection rating, it is reliable and durable. The product comes with a 10-year warranty for peace of mind.

Advantages

High efficiency up to 98.2% ensures maximum energy conversion. Three MPPTs allow flexible panel configuration and optimal performance even in partial shading. Integrated DC disconnector enhances safety during installation and maintenance. Compatible with high-voltage LiFePO4 batteries for efficient energy storage. Generator support provides backup power during grid outages. Multiple communication interfaces enable remote monitoring and smart grid integration. IP65 rating ensures outdoor installation with dust and water resistance. Natural convection cooling ensures silent operation and long lifespan.

Suitable for

• Residential solar systems with battery storage
• Commercial installations requiring three-phase power
• Off-grid and backup power applications with generator
• Systems with complex roof orientations (3 MPPT)

Key specifications

• Inverter Type: Hybrid
• Output Power (AC): 12 kW
• Phase Type: 3-Phase
• Number of MPPTs: 3
• Max. DC Input Power: 18000 W
• Max. DC Input Voltage: 1100 V
• MPPT Voltage Range: 150 V - 1000 V
• Battery Compatibility: High-voltage LiFePO4
• Battery Voltage Range: 150 V - 800 V
• Max. Charge/Discharge Power: 12000 W
• Communication Interfaces: WLAN, LAN, RS485
• DC Disconnector: Integrated
• Max. Efficiency: 98.2%
• Euro Efficiency: 97.5%
• Protection Rating: IP65
• Operating Temperature Range: -25°C to +60°C
• Cooling Method: Natural Convection
• Generator Compatibility: Yes
• Warranty: 10 Years
• Grid Type: On-grid / Off-grid / Hybrid

Recommendations

This inverter is ideal for users seeking a reliable and efficient hybrid solution with battery storage and generator backup. Ensure compatibility with your battery system and consult a professional installer for proper setup.
