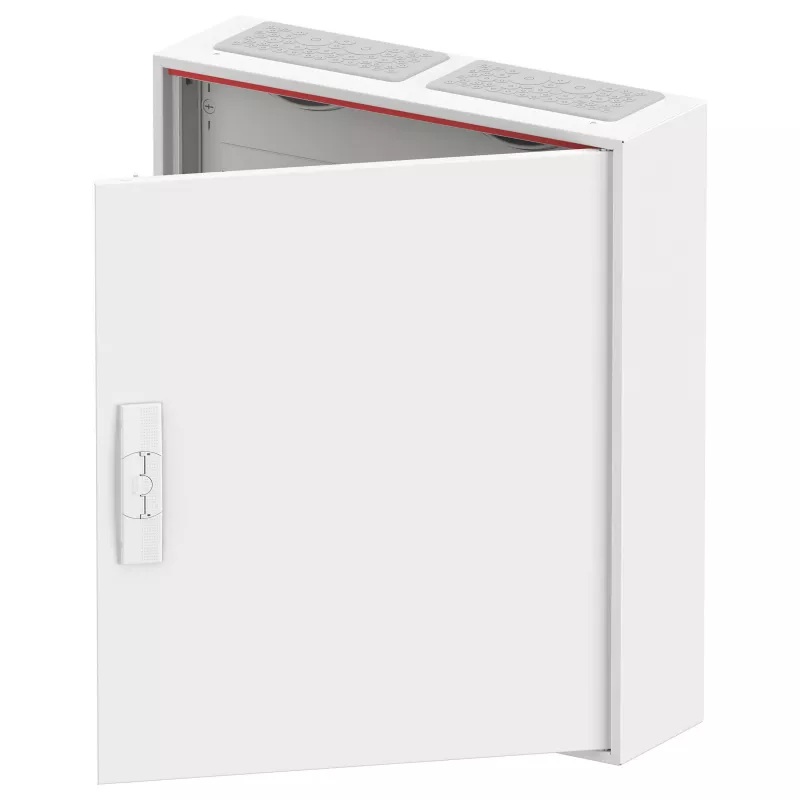

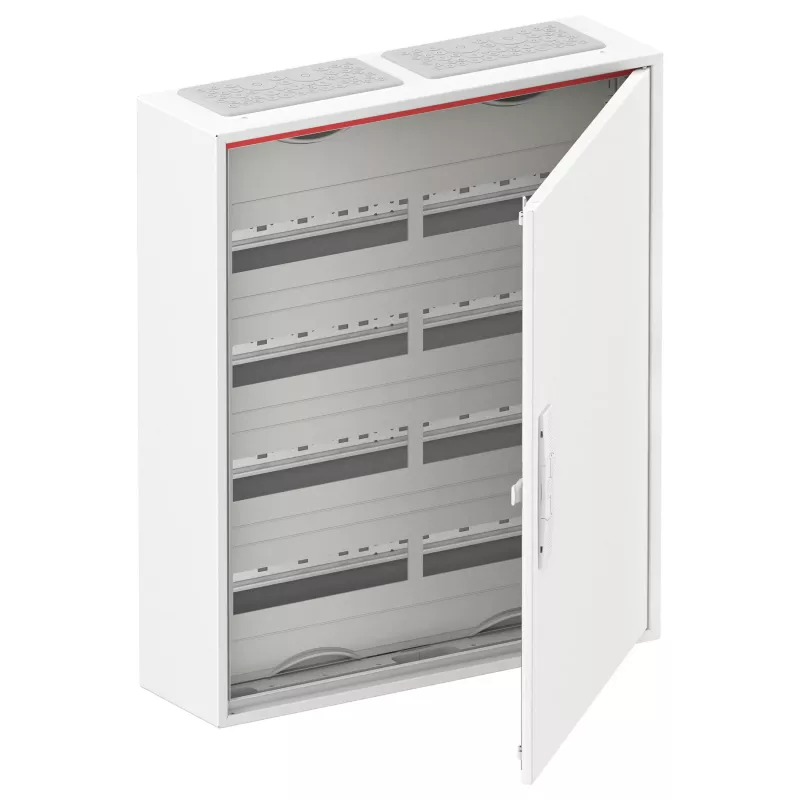

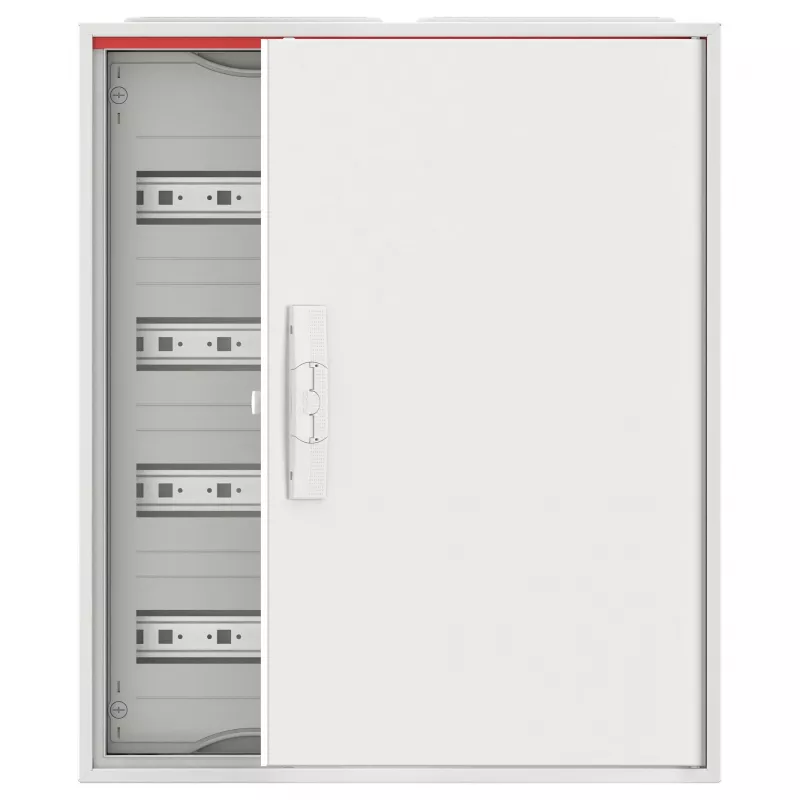

Striebel & John CA24V cuadro de distribución de superficie 4 filas 48 módulos IP31 blanco

The Striebel & John CA24V is a high-quality surface-mounted distribution board from the CA series, designed for reliable power distribution in residential and commercial installations. With 4 rows and 48 module spaces (12 per row), it offers ample capacity for circuit breakers, RCDs, and other DIN rail components. The enclosure is made of impact-resistant polystyrene (PS) with a transparent polycarbonate door, providing clear visibility of the installed devices while ensuring protection against dust and water jets (IP31). Rated for 400 V AC and 63 A, this distribution board meets DIN VDE 0603-1 and DIN 43871 standards. It includes pre-punched knockouts for cable entry on top, bottom, and sides, and comes with PE/N terminals for easy and safe wiring.

Advantages

Robust construction with IK07 impact resistance ensures durability in demanding environments. The transparent door allows quick visual inspection without opening the board. Halogen-free materials enhance safety in case of fire. The 4-row design provides flexibility for organizing circuits, and the included PE/N terminals simplify installation.

Suitable for

• Residential electrical distribution
• Commercial building installations
• Industrial control cabinets
• Renovation and new construction projects

Key specifications

• Mounting Type: Surface-mounted
• Number of Rows: 4
• Total Modules: 48 (12 per row)
• Protection Class: IP31
• Enclosure Material: Polystyrene (PS)
• Door Material: Polycarbonate (PC), transparent
• Rated Voltage: 400 V AC
• Rated Current: 63 A
• Colour: White (RAL 9010)
• Halogen-free: Yes
• Glow Wire Test: 650 °C
• Impact Resistance: IK07
• PE/N Terminals: Included (2x (4x16mm² + 14x10mm²))
• Standards: DIN VDE 0603-1, DIN 43871
• Cable Entry: Pre-punched knockouts (top, bottom, sides)

Recommendations

For optimal performance, use with Striebel & John compatible accessories and ensure installation by a qualified electrician. The board is designed for indoor use only.
