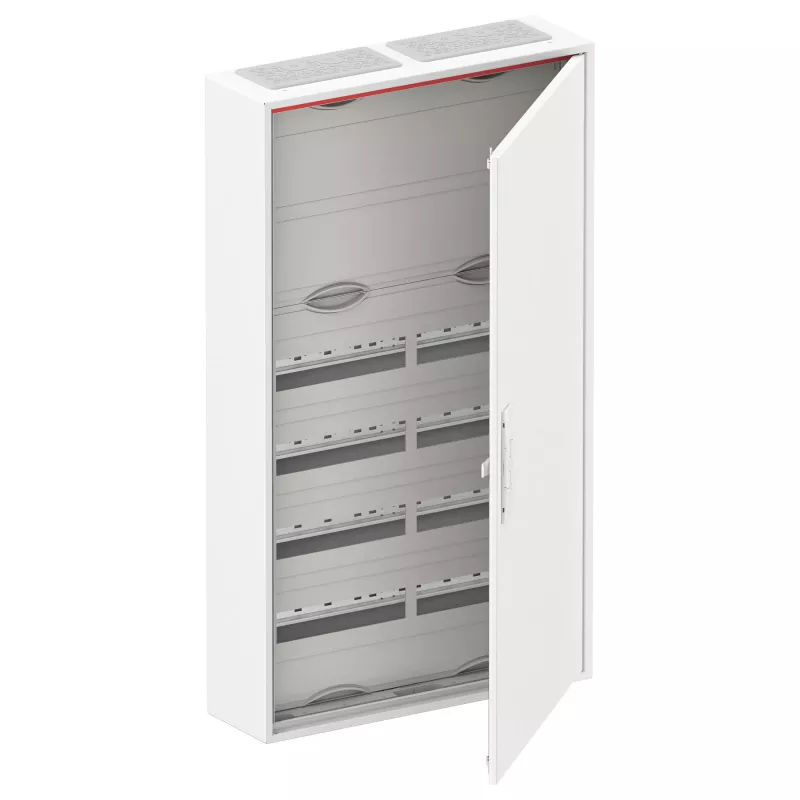

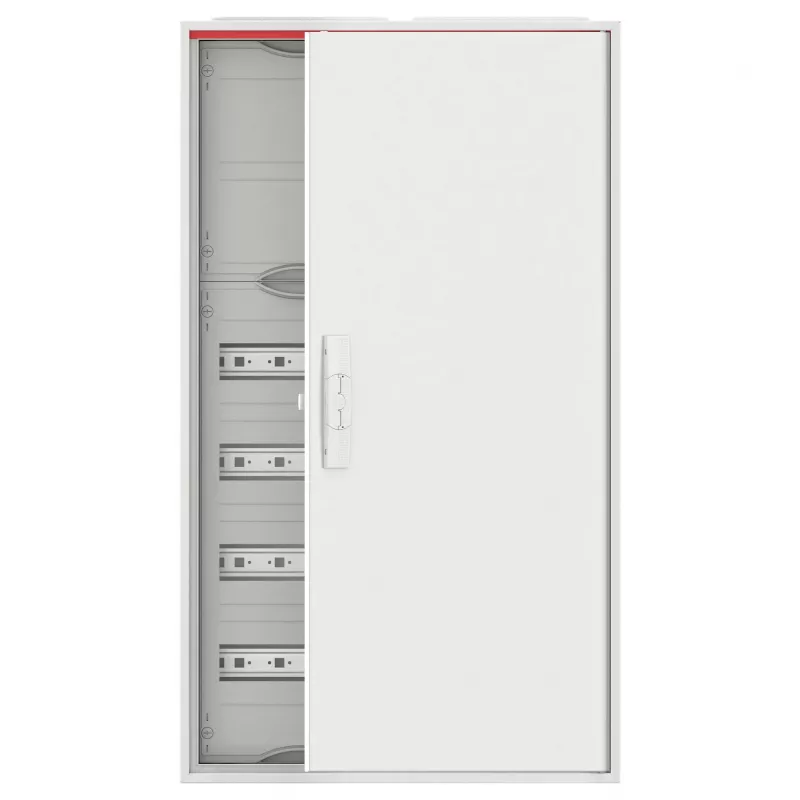

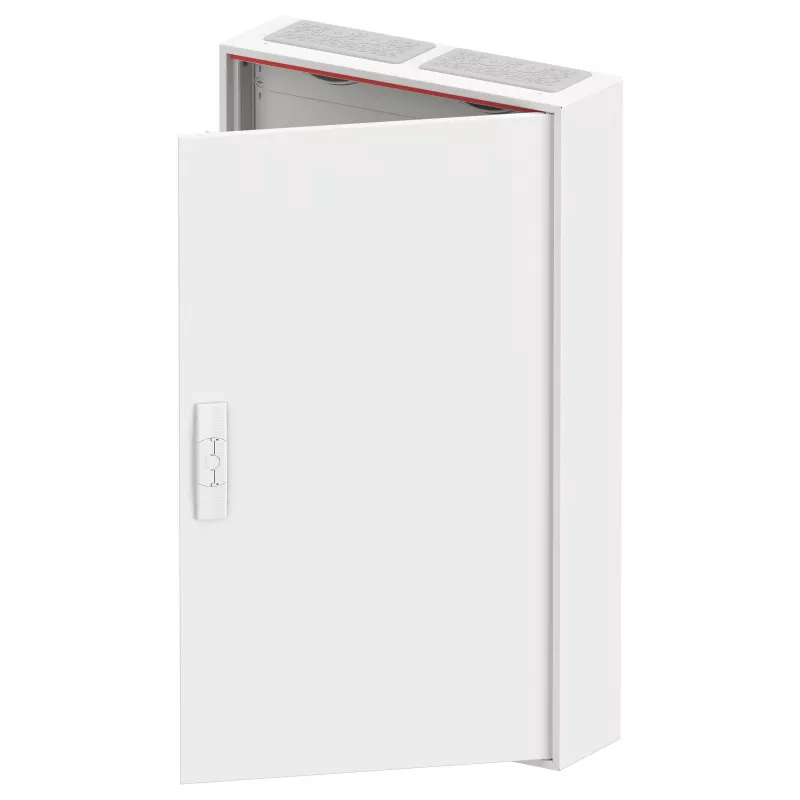

Striebel & John cuadro de distribución pequeño de superficie 2FB 6 filas CA26K

The Striebel & John Kleinverteiler Aufputz 2FB 6-reihig CA26K is a high-quality surface-mounted small distribution board from the ComfortLine CA series. Designed for efficient and safe electrical distribution, this consumer unit offers 6 rows with 12 modules per row, providing a total of 72 TE (module spaces). It is ideal for residential and commercial applications where reliable power distribution is required.

Advantages

Robust sheet steel enclosure with IP44 protection and IK07 impact resistance ensures durability in demanding environments. The opaque hinged door in white (RAL 9016) provides a clean, professional appearance. Pre-installed plug-in PE/N terminal blocks simplify installation and reduce wiring time.

Suitable for

• Surface-mounted electrical distribution in residential buildings
• Commercial installations requiring up to 63 A rated current
• Applications needing IP44 protection against splashing water

Key specifications

• Product Type: Small Distribution Board / Consumer Unit
• Mounting Type: Surface-mounted (Aufputz)
• Series: ComfortLine CA
• Number of Rows: 6
• Modules per Row (TE): 12
• Total Modules (TE): 72
• Enclosure Material: Sheet Steel
• Door Material: Sheet Steel
• Color: White (RAL 9016)
• Protection Class (IP): IP44
• Impact Protection (IK): IK07
• Rated Voltage: Up to 400 V AC
• Rated Current: Up to 63 A
• PE/N Terminal Blocks: Included (Plug-in type)
• Standards: DIN VDE 0603-1, DIN 43870-1
• Door Type: Opaque, hinged

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician and that all connections comply with local regulations. The CA26K is compatible with standard DIN rail components and accessories.
