Switch gestionado PLANET Layer 3 24 puertos 10/100/1000T Gigabit Ethernet 1U

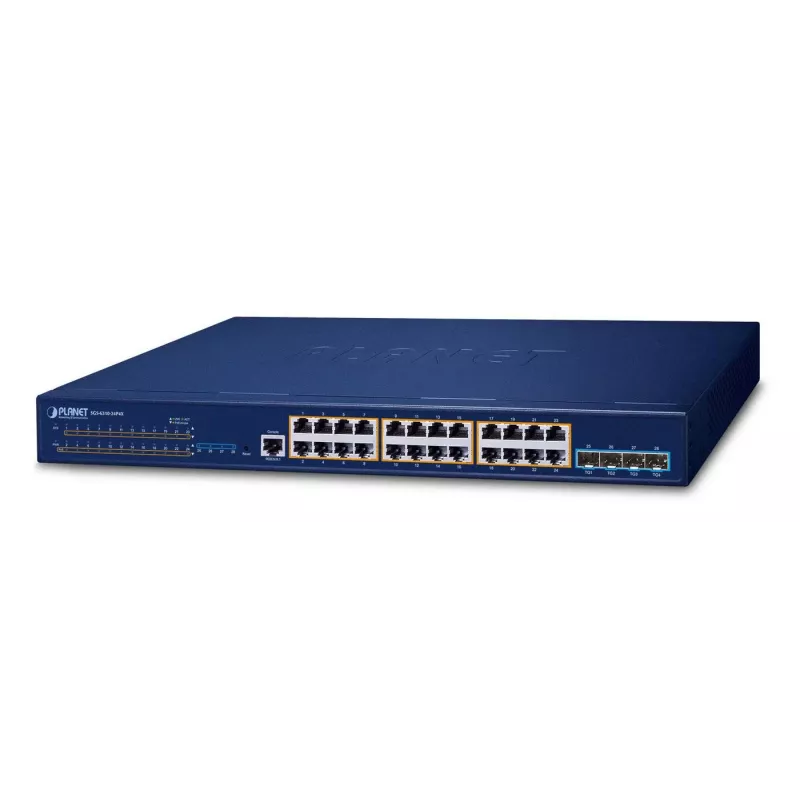

The PLANET SGS-6310-24P4X is a Layer 3 stackable managed Gigabit switch in a 1U rack-mountable chassis, offering 24 10/100/1000BASE-T RJ45 PoE+ ports and four 1G/10G SFP+ uplink ports with a 128 Gbps switching fabric and up to 370 W PoE budget. It provides Layer 3 IPv4/IPv6 static routing, RIP and OSPF dynamic routing, ERPS ring protection, comprehensive Layer 2/Layer 4 switching features and SFP+ dual-speed support for flexible network extension.

Advantages

The SGS-6310-24P4X delivers non-blocking wire-speed throughput with 10Gbps-capable SFP+ uplinks and a high-capacity switching fabric for heavy traffic environments. Centralized hardware stacking and redundant ring topologies enable hot-swap and fast recovery, while integrated PoE+ power management supplies up to 30 W per port and supports PoE scheduling for energy savings. The switch includes extensive security and management functions—ACLs, 802.1X, DHCP snooping, IP Source Guard, Dynamic ARP Inspection—and supports IPv6, multicast snooping and SFP-DDM diagnostics.

Suitable for

• Enterprise access or aggregation switches in campus and branch networks
• PoE deployments: IP cameras, VoIP phones and wireless access points
• Service providers and multi-tenant networks requiring VLANs and traffic control
• Environments needing high-availability stacks with fast ring recovery

Key specifications

• Model: PLANET SGS-6310-24P4X
• Ports: 24 x 10/100/1000BASE-T RJ45 PoE+; 4 x 1G/10G SFP+
• PoE: IEEE 802.3at PoE+ up to 30 W per port; total PoE budget up to 370 W
• Switch fabric: 128 Gbps (wire-speed throughput up to 80 Gbps noted in product materials)
• Layer 3: IPv4/IPv6 static routing, RIP, OSPF
• Stacking: virtual hardware stacking via SFP+ links; ERPS ring protection (G.8032) and MSTP
• Security & management: ACL L2–L4, 802.1X, RADIUS, DHCP Snooping, IP Source Guard, DAI, SNMPv3, SSH/SSL, Web/Telnet/console
• Multicast: IGMPv1/v2/v3 snooping, MLDv1 snooping, MVR
• SFP diagnostics: SFP-DDM support
• Standards: IEEE 802.3/802.3u/802.3ab/802.3z/802.3ae/802.3ad/802.1Q/802.1ad/802.1x/802.1p/802.1s/802.1w
• Form factor: 1U rack-mountable; weight ~3 kg; color: blue

How to use

Install the SGS-6310-24P4X in a standard 19-inch rack using the supplied mounting kit and connect uplink fiber or copper transceivers to the SFP+ ports. Connect powered devices to the RJ45 PoE+ ports. Configure the switch via the web GUI, CLI (console/Telnet) or SNMPv3 for remote management. Use the stacking feature by linking switches through the designated SFP+ ports and configure ERPS or MSTP for ring redundancy. Set up Layer 3 routing (static, RIP, or OSPF), VLANs, QoS and ACLs according to network design requirements.

Recommendations

The switch is recommended for deployments that require centralized PoE power and high uplink bandwidth; enable PoE scheduling to reduce power consumption for non-critical devices, configure ERPS or MSTP for fast failover, and use SFP-DDM to monitor transceiver health for reliable fiber links.
