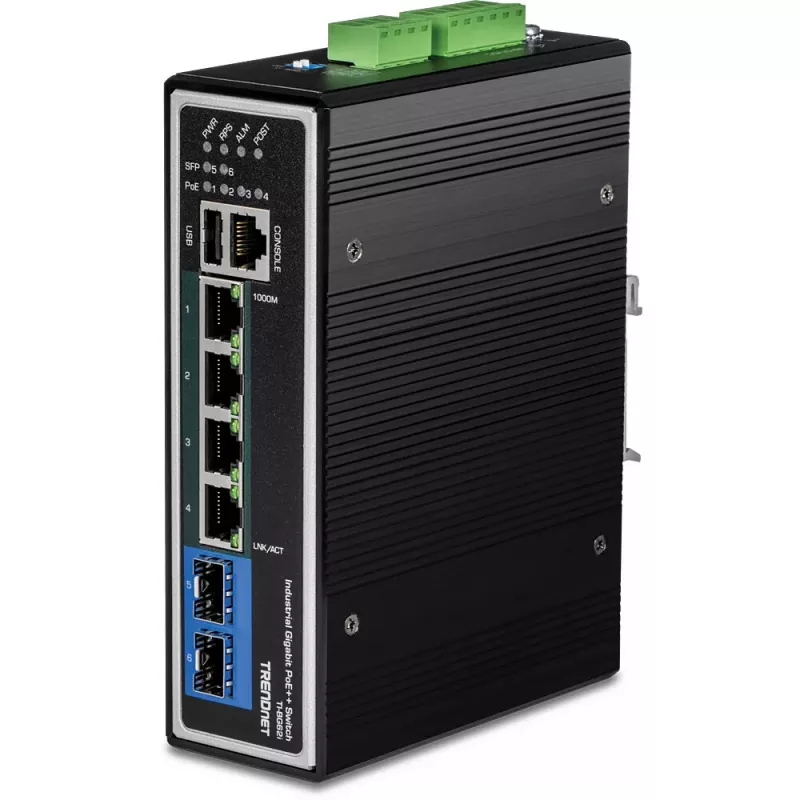

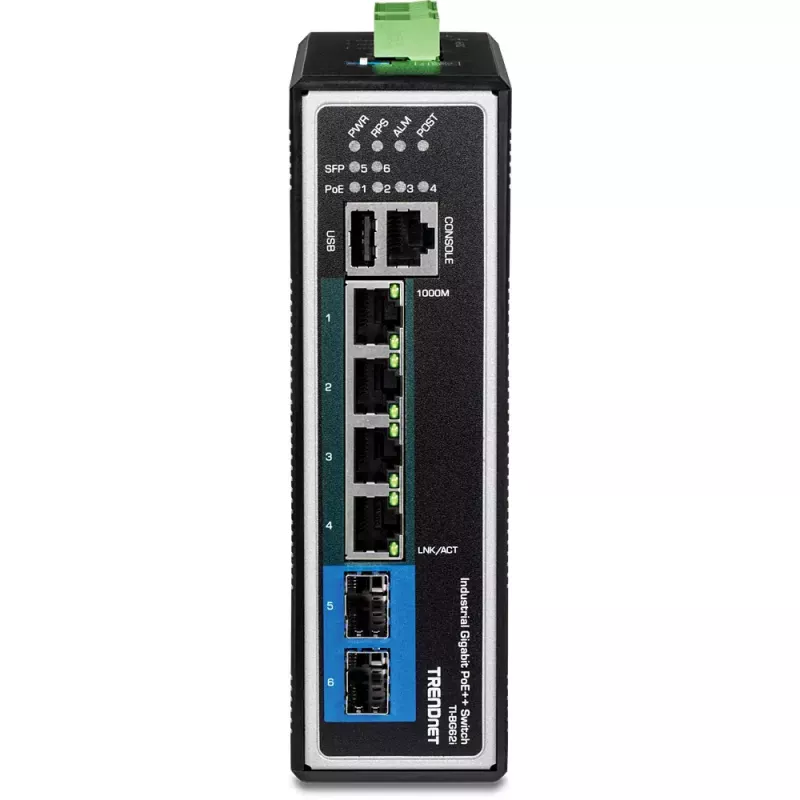

Switch gestionado Trendnet TI-BG62I L2+ Gigabit Ethernet PoE 4 puertos

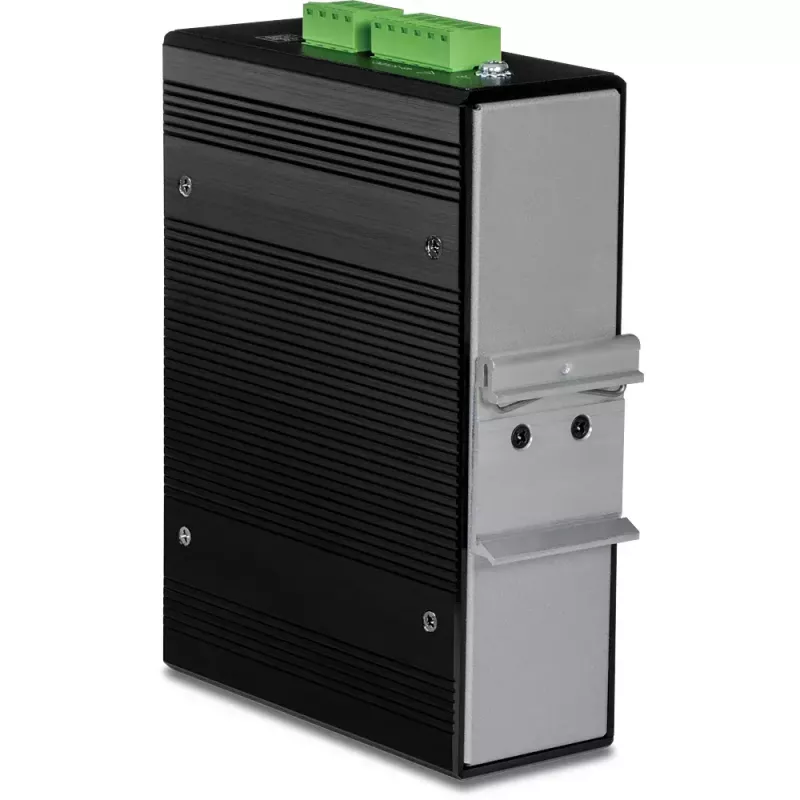

The TRENDnet TI-BG62I is an industrial L2+ managed Gigabit Ethernet switch with four Gigabit Ethernet RJ-45 ports and Power over Ethernet (PoE) functionality. Housed in an IP30-rated metal enclosure, the switch is designed for DIN-rail mounting and operation in harsh environments with an extended temperature range of -40° to 75° C. It offers SFP slots for fiber uplink and a switching capacity suitable for small and medium business network deployments.

Advantages

The TI-BG62I provides advanced L2+ management features including VLANs, LACP link aggregation, QoS, port bandwidth controls and SNMP monitoring via an intuitive web-based interface. Industrial-grade construction (IP30 metal housing) and wide operating temperature support increase reliability in industrial settings. Four PoE++ Gigabit ports with a 360W PoE budget and support for 802.3bt/at/af standards enable powered devices such as IP cameras or access points, while SFP slots support 1000Base-FX fiber modules for long-distance uplinks.

Suitable for

• Small and medium business networks requiring managed switching and PoE delivery
• Industrial sites needing DIN-rail mounting and wide temperature tolerance
• Deployments that require fiber uplinks or long-distance connections via SFP
• Environments where VLAN segmentation, QoS and SNMP monitoring are required

Key specifications

• Switch type: Managed L2+
• Ports: 4 x Gigabit RJ-45 (10/100/1000) with PoE++
• PoE power budget: 360W
• SFP: 2 x SFP slots (supports 1000Base-FX modules)
• MAC address table: 16,000 entries
• Switching capacity: 12 Gbit/s
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.3x, 802.3af/at/bt, 802.1p, 802.1Q, 802.1D, 802.1ab
• Enclosure: IP30 metal, DIN-rail mountable
• Operating temperature: -40° to 75° C
• Weight: 0.956 kg
• Colour: Black

How to use

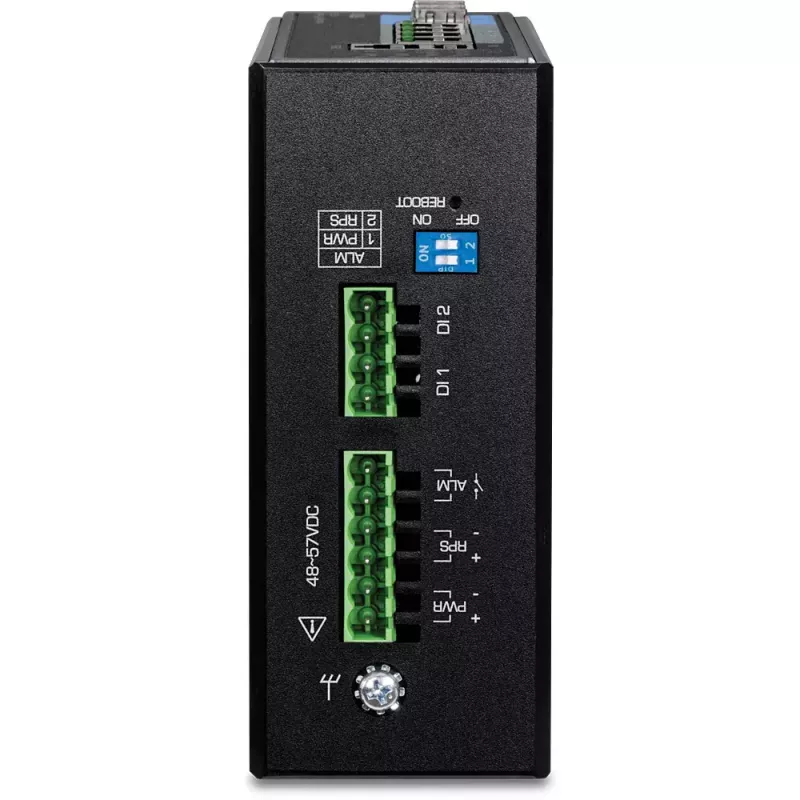

Mount the TI-BG62I on a DIN rail and connect power according to the installation guide. Attach network devices to the Gigabit RJ-45 PoE ports and, if required, insert SFP fiber modules into the SFP slots for uplink connections. Access the web-based management interface to configure VLANs, LACP groups, QoS policies, port bandwidth limits and SNMP settings. Monitor PoE power allocation and device status from the management console.

Recommendations

For stable operation in industrial environments, use shielded Ethernet cabling where appropriate, verify PoE power requirements of connected devices against the 360W budget, and keep firmware updated. Configure VLANs and QoS to separate and prioritize critical traffic such as surveillance or control systems.
