Switch no gestionado PLANET IP30 Ind 8-P 10/100/1000T

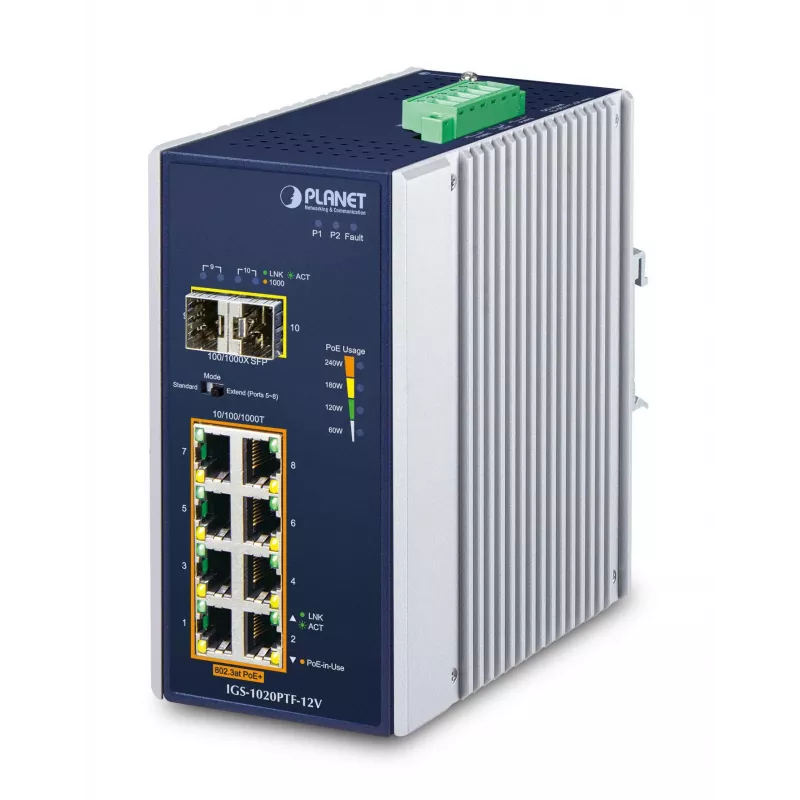

The PLANET IGS-1020PTF-12V is an industrial-grade unmanaged Gigabit Ethernet PoE+ switch with eight 10/100/1000BASE-T ports and two 100/1000BASE-X SFP fiber uplink slots. Housed in an IP30 aluminum case and supporting a wide DC input range (12–56 V) with redundant power capability, the switch provides up to 240 W total PoE budget, operates from -40 to 75 °C, and is designed for installation on DIN-rail or wall mounting in hardened environments.

Advantages

This switch delivers full IEEE 802.3at PoE+ power across eight Gigabit copper ports while also offering two SFP slots for flexible fiber uplink and long-distance extension. Its wide DC input and built-in power boost (12–56 V to ~54–56 V) support common industrial power sources without special PSUs. The unit’s fanless aluminum IP30 housing provides EMI immunity and silent operation, and integrated ESD and surge protection improve stability in harsh operational environments. A front-panel LED array shows incremental PoE power usage (60 / 120 / 180 / 240 W) for easy monitoring.

Suitable for

• IP camera systems and surveillance PoE deployments
• Traffic control cabinets and transportation networks
• Factory floor automation and industrial control networks
• Long-distance uplink requirements using SFP fiber modules

Key specifications

• Model: IGS-1020PTF-12V (PLANET)
• Ports: 8 × 10/100/1000BASE-T (PoE+), 2 × 100/1000BASE-X SFP
• PoE standard: IEEE 802.3at (PoE+), backward compatible with IEEE 802.3af
• Total PoE budget: up to 240 W
• Switching capacity: 20 Gbit/s
• MAC table: 8000 entries
• Input voltage: 12–56 V DC (internal boost to ~54–56 V DC)
• Operating temperature: -40 to 75 °C
• Housing: IP30 aluminum, fanless
• Weight: 1.164 kg

How to use

Mount the switch on a DIN rail or fasten it to a wall enclosure in a suitable industrial location. Connect one or two DC power sources to the redundant power inputs using the manufacturer’s wiring guidelines. Insert SFP transceivers into the mini-GBIC slots if fiber uplinks are required, selecting multimode or single-mode modules according to needed distance and speed. Plug PoE-powered devices into the RJ-45 ports; choose the front-panel DIP switch “Standard” mode for normal Gigabit PoE+ operation or “Extend” mode to enable 10 Mbps full-duplex operation per port and support longer UTP cable runs (up to 250 m) with reduced per-port PoE output.

Recommendations

For reliable PoE delivery in industrial setups, use appropriate gauge DC cabling and provide dual or backup power sources. Select SFP modules that match fiber type and distance requirements, and verify total PoE load to avoid exceeding the 240 W budget.
