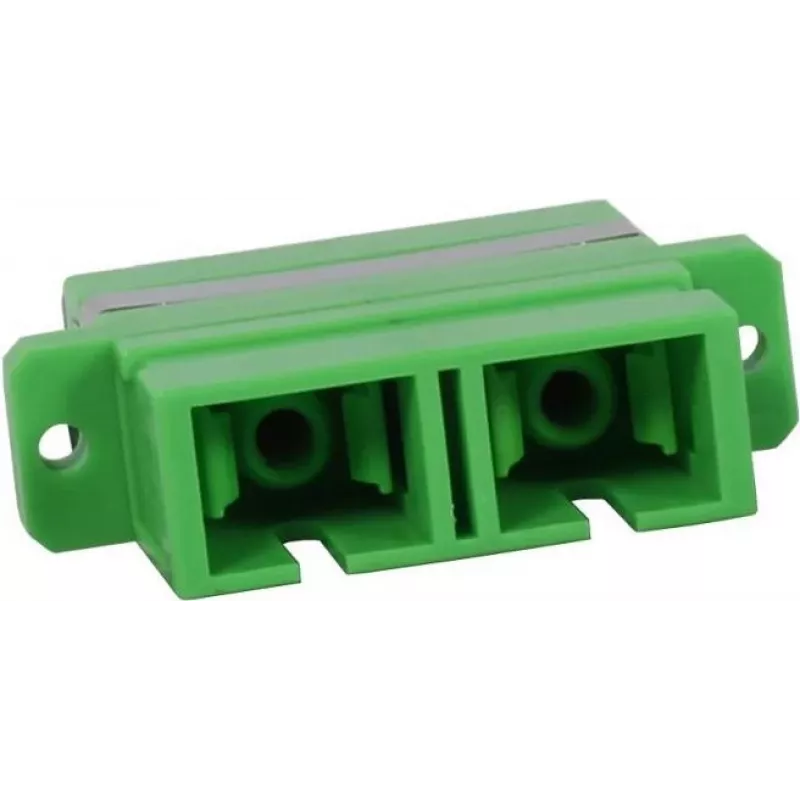

SYNERGY21 acoplador de fibra óptica SC/APC hembra a SC/APC hembra monomodo dúplex OS2 9/125µm PVC verde

The SYNERGY21 Fiber Optic Coupler S215561 is a high-quality SC/APC duplex adapter designed for singlemode fiber optic networks. It enables precise and low-loss connection between two SC/APC patch cables, ensuring reliable signal transmission in OS2 applications. The coupler features ceramic alignment sleeves for optimal performance and durability.

Advantages

This coupler provides a secure and stable connection for singlemode fibers, minimizing insertion loss and back reflection. The APC polish ensures superior signal integrity, making it ideal for high-bandwidth and long-distance networks. The green PVC housing is robust and easy to identify.

Suitable for

• Connecting SC/APC singlemode duplex fiber optic cables
• Fiber optic patch panels and distribution frames
• Telecommunications and data center infrastructure
• FTTx and CATV networks

Key specifications

• Connector Type: SC/APC Female to SC/APC Female
• Fiber Mode: Singlemode (OS2)
• Core/Cladding Diameter: 9/125 µm
• Configuration: Duplex
• Ferrule Material: Ceramic
• Housing Material: PVC
• Color: Green
• Polish: APC (Angled Physical Contact)
• Quantity: 1 piece

Recommendations

For optimal performance, use with SYNERGY21 singlemode patch cables and ensure clean connections before mating. Suitable for indoor installations where low insertion loss is critical.
