Telegärtner Acoplamiento rápido N hembra a N macho J01024A0010

This N-type coupler delivers a VSWR of ≤1.25 up to 6 GHz, ensuring minimal signal reflection for high-frequency applications.

Overview

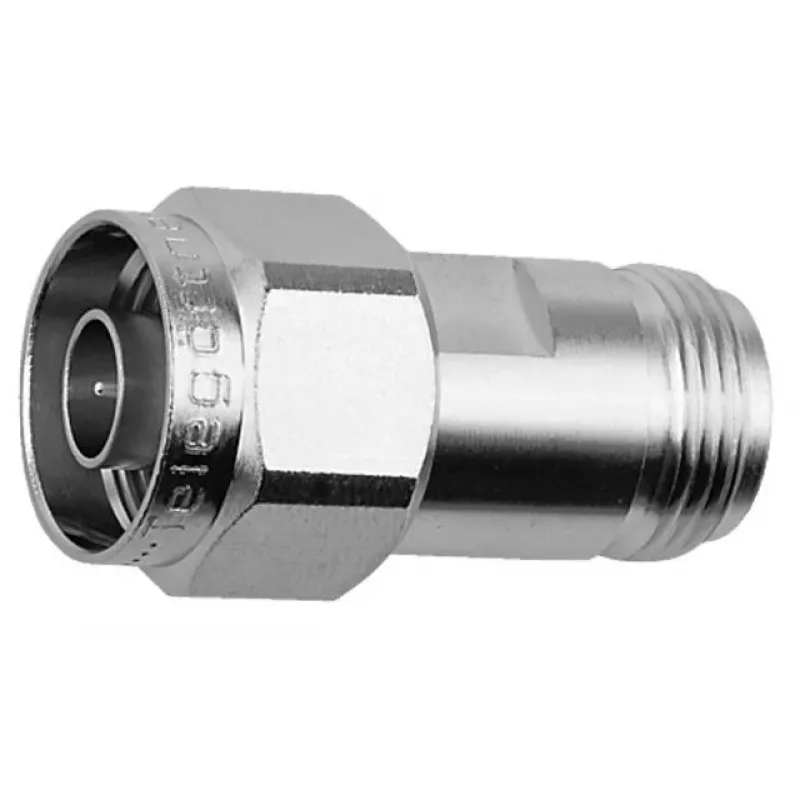

The Telegärtner J01024A0010 is an N-type female to N-type male adapter with a quick-screw coupling mechanism. It is designed for 50 Ω systems and operates from DC to 11 GHz, making it suitable for a wide range of RF and microwave applications.

What stands out

• Quick-screw coupling for fast and secure connections
• Low insertion loss: ≤0.05 dB up to 6 GHz
• Wide operating temperature range: -40°C to +85°C
• High mating cycle durability: ≥500 cycles

Technical details

• Connector 1: N-Type Female
• Connector 2: N-Type Male
• Impedance: 50 Ω
• Frequency range: DC to 11 GHz
• VSWR: ≤1.25 (DC-6 GHz), ≤1.35 (6-11 GHz)
• Insertion loss: ≤0.05 dB (DC-6 GHz), ≤0.1 dB (6-11 GHz)
• Dielectric withstanding voltage: 2.5 kVeff
• Insulation resistance: ≥5 GΩ
• Body material: Brass, nickel-plated
• Center contact material: Brass, gold-plated
• Insulator material: PTFE

Our verdict

An excellent choice for professionals needing a reliable, low-loss N-type connection with quick-screw convenience.
