Telegärtner conector macho acodado 7-16 DIN, 50 ohmios, plateado, conexión por bornes J01120C0010

With a VSWR of ≤ 1.20 at 6 GHz, this 7-16 DIN angled plug delivers low-reflection RF performance up to 7.5 GHz. The silver-plated contacts and PTFE dielectric ensure minimal insertion loss and high durability.

Overview

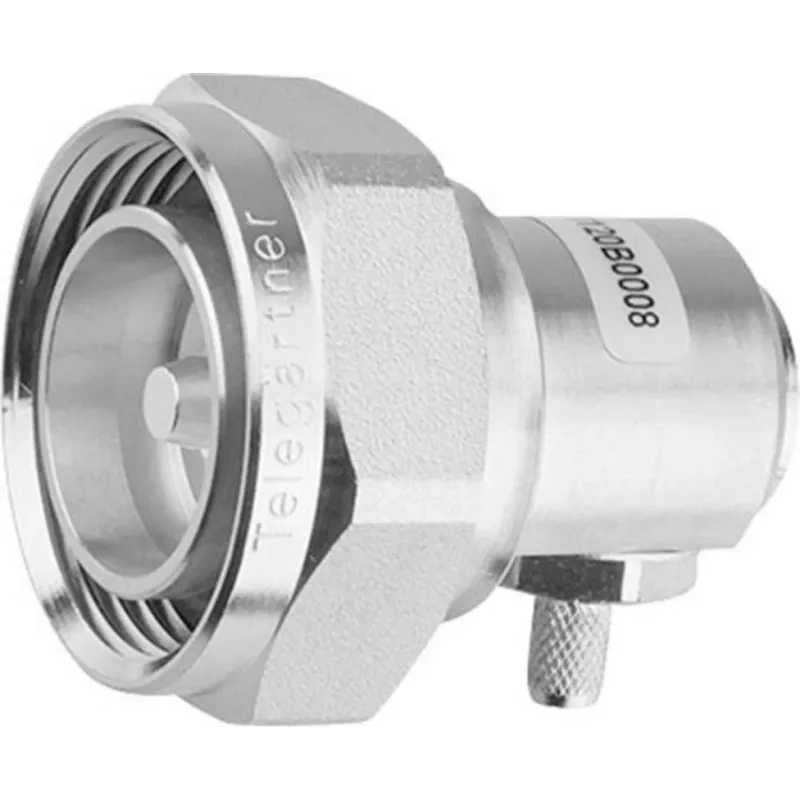

The Telegärtner J01120C0010 is a right-angle 7-16 DIN male connector with 50 Ohm impedance. It is designed for clamp attachment to cables in group G37, including LMR-400, HLF 400, CNT-400, RG 213/U, RG 214/U, and RG 8/U. The connector is IP68 rated when mated, making it suitable for harsh environments.

What stands out

• Angled body for tight installations
• Silver-plated contacts for low resistance
• PTFE dielectric for stable performance
• Wide temperature range: -55 °C to +155 °C
• Mating cycles: ≥ 500

Technical details

• Connector Series: 7-16 DIN
• Connector Type: Plug (Male)
• Body Style: Angled (Right Angle)
• Impedance: 50 Ohm
• Cable Attachment Method: Clamp
• Compatible Cable Group: G37 (LMR-400, HLF 400, CNT-400, RG 213/U, RG 214/U, RG 8/U)
• Frequency Range: DC - 7.5 GHz
• VSWR (max): ≤ 1.20 @ 6 GHz
• Insertion Loss (max): ≤ 0.05 dB @ 1 GHz
• Dielectric Withstanding Voltage: 4 kVeff
• Insulation Resistance: ≥ 10 GΩ
• Center Contact Resistance: ≤ 0.4 mΩ
• Outer Contact Resistance: ≤ 0.4 mΩ
• Contact Plating: Silver
• Body Plating: Silver
• Dielectric Material: PTFE
• Operating Temperature Range: -55 °C to +155 °C
• Environmental Sealing: IP68 (mated)
• Mating Cycles: ≥ 500

Our verdict

A high-performance angled 7-16 DIN connector built for demanding RF applications. Its silver plating and PTFE dielectric ensure excellent signal integrity, while the IP68 sealing provides reliable outdoor use.
