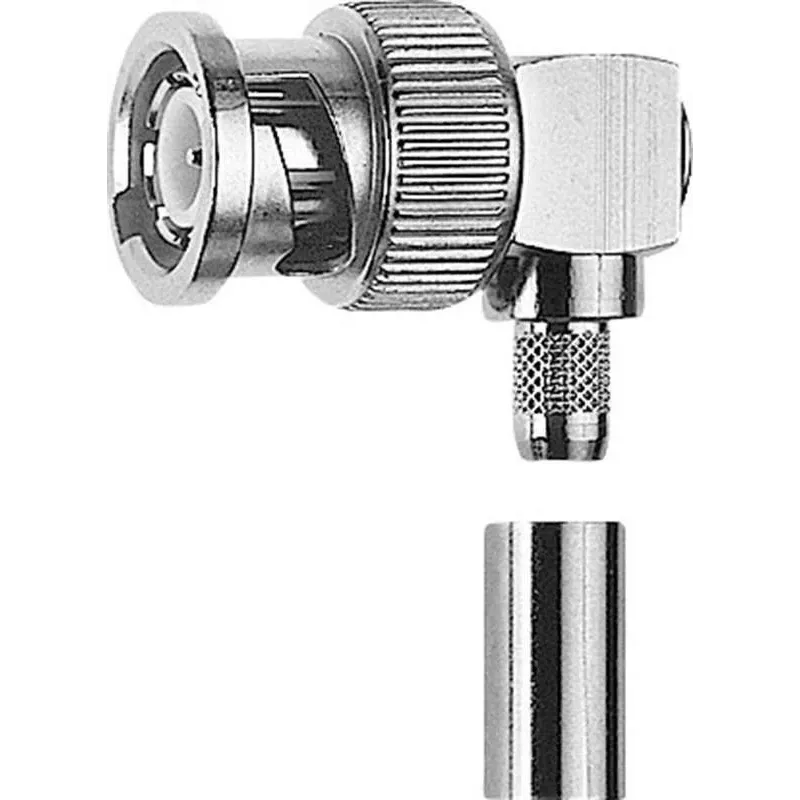

Telegärtner conector macho BNC acodado de crimpado 75 ohmios, RG-179B/U, G04 J01002A0027

This BNC right-angle plug stands out by combining crimp termination for the outer conductor with solder termination for the inner conductor, ensuring a secure and reliable connection for 75-ohm coaxial cables in tight spaces. Its angled design is particularly useful where straight connectors would create excessive cable bend or space constraints.

Highlights

• Right-angle BNC plug for 75-ohm systems
• Crimp outer conductor, solder inner conductor for robust termination
• Compatible with RG-179B/U, RG-187A/U, RG-316, RG-316D, and EN 50117 C04 cables
• Nickel-plated brass body, gold-plated brass contact, PTFE insulator
• Frequency range DC to 1 GHz with return loss ≥ 26 dB

In daily use

Installers in video, broadcast, CCTV, and RF applications will appreciate the compact right-angle profile, which allows neat cable routing behind equipment or in confined cabinets. The crimp/solder combination provides a durable connection that resists pull-out and maintains signal integrity.

Full specifications

• Connector type: BNC
• Connector style: Right-angle plug
• Impedance: 75 Ohm
• Termination: Crimp (outer), solder (inner)
• Cable group: G04
• Compatible cables: RG-179B/U, RG-187A/U, RG-316, RG-316D, EN 50117 C04, EN 50117 C04-2
• Body material: Brass, nickel plated
• Contact material: Brass, gold plated
• Insulator: PTFE
• Frequency range: DC to 1 GHz
• Return loss: ≥ 26 dB @ 1 GHz
• Dielectric withstanding voltage: 1500 Veff
• Operating temperature: -40 °C to +85 °C

Final note

A professional-grade connector for reliable 75-ohm RF connections in space-constrained installations.
