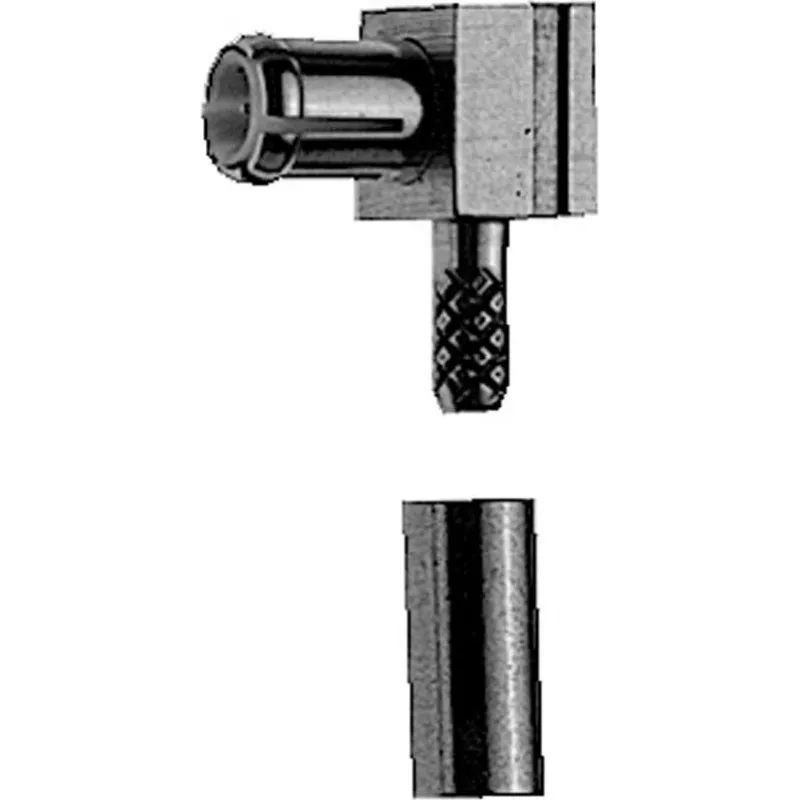

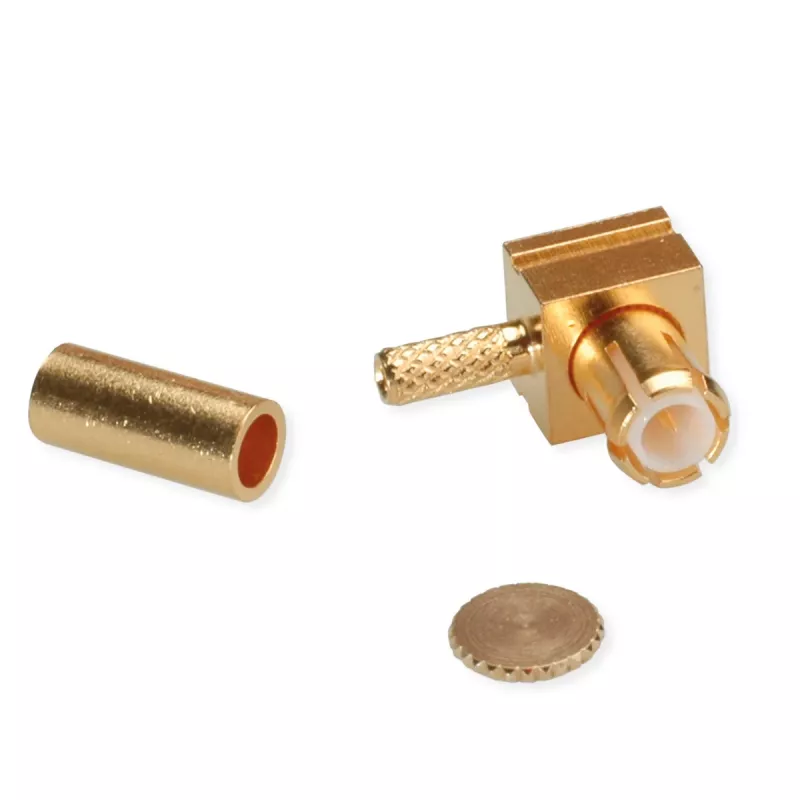

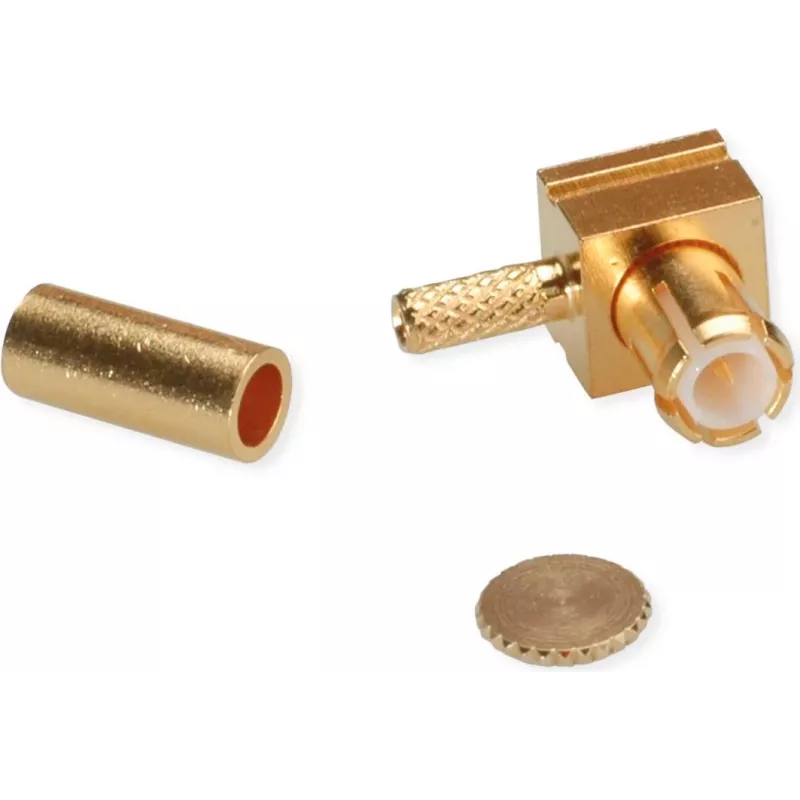

Telegärtner Conector macho MCX en ángulo crimp para RG-178 B/U, dorado, pack de 5 (J01270A0201)

Engineered for precision RF connectivity up to 6 GHz, this Telegärtner MCX right-angle crimp plug delivers reliable signal integrity in a compact form factor. The gold-plated body and center contact ensure low contact resistance and excellent corrosion resistance, making it ideal for demanding coaxial applications.

Overview

The Telegärtner MCX cable plug (model 100024981) is designed for RG-178 B/U coaxial cable, belonging to cable group G03. It features a right-angle body orientation, allowing for space-efficient routing in tight enclosures. The crimp attachment method provides a secure, durable connection without soldering. With a 50 Ohm impedance and a frequency range from DC to 6 GHz, this connector is suited for a wide range of RF applications, including telecommunications, instrumentation, and wireless systems.

What stands out

• Right-angle design for compact installations
• Gold-plated contacts and body for superior conductivity
• Crimp termination for quick, reliable assembly
• Supports frequencies up to 6 GHz
• Pack of 5 connectors for convenience

Technical details

• Connector series: MCX
• Gender: Plug (Male)
• Body orientation: Right-angle
• Cable attachment method: Crimp
• Impedance: 50 Ohm
• Compatible cable type: RG-178 B/U
• Compatible cable group: G03
• Frequency range: DC to 6 GHz
• Contact plating: Gold
• Body plating: Gold
• Insulator material: PTFE
• Voltage rating: 335 Veff
• Dielectric withstanding voltage: 750 Veff
• VSWR (max): 1.3 @ 6 GHz
• Durability: 500 mating cycles
• Operating temperature: -55°C to +155°C
• Pack quantity: 5 pieces

Our verdict

A professional-grade MCX connector that combines high-frequency performance with robust construction. The gold plating and PTFE insulation ensure long-term reliability, while the right-angle design and crimp termination make installation straightforward. Ideal for technicians and engineers needing dependable RF connections.
