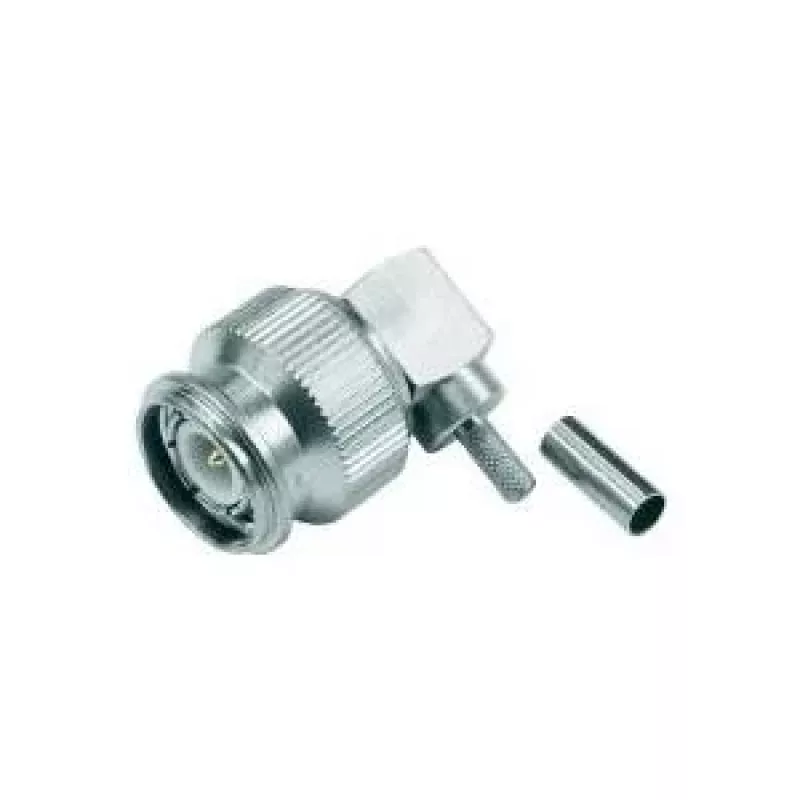

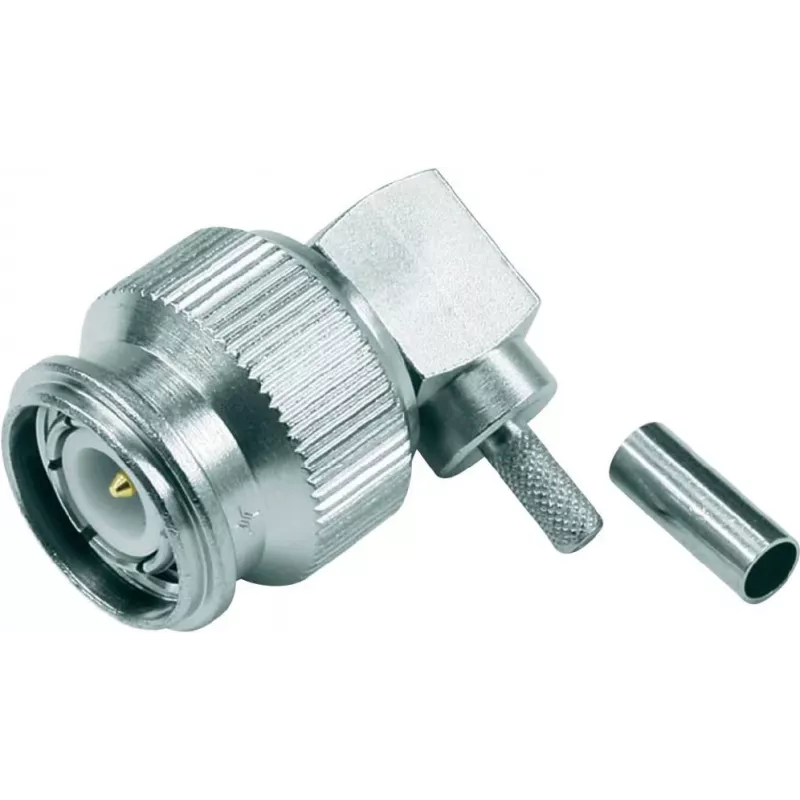

Telegärtner Conector macho TNC acodado de crimp, 50 ohmios para RG-316/U, conexión soldada/crimp, latón niquelado J01010B0012

Engineered for reliable RF connections up to 6 GHz, this TNC right-angle plug features a 50 Ohm impedance and a robust nickel-plated brass body. The centre contact is gold-plated and terminates by solder or crimp, while the outer conductor uses a crimp connection for secure cable retention. Designed for RG-316/U cable (group G07), it is suitable for demanding coaxial applications.

Overview

The Telegärtner J01010B0012 is a male TNC connector with a right-angle body, ideal for installations where space is limited. It provides a threaded coupling mechanism for vibration-resistant mating and operates across a wide temperature range from -55°C to +155°C. The PTFE insulation ensures low loss and stable performance.

What stands out

• Right-angle design for tight spaces
• Gold-plated centre contact for low contact resistance
• Nickel-plated brass body for durability and corrosion resistance
• Supports RG-316/U and other G07 cables
• Frequency range up to 6 GHz

Technical details

• Connector type: TNC male (plug)
• Impedance: 50 Ohm
• Mounting type: Cable mount
• Outer conductor termination: Crimp
• Centre conductor termination: Solder / Crimp
• Compatible cable: RG-316/U (group G07)
• Body material: Brass, nickel-plated
• Centre contact material: Brass, gold-plated
• Insulation material: PTFE
• Coupling mechanism: Threaded
• Frequency range: DC to 6 GHz
• Voltage rating: 500 V (rms)
• Operating temperature: -55°C to +155°C
• Packaging: 1 piece

Our verdict

A precision TNC connector built for professional RF installations, offering reliable performance and easy assembly with crimp and solder terminations.
