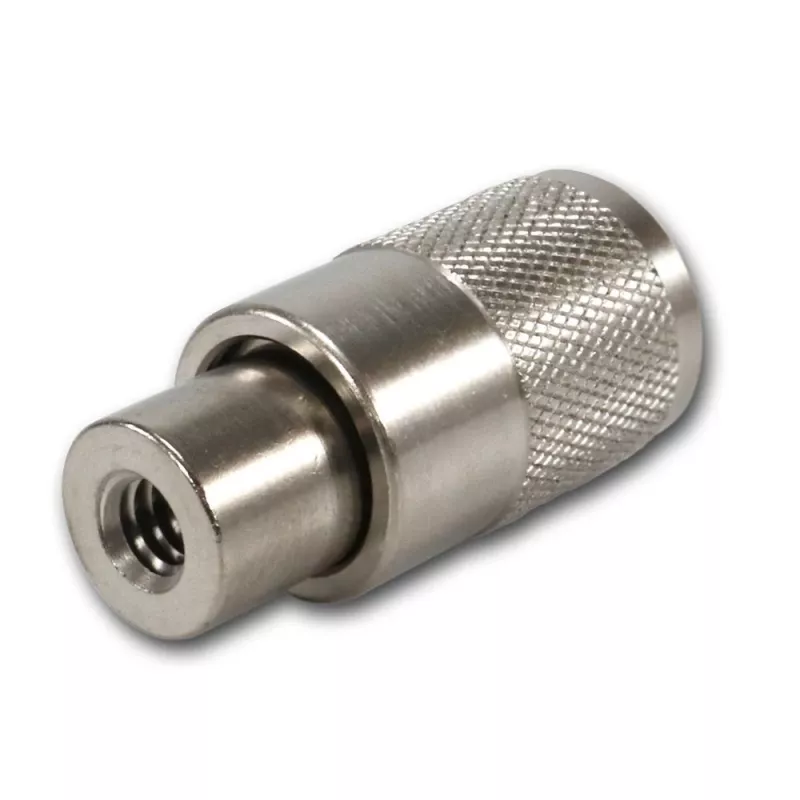

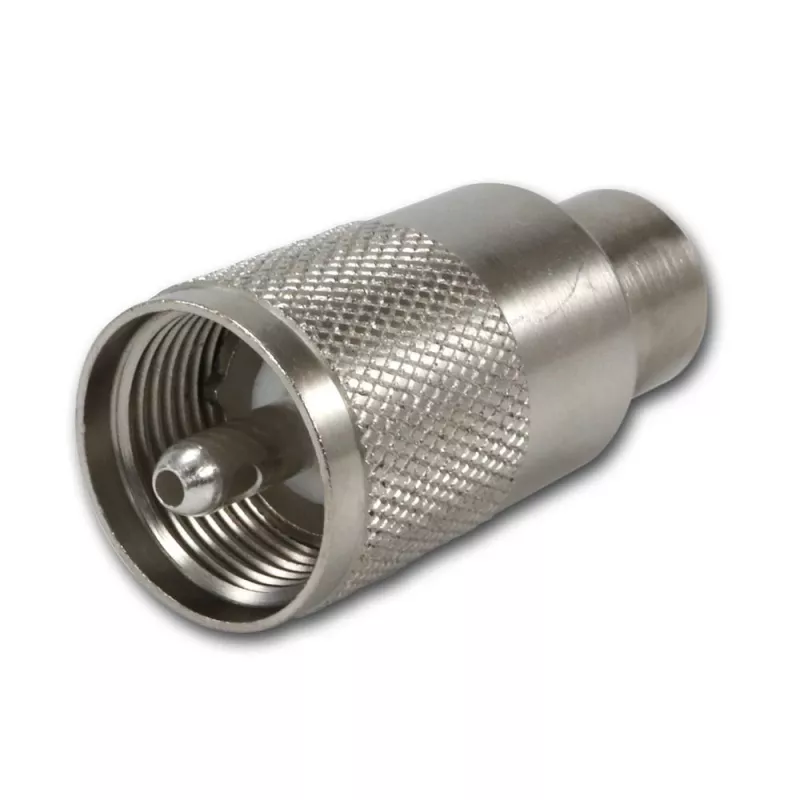

Telegärtner Conector macho UHF PL259/6 para RG-58 C/U y RG-59 B/U, aislamiento de PTFE, carcasa niquelada, contacto plateado, pack de 5 (J01040B0604)

This UHF plug (PL259) from Telegärtner delivers reliable RF connectivity for coaxial cables RG-58 C/U and RG-59 B/U. Its PTFE insulation ensures stable performance across a wide temperature range, while the nickel-plated body and silver-plated contact provide excellent conductivity and corrosion resistance.

Advantages

The PTFE dielectric maintains consistent impedance and low loss up to 300 MHz. Solder termination of both center conductor and braid results in a robust, durable connection suitable for demanding RF applications.

Suitable for

• Amateur radio and CB installations
• Test and measurement setups
• RF communication systems using RG-58 or RG-59 cable

Key specifications

• Connector type: UHF plug (PL259), male
• Compatible cables: RG-58 C/U, RG-59 B/U
• Insulation: PTFE
• Impedance: 50 Ω
• Frequency range: DC to 300 MHz
• Voltage rating: 500 V peak
• Operating temperature: -40°C to +85°C
• Body plating: Nickel
• Contact plating: Silver
• Termination: Solder (center and braid)

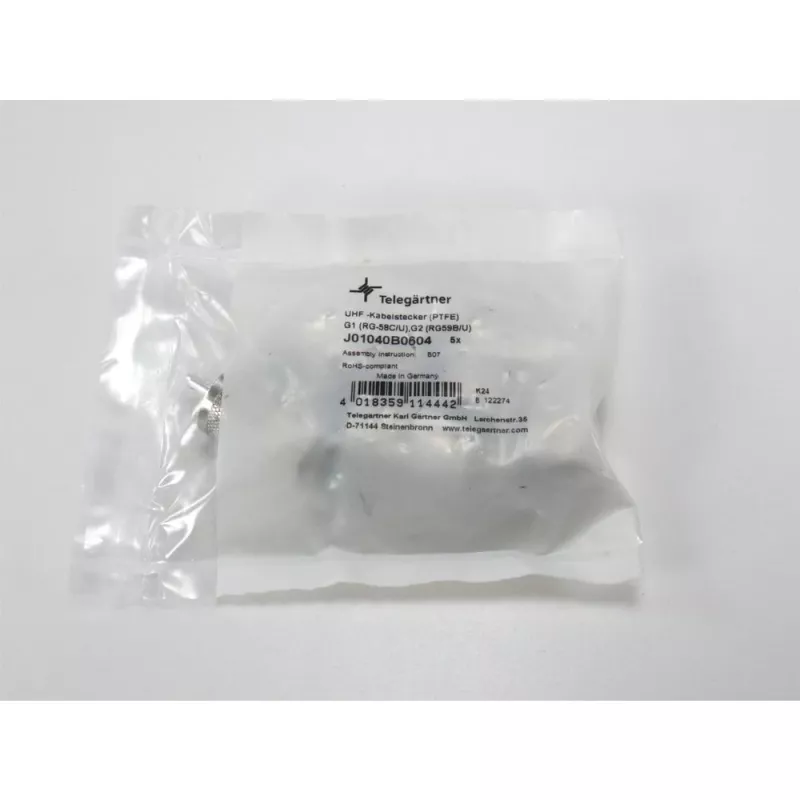

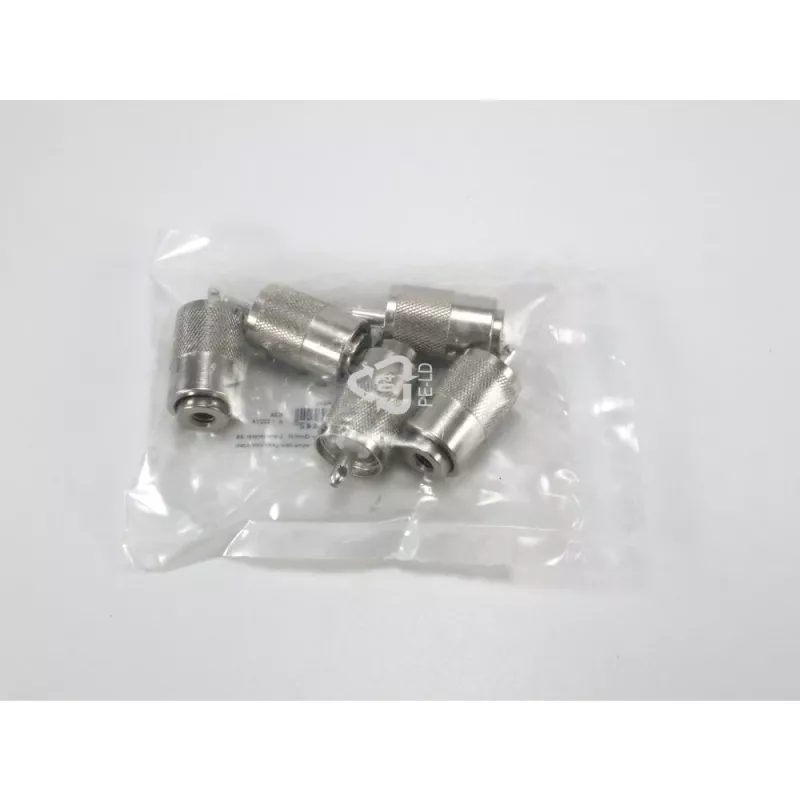

• Pack size: 5 pieces

Recommendations

For best results, use a temperature-controlled soldering iron and appropriate solder for PTFE-insulated connectors. Ensure proper cable stripping dimensions to maintain impedance and mechanical strength.
