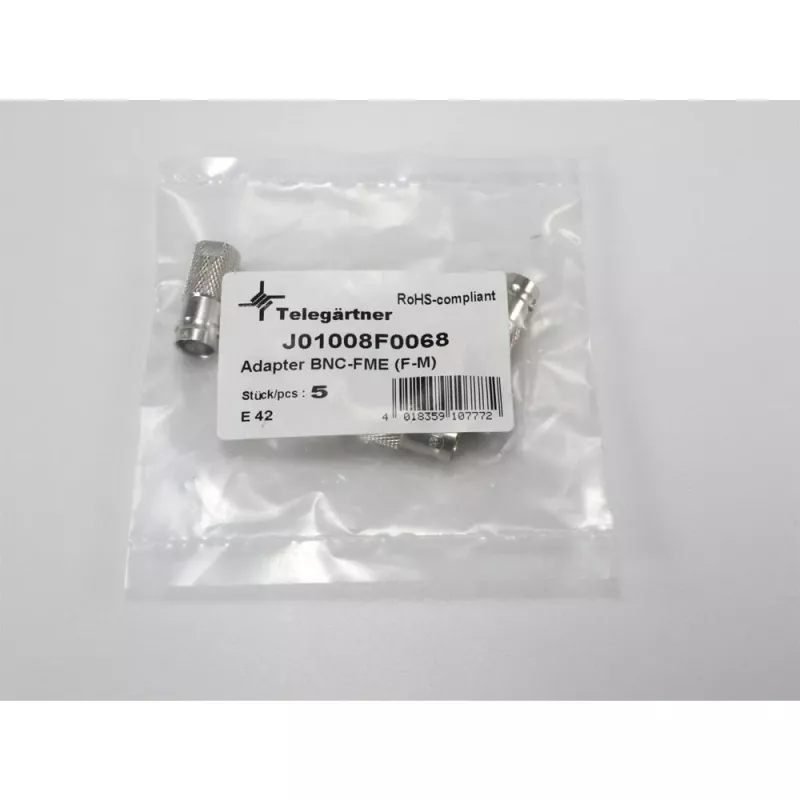

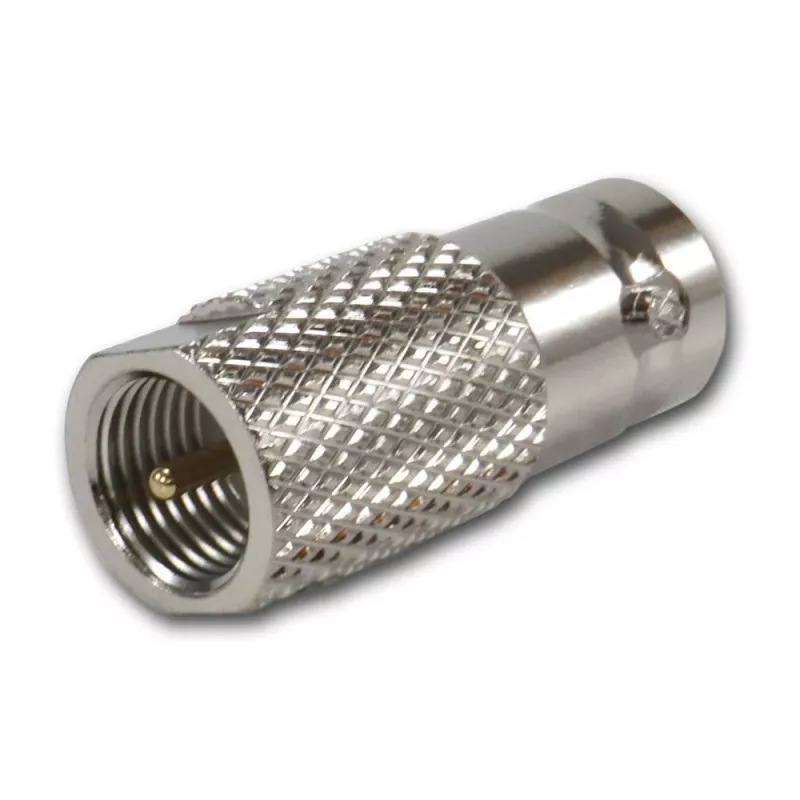

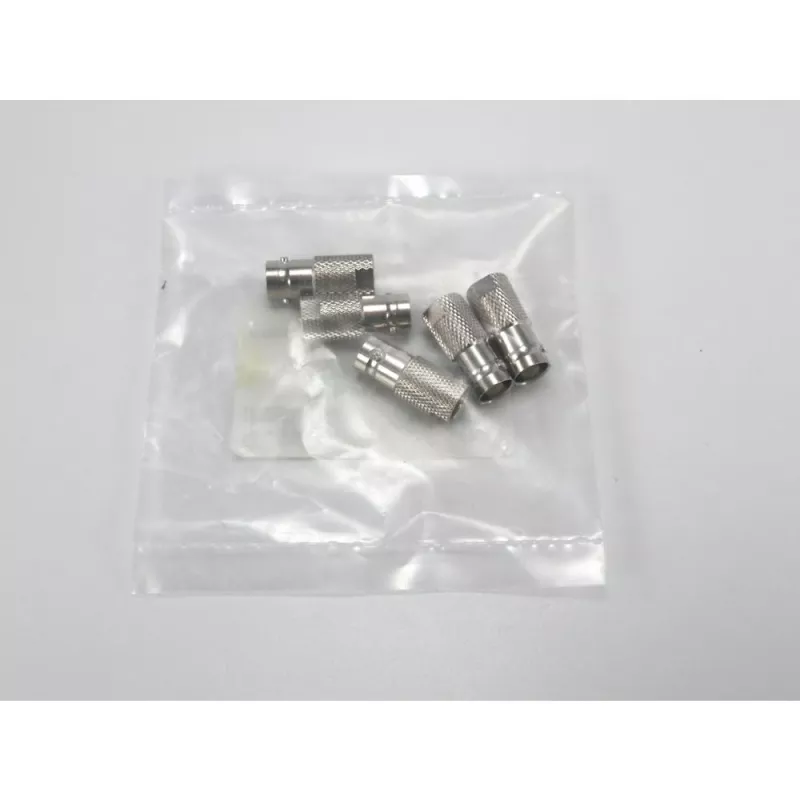

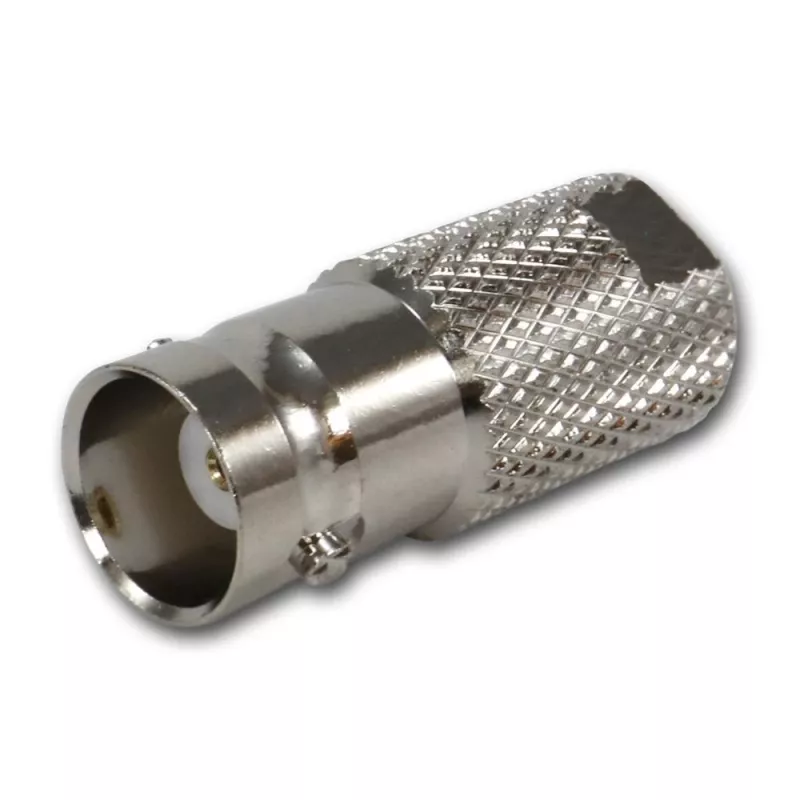

TELEGÄRTNER J01008F0068 Adaptador coaxial BNC hembra a FME macho, 50 ohmios, recto, latón niquelado

For RF technicians and radio installers who need to bridge BNC and FME interfaces, this TELEGÄRTNER coaxial adapter provides a reliable 50 Ohm transition. The BNC jack (female) to FME plug (male) design is straight-bodied and made from nickel-plated brass with gold-plated contacts, ensuring low loss and stable connections in professional setups.

Key specifications

• Connector 1: BNC jack (female)
• Connector 2: FME plug (male)
• Impedance: 50 Ohm
• Body material: Brass, nickel-plated
• Contact material: Brass, gold-plated
• Insulation: PTFE
• Frequency range: DC to 4 GHz
• VSWR: < 1.2 @ 1 GHz, < 1.3 @ 2 GHz
• Operating temperature: -40 °C to +85 °C

Why choose it

The adapter combines durable construction with precise impedance matching, making it suitable for demanding RF applications. Gold-plated center contacts resist corrosion and maintain signal integrity over time.

Ideal use cases

• Connecting test equipment with BNC ports to FME-terminated cables
• Adapting antennas or RF modules in communication systems
• Field service kits where mixed connector types are common

Good to know

This adapter is a single unit, sold individually. Its compact straight design allows easy integration into existing setups without additional cabling.
