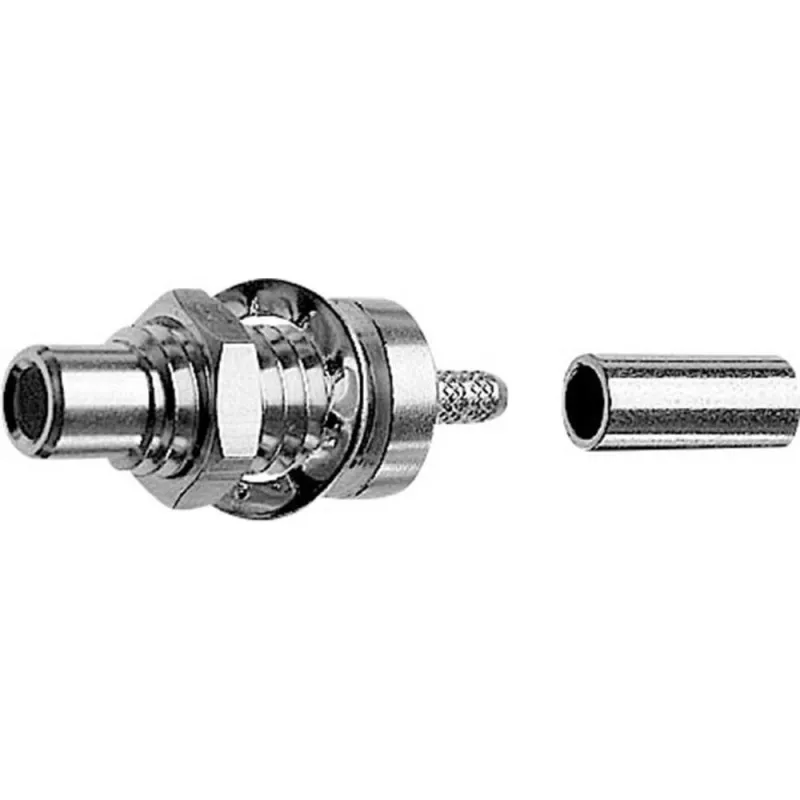

Telegärtner SMC conector, embutido, 50 ohmios, conexión por soldadura, carcasa niquelada, contacto interior dorado J01170A0151

RF technicians and radio amateurs use this SMC plug connector when building or repairing panel-mounted coaxial connections in compact communication equipment. The threaded coupling ensures a secure mate, while the solder center contact provides a reliable termination for small coaxial cables.

Key specifications

• Connector series: SMC
• Connector type: Plug (male)
• Mounting type: Panel mount / bulkhead
• Body style: Straight
• Impedance: 50 Ohm
• Termination method: Solder (center contact)
• Frequency range: DC to 10 GHz
• Voltage rating: 335 Veff
• VSWR: ≤ 1.25 (DC-6 GHz), ≤ 1.35 (6-10 GHz)
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500
• Body material: Brass, nickel plated
• Center contact plating: Gold
• Insulator material: PTFE
• Coupling mechanism: Threaded (M7 x 0.75)
• Max panel thickness: 3.2 mm
• Recommended mounting hole: 6.4 mm

Why choose it

This connector offers stable electrical performance up to 10 GHz with low VSWR, making it suitable for high-frequency signal integrity. The gold-plated center contact ensures low contact resistance and corrosion resistance, while the nickel-plated brass body provides durability and a clean appearance.

Ideal use cases

• Panel-mounted RF connections in test and measurement equipment
• Compact radio communication devices
• Antenna feedthroughs on enclosures
• Custom RF cable assemblies

Good to know

The SMC interface is a miniature threaded connector, smaller than SMA, often used where space is limited. The solder termination requires basic soldering skills and appropriate tools. The panel mount design allows direct mounting on a chassis or panel with a maximum thickness of 3.2 mm.
