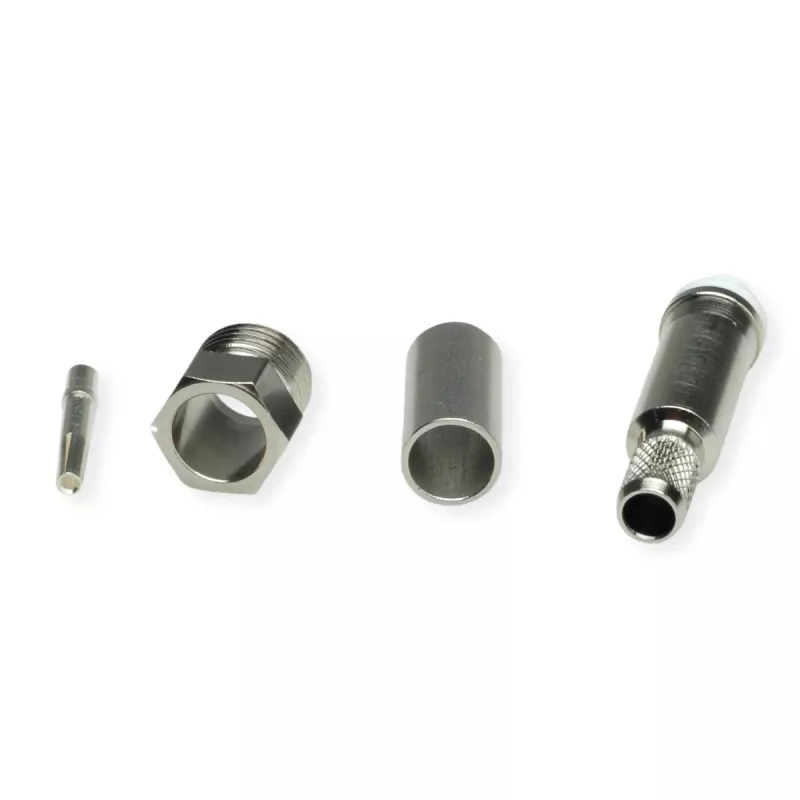

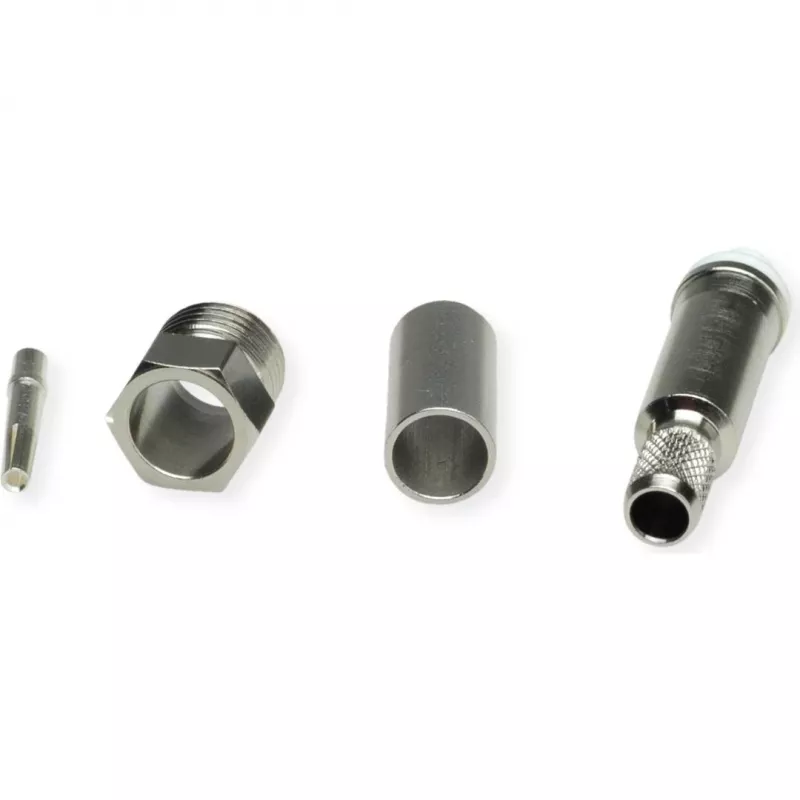

TELEGÄRTNER TEGA J01701A0007Z FME conector hembra de cable crimp RG58C/U 50 ohmios níquel/oro

FME cable socket for RG58C/U coaxial cable, featuring crimp termination and 50 Ohm impedance for reliable RF connections up to 3 GHz. The nickel-plated brass body and gold-plated contacts ensure low contact resistance and corrosion resistance, making it suitable for mobile radio, telecommunications, and automotive applications.

Advantages

Precision-machined brass construction with durable nickel plating and gold-plated center contact for consistent signal integrity. Crimp termination provides a secure, vibration-resistant connection without soldering. Polypropylene dielectric offers stable impedance and low loss across the operating frequency range.

Suitable for

• Mobile radio antenna connections
• Telecommunications equipment
• Automotive RF systems
• RG58C/U cable assemblies

Key specifications

• Connector type: FME socket (female)
• Cable compatibility: RG58C/U
• Impedance: 50 Ohm
• Frequency range: DC to 3 GHz
• Termination: Crimp
• Body material: Brass, nickel-plated
• Contact material: Brass / beryllium copper, gold-plated
• Dielectric: Polypropylene (PP)
• Operating temperature: -40°C to +85°C
• Voltage rating: 500 V peak
• Insulation resistance: > 5000 MΩ
• Durability: > 500 mating cycles

Recommendations

Use with appropriate crimp tooling for RG58C/U to ensure reliable termination. Verify connector gender and cable compatibility before installation.
