Terminal óptico de red ONT PLANET GPON SFU ONT 1 puerto 2,5 Mbit/s

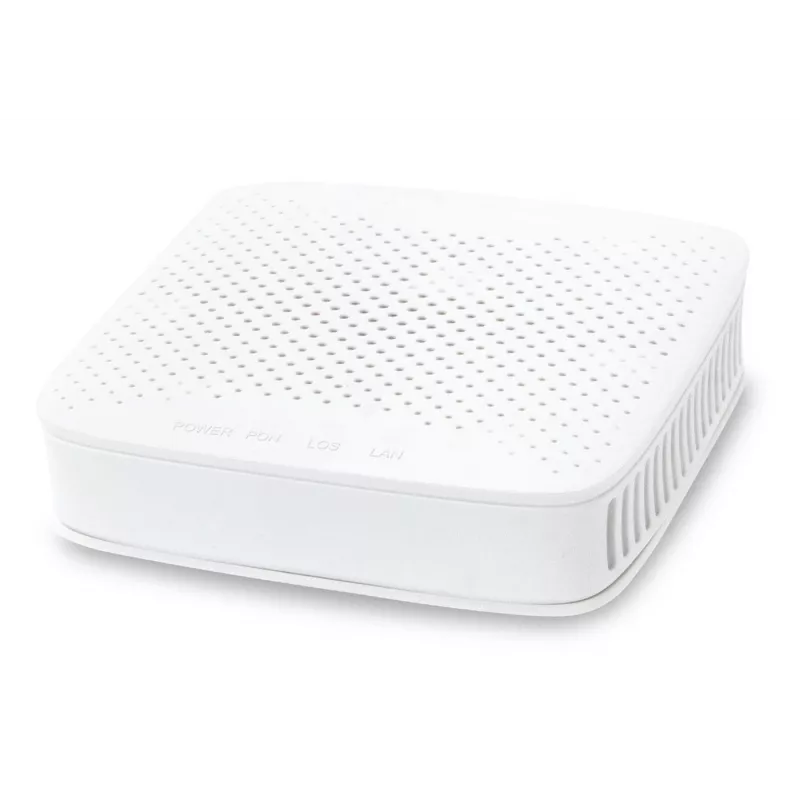

PLANET GPN-100 is a GPON Optical Network Terminal (ONT) with one GPON port and one Gigabit Ethernet RJ45 interface. Compliant with ITU-T G.984/G.988 and PRC communications industrial standards, the GPN-100 works with PLANET GPON OLT devices to deliver GPON solutions for FTTx and multi-service networks. The compact unit supports LC/SC fiber connectors and is designed for simple plug-and-play installation and maintenance.

Advantages

The GPN-100 provides downstream and upstream transmission rates of 2.5 Gbps and 1.25 Gbps respectively, supports up to 1:128 split ratio when paired with PLANET GPL-8000 OLT, and can cover distances up to 20 km. It includes advanced DBA, rate limiting and QoS features for accurate bandwidth control and service prioritization. The device also implements energy-saving technology to reduce power consumption while maintaining performance. CE certification ensures compliance with applicable safety standards.

Suitable for

• FTTx deployments (single-family unit GPON subscriber unit)
• Residential and small-business high-speed Internet access
• IPTV, VoIP and multimedia broadband services
• Passive Optical Network infrastructures requiring long-reach links up to 20 km

Key specifications

• Model: GPN-100
• GPON standard: ITU-T G.984 / G.988
• Downstream rate: 2.5 Gbps
• Upstream rate: 1.25 Gbps
• Split ratio: up to 1:128 (with compatible OLT)
• Max reach: up to 20 km
• Interfaces: 1 GPON port, 1 Gigabit Ethernet RJ45
• Fiber connectors: LC / SC
• Dimensions: 80 x 75 x 24 mm
• Certification: CE

How to use

Install the GPN-100 near the subscriber premises and connect the GPON uplink to the OLT using the appropriate LC or SC fiber patch cord. Connect the subscriber device to the RJ45 Gigabit Ethernet port for data services. Power on the unit and verify PON and Ethernet link LEDs. Configure bandwidth profiles, DBA and QoS settings on the provider OLT or management system as required for service levels.

Recommendations

Place the ONT in a dry, ventilated location away from direct heat sources. Use manufacturer-recommended fiber connectors and proper handling to avoid fiber damage. For optimal service, pair the GPN-100 with a compatible PLANET GPON OLT and set correct DBA and QoS parameters for the subscribed services.
