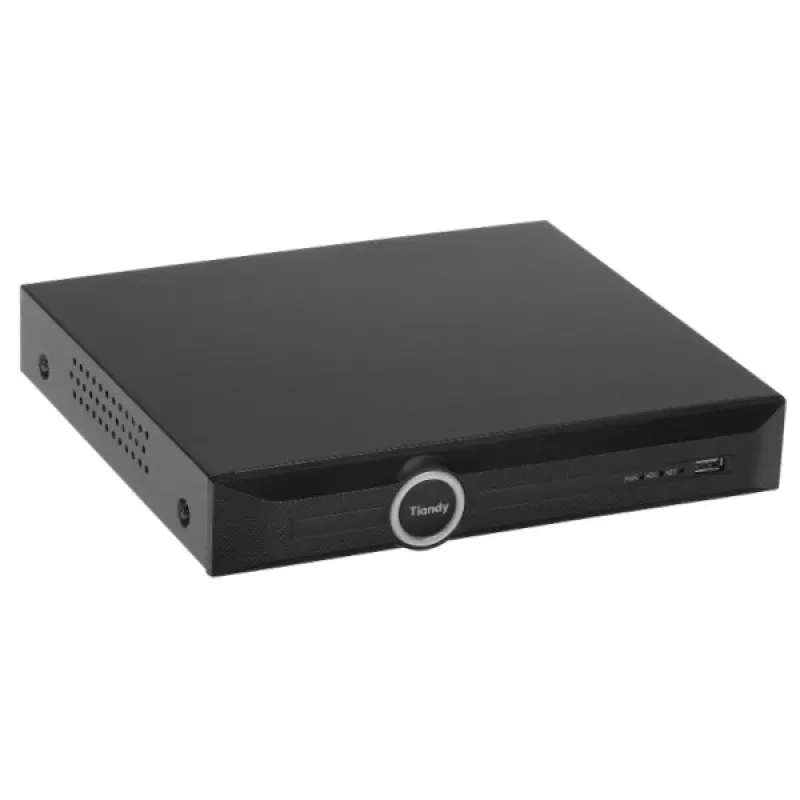

Tiandy TC-R3110 NVR IP de 10 canales con 8 puertos PoE Lite, grabación 5MP, H.265, 1 bahía SATA

The Tiandy TC-R3110 is a high-performance 10-channel IP network video recorder designed for small to medium-sized surveillance systems. With 8 integrated PoE Lite ports (IEEE 802.3af/at) delivering a total power budget of 100W, it simplifies installation by powering cameras directly. Supporting recording resolutions up to 5MP (2592x1944) and advanced S+265/H.265/H.264 compression, this NVR ensures efficient storage and clear video quality. The unit features a single SATA bay supporting up to 10TB, HDMI and VGA outputs for local monitoring, and is compatible with the Tiandy View Pro mobile app for remote access.

Advantages

• 10 IP channels with 8 PoE ports reduce cabling and installation costs.
• 5MP recording resolution delivers detailed images.
• S+265 compression saves up to 50% bandwidth and storage compared to H.265.
• 100W PoE budget supports multiple cameras without extra power supplies.
• Compact design with 1 SATA bay up to 10TB for flexible storage.

Suitable for

• Small businesses (retail shops, offices, cafes)
• Residential surveillance systems
• Warehouses and storage facilities
• Schools and daycare centers

Key specifications

• Video Input: 10 IP channels
• PoE Ports: 8 (IEEE 802.3af/at, 100W total)
• Max Recording Resolution: 5MP (2592x1944)
• Video Compression: S+265 / H.265 / H.264
• Video Output: 1x HDMI (up to 1920x1080), 1x VGA (up to 1920x1080)
• Decoding: 1-ch@5MP / 2-ch@4MP / 4-ch@1080P / 8-ch@720P / 10-ch@D1
• Audio: 1x RCA input, 1x RCA output
• HDD Bay: 1x SATA, up to 10TB
• Network: 1x RJ45 10/100Mbps
• USB: 2x USB 2.0
• Power Supply: DC 48V
• Operating Temperature: -10°C to 55°C
• Mobile App: Tiandy View Pro (TVP)

Recommendations

For optimal performance, use Tiandy PoE cameras and a high-quality SATA HDD (e.g., WD Purple or Seagate SkyHawk). Ensure the network switch supports at least 100Mbps per port. The NVR is best suited for installations requiring up to 10 cameras with local recording and remote access.
