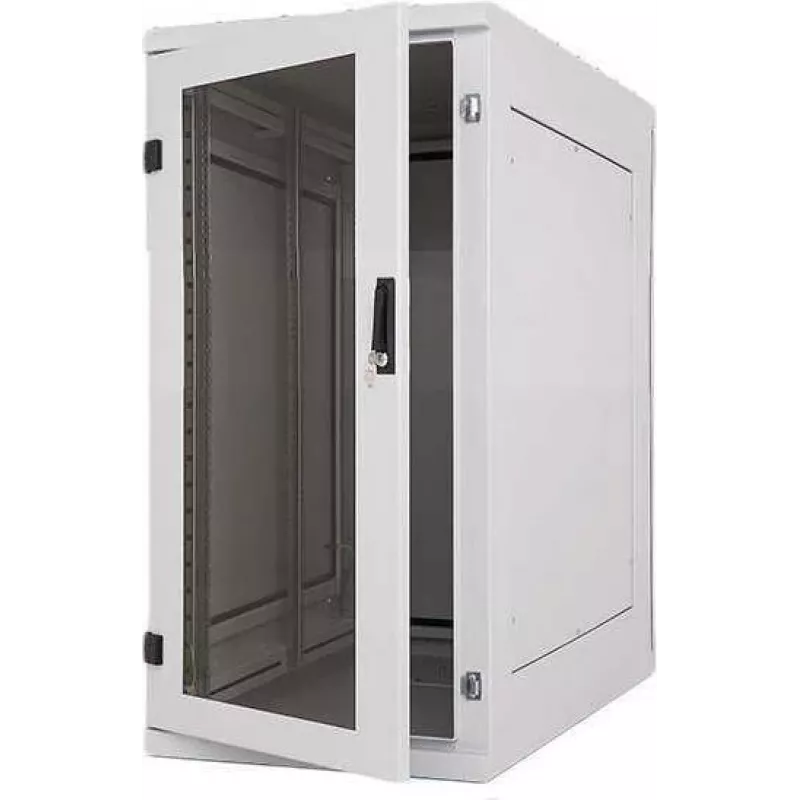

Triton RIE-27-A66-CCX-N1 Armario de pie 19" 27U 600x600 mm IP54 Gris

The Triton RIE-27-A66-CCX-N1 is a robust 19-inch free-standing cabinet designed for industrial environments requiring high protection against dust and water. With IP54 rating, it safeguards sensitive equipment in demanding conditions. The welded steel frame ensures stability and a load capacity of up to 800 kg. Removable side panels and lockable solid steel doors provide secure access. Cable inlets in roof and floor (300x100 mm) with sealed covers maintain integrity. The roof trim accommodates air-conditioning units, though installation reduces protection to IP20. Multi-point locking system ensures a tight seal and compatibility with various lock types. Adjustable 19-inch mounting rails offer flexible equipment installation.

Advantages

IP54 protection against dust and water splashes; robust welded steel construction; high load capacity of 800 kg; lockable doors and side panels for security; adjustable mounting rails for versatile rack mounting; cable entry with sealed covers; compatible with air-conditioning units.

Suitable for

• Industrial automation and control systems
• Network and server equipment in dusty or wet environments
• Outdoor or sheltered installations requiring IP54
• Data centers with demanding environmental conditions

Key specifications

• Rack standard: 19-inch
• Rack units: 27U
• External dimensions (WxDxH): 600 x 600 x 1350 mm
• IP protection rating: IP54
• Colour: Grey (RAL 7035)
• Material: Sheet steel, powder coated
• Front door: Solid steel, lockable
• Rear door: Solid steel, lockable
• Side panels: Removable, lockable
• Load capacity: 800 kg
• Cable entry: Top and bottom, sealed glands
• Mounting rails: Adjustable 19-inch vertical rails
• Construction: Welded frame

Recommendations

For optimal performance, ensure proper grounding of all removable parts. When installing an air-conditioning unit, note that the overall protection rating drops to IP20. Use compatible handles and locks from leading manufacturers for enhanced security.
