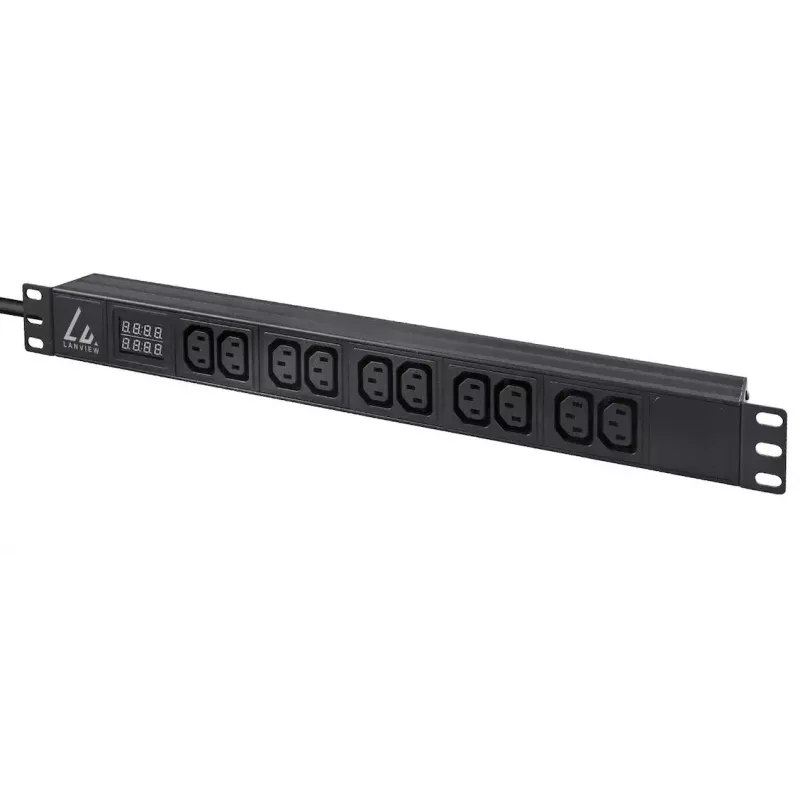

Unidad de distribución de corriente (PDU) Lanview LVR-3MIEC-AMP-10C13 10 salidas AC 1U negra

The Lanview LVR-3MIEC-AMP-10C13 is a metered 1U PDU designed for rack-mounted server rooms and network cabinets. It provides ten C13 AC outlets, an integrated ammeter for real-time current monitoring, and a 3 m power cable terminated with an IEC 60309 CEE 16A plug. The unit supports up to 16 A at 230 V and is finished in black for a standard rack appearance.

Advantages

This PDU offers consolidated power distribution for multiple devices in a 1U rack space while allowing local current monitoring via the built-in amp meter. The three-metre cable and IEC 60309 CEE 16A plug enable flexible placement and connection to industrial or datacentre power sources. Its metered design helps track load and avoid circuit overloads without requiring network management features.

Suitable for

• Server racks and small data centre cabinets
• Network equipment such as switches and routers
• Workloads requiring local current monitoring for power distribution
• IT closets and telecom enclosures with 16A supply

Key specifications

• Model: Lanview LVR-3MIEC-AMP-10C13
• Form factor: 1U rack-mountable
• AC outlets: 10 x C13
• Nominal input voltage: 230 V
• Maximum current: 16 A
• Cable length: 3 m

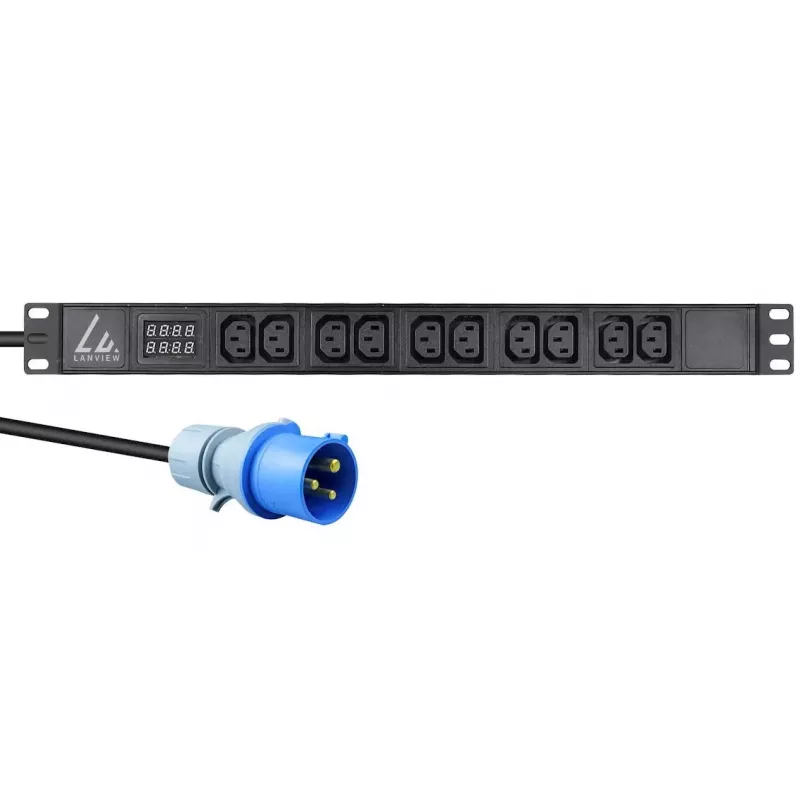

• Plug type: IEC 60309 CEE 16A
• Type: Metered PDU
• Colour: Black
• Weight: 1.3 kg

How to use

Mount the PDU in a 1U space of your rack using standard rack-mount hardware. Connect the 3 m power cable to a compatible 16A IEC 60309 CEE outlet. Plug your equipment into the ten C13 outlets. Monitor the ammeter to check total current draw and ensure the combined load does not exceed the rated 16 A at 230 V.

Recommendations

Distribute high-draw devices across multiple PDUs or circuits to prevent exceeding the 16 A maximum. Periodically check the ammeter under typical load conditions and avoid daisy-chaining extension cords. Ensure the incoming supply and rack cabling meet local electrical codes and the PDU's rated specifications.
