Unidad de montaje PTZ para exterior AXIS TQ1818-E, IP66, giro 360°, inclinación -90°–45°, carga 5 kg, PoE (56 V), 10/100/1000 Mbit/s

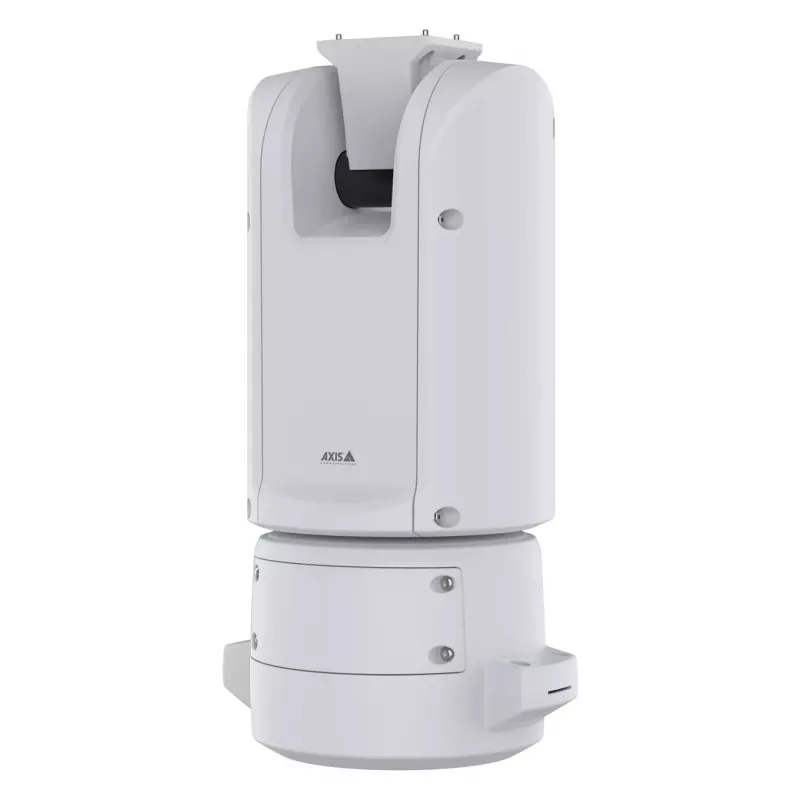

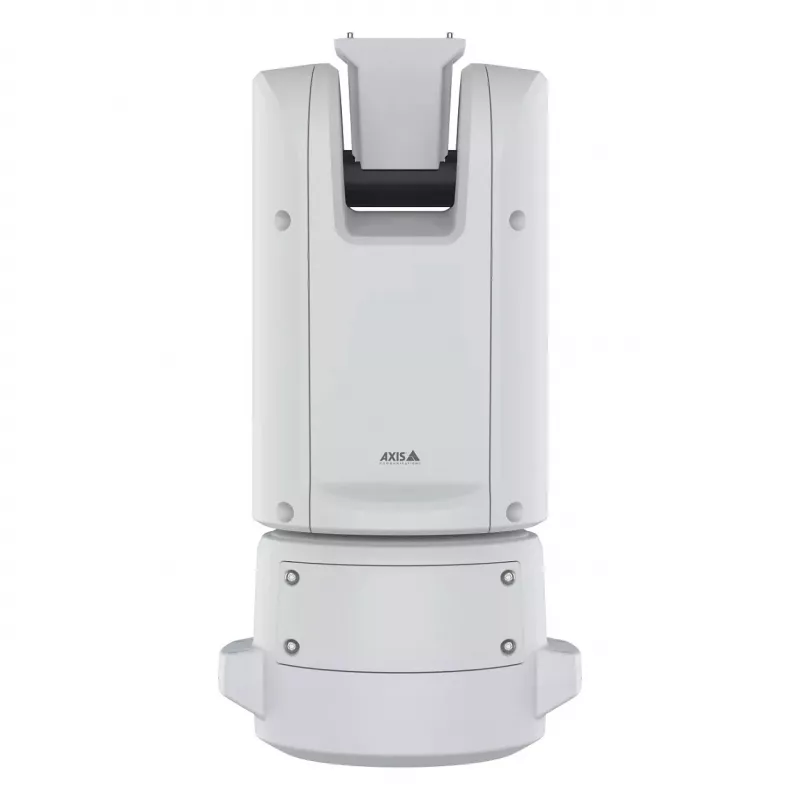

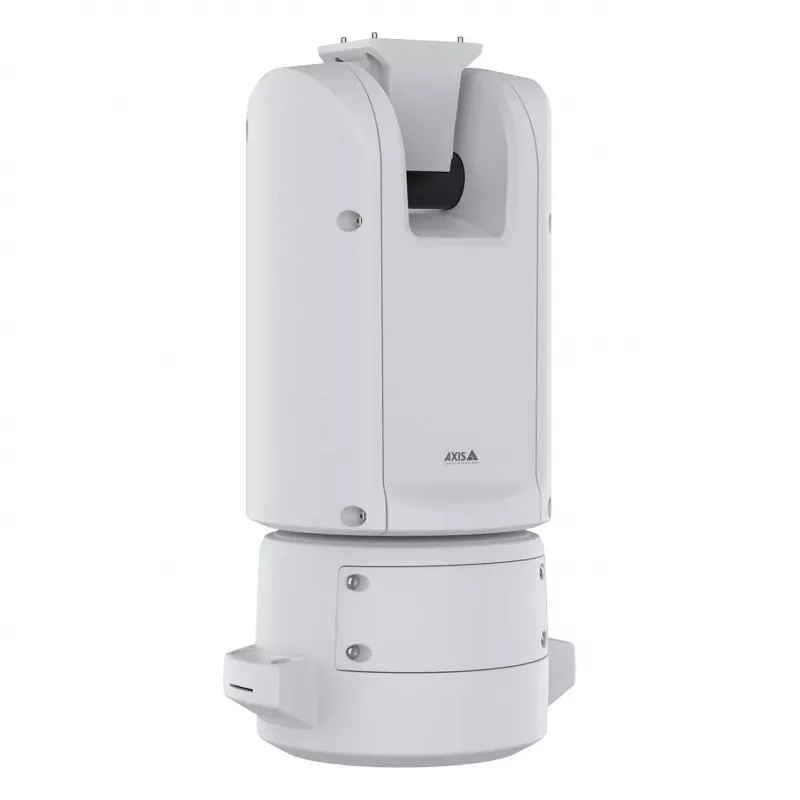

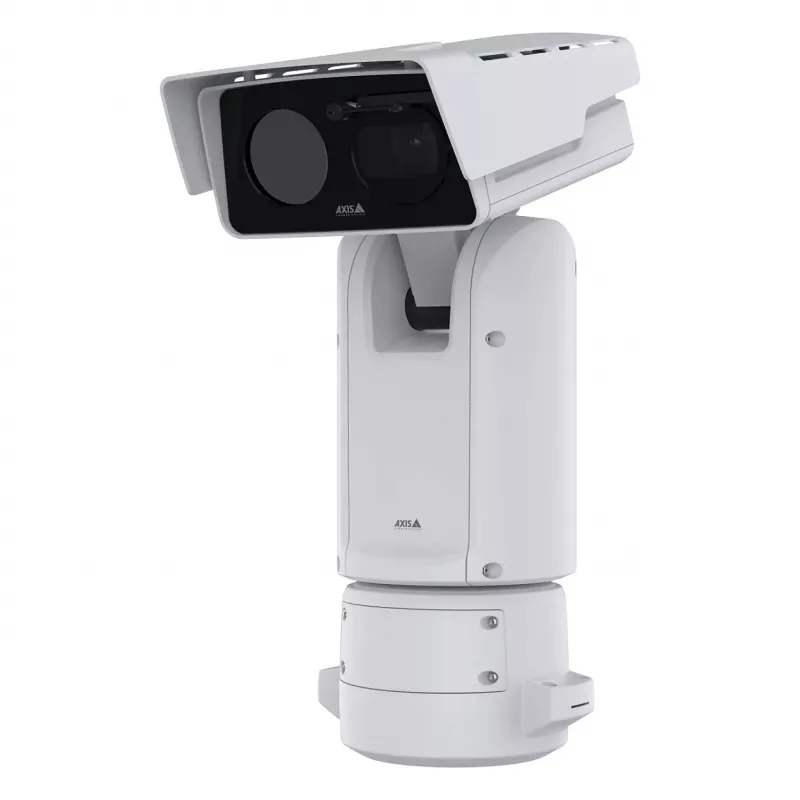

AXIS TQ1818-E is an outdoor positioning unit for selected Axis box and thermal cameras that provides continuous 360° pan and a ground-to-sky tilt range. Built to IP66 standards, it supports precise high-speed movements and ultra-slow, jerk-free scanning, with a maximum payload of 5 kg and wired Gigabit Ethernet connectivity with 56 V power supply.

Advantages

The unit delivers uninterrupted 360° endless pan and −90° to 45° tilt for wide situational awareness, while dual RJ45 and SFP interfaces allow secure, long-distance network connections. Built-in de-icing control and weatherproof construction make it suitable for outdoor use in extreme temperatures. Compact physical dimensions and multiple mounting options simplify installation on walls, columns or poles.

Suitable for

Key specifications

How to use

Mount AXIS TQ1818-E on a suitable surface (wall, column or pole) using the recommended brackets and secure the selected Axis box or thermal camera within the 5 kg payload limit. Connect wired network and power via the Gigabit Ethernet interface and configure network settings on the camera and positioning unit. Use the unit’s pan and tilt controls to set movement speed and limits; the mechanism supports both rapid repositioning and ultra-smooth slow scans.

Recommendations

Install in accordance with local electrical and mounting regulations, ensure the selected camera model is listed as supported by Axis for this mount, and verify cable runs and SFP modules for long-distance links. Regularly check de-icing functionality and mechanical fastenings when operating in freezing conditions.
