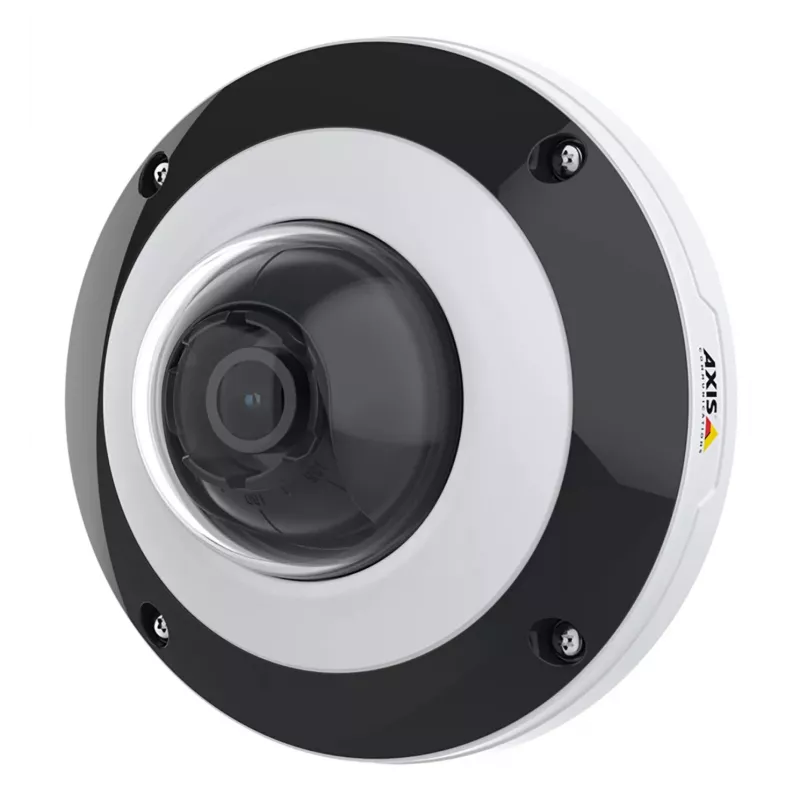

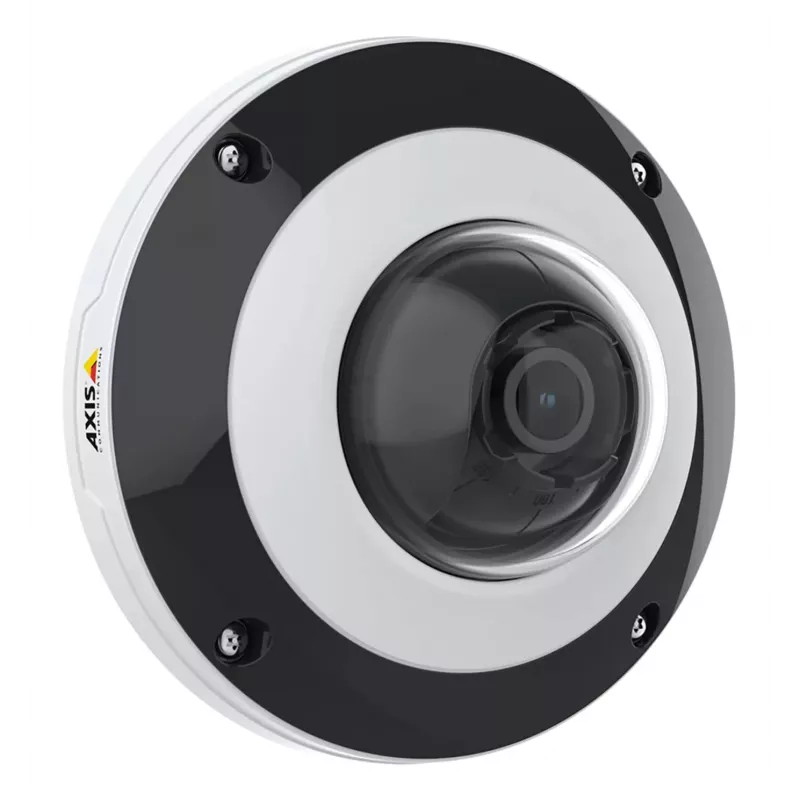

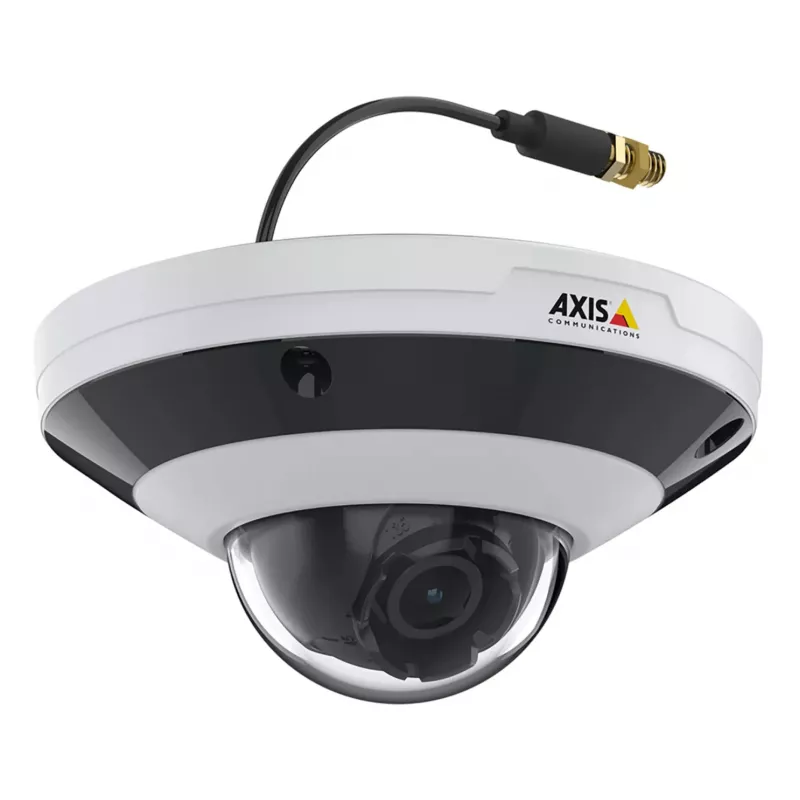

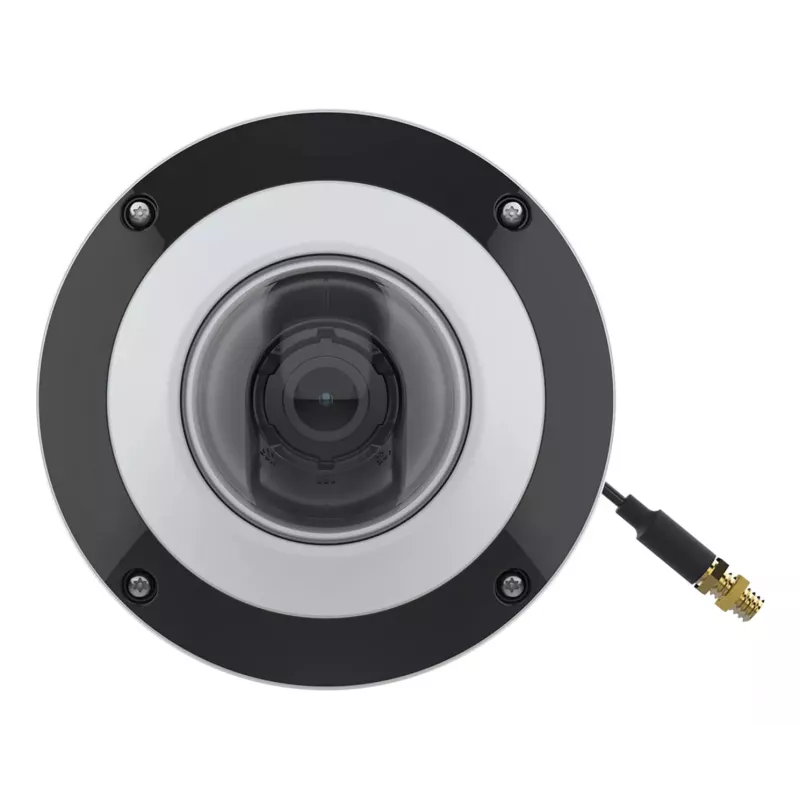

Unidad de sensor Axis 02364-001 cámara de vigilancia universal negro

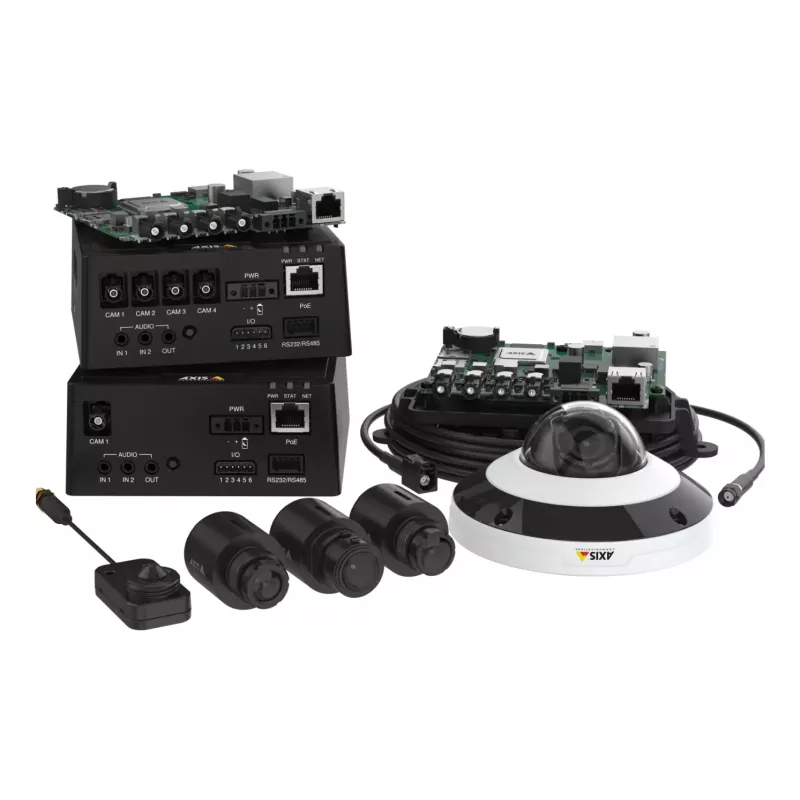

The Axis 02364-001 sensor unit is a compact dome sensor designed to work with AXIS F91 main units for cost-efficient surveillance installations. It connects to the main unit with cables up to 30 m (98 ft) and provides an 111º field of view for wide-area coverage. The unit uses a CMOS sensor, accepts M12 exchangeable lenses (factory-fitted 2.8 mm focal length) and includes SMA connectors and IR illumination for reliable imaging even in complete darkness.

Advantages

This sensor unit reduces installation and configuration costs when paired with AXIS F91 main units and supports a range of M12 lenses to tailor the field of view. Its robust design resists shock and vibration, SMA connectors ensure ruggedized cabling, and built-in IR illumination improves image usability in low-light or no-light conditions.

Suitable for (tasks / use cases)

• Indoor surveillance in corridors, lobbies and retail spaces
• Outdoor or semi-outdoor monitoring when installed in compatible housings
• Wide-area coverage where an 111º field of view is required
• Installations needing extended cable runs up to 30 m (98 ft) to the main unit

Key specifications

• Manufacturer: AXIS
• Model / MPN: 02364-001
• Sensor type: CMOS
• Lens interface: M12 exchangeable lenses (factory 2.8 mm focal length)
• Field of view: 111º (with mounted lens)
• Maximum cable distance to main unit: 30 m (98 ft)
• Colour: Black
• Connectors: SMA
• IR illumination: Yes

How to use

Connect the sensor unit to a compatible AXIS F91 main unit using appropriate cabling up to 30 m (98 ft). Select and install an M12 lens to achieve the desired field of view if different from the factory-fitted 2.8 mm lens. Mount the unit in a suitable housing or bracket compatible with AXIS F91 systems, secure SMA-connected cabling for ruggedized installations, and configure the camera parameters in the main unit according to site requirements.

Recommendations

Use in combination with AXIS F91 main units and compatible housings to ensure environmental protection and full feature support; choose the M12 lens option that matches the monitored area and verify cable routing and SMA connections for vibration-prone locations.
