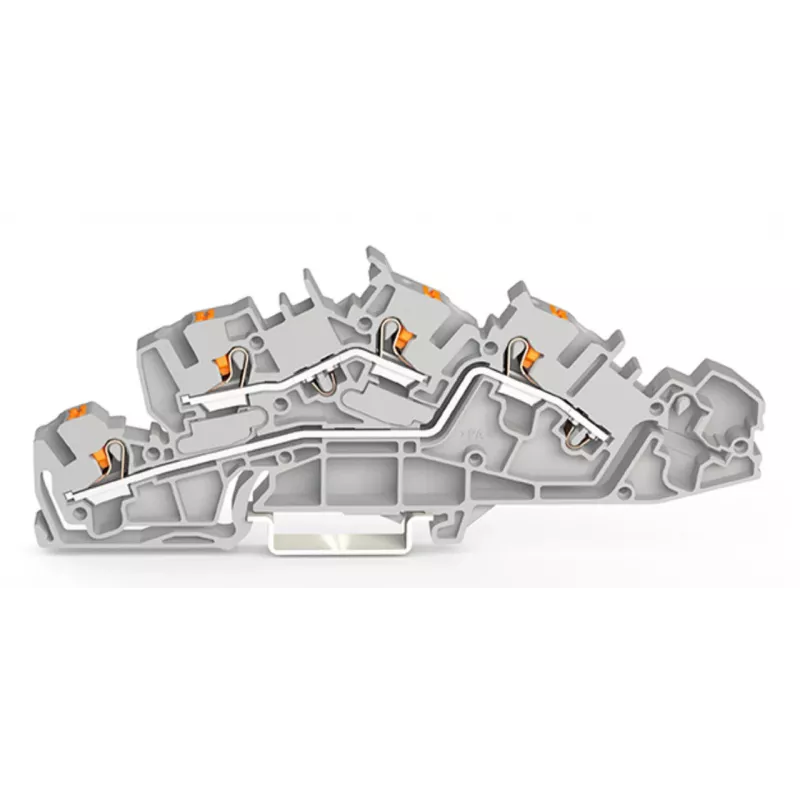

WAGO Caja de conexión de instalación 2205-7642 Borne con pulsador 4 mm² Gris

The WAGO Installation Junction Box 2205-7642 is a high-quality terminal block designed for reliable and safe electrical connections. Featuring PUSH WIRE® connection technology and a convenient push-button actuation, this terminal block ensures fast, tool-free wiring. With a nominal cross-section of 4 mm² and a rated voltage of 400 V, it is ideal for a wide range of installation applications. The gray polyamide housing provides excellent insulation and durability, making it suitable for demanding environments.

Advantages

PUSH WIRE® technology enables quick and secure wire connections without the need for special tools. The push-button actuation simplifies operation and ensures a reliable contact. The compact design saves space on the DIN rail, and the side-entry wiring allows for easy installation even in tight spaces.

Suitable for

• Electrical installations in residential and commercial buildings
• Distribution boxes and junction boxes
• Control cabinets and industrial automation
• Lighting and power circuits

Key specifications

• Connection Technology: PUSH WIRE®
• Actuation Type: Push-button
• Number of Potentials: 1
• Number of Clamping Units: 2
• Nominal Cross Section: 4 mm²
• Solid Conductor Size: 0.5 - 4 mm² (20 - 12 AWG)
• Fine-stranded Conductor Size: 0.5 - 4 mm² (20 - 12 AWG)
• Nominal Voltage (EN 60947-7-1): 400 V
• Nominal Current (EN 60947-7-1): 32 A
• Color: Gray
• Insulating Material: Polyamide (PA 66)
• Mounting Type: DIN-rail
• Strip Length: 11 mm (0.43 inch)
• Pollution Degree: 3
• Wiring Type: Side-entry wiring
• Approvals: VDE, UL, CSA, EAC, KEMA/KEUR

Recommendations

For optimal performance, use with copper conductors and ensure proper strip length. Suitable for use in pollution degree 3 environments. Always follow local electrical codes and regulations.
