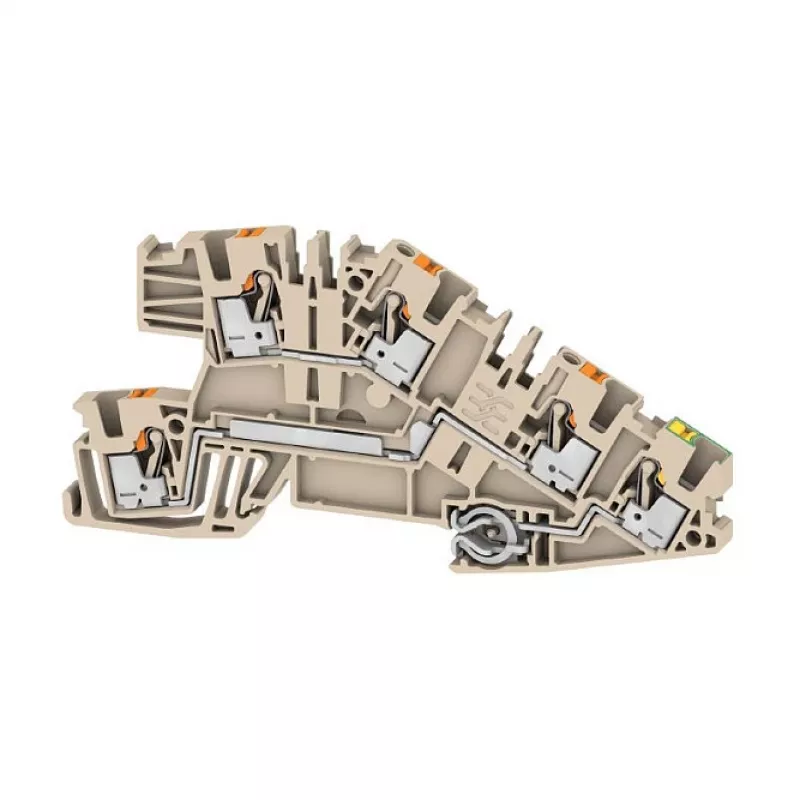

Weidmüller AITB 2.5 BB L-L-PE borne de carril de instalación, PUSH IN, 3 potenciales, 2,5 mm², negro

The Weidmüller AITB 2.5 BB L-L-PE is a high-quality installation terminal block designed for reliable and safe electrical connections. With PUSH IN connection technology, it enables fast and tool-free wiring, saving time during installation. This terminal block features three potentials (L, L, PE) across three levels, making it ideal for distributing power and protective earth in control cabinets and junction boxes.

Advantages

Tool-free PUSH IN connection reduces installation time. Compact design with three levels saves space on DIN rail. Robust Wemid insulation material ensures long-term durability and high temperature resistance. Rated for 400 V and 24 A, suitable for a wide range of industrial applications.

Suitable for

• Power distribution in control panels
• Lighting and building automation
• Machine and plant engineering
• Junction boxes and terminal boxes

Key specifications

• Connection Technology: PUSH IN
• Number of Potentials: 3 (L, L, PE)
• Number of Levels: 3
• Rated Cross-Section: 2.5 mm²
• Rated Voltage (IEC): 400 V
• Rated Current (IEC): 24 A
• Wire Size (Solid): 0.5 - 4 mm²
• Wire Size (Flexible with Ferrule): 0.5 - 2.5 mm²
• Mounting Type: DIN Rail TS 35
• Color: Black
• Insulation Material: Wemid
• Operating Temperature: -50 to 120 °C
• Pollution Degree: 3
• Flammability Rating: UL 94 V-0
• Approvals: cULus, EAC, KEMA
• Number of Connections: 6

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper tightening torque. Always follow local electrical codes and regulations.
