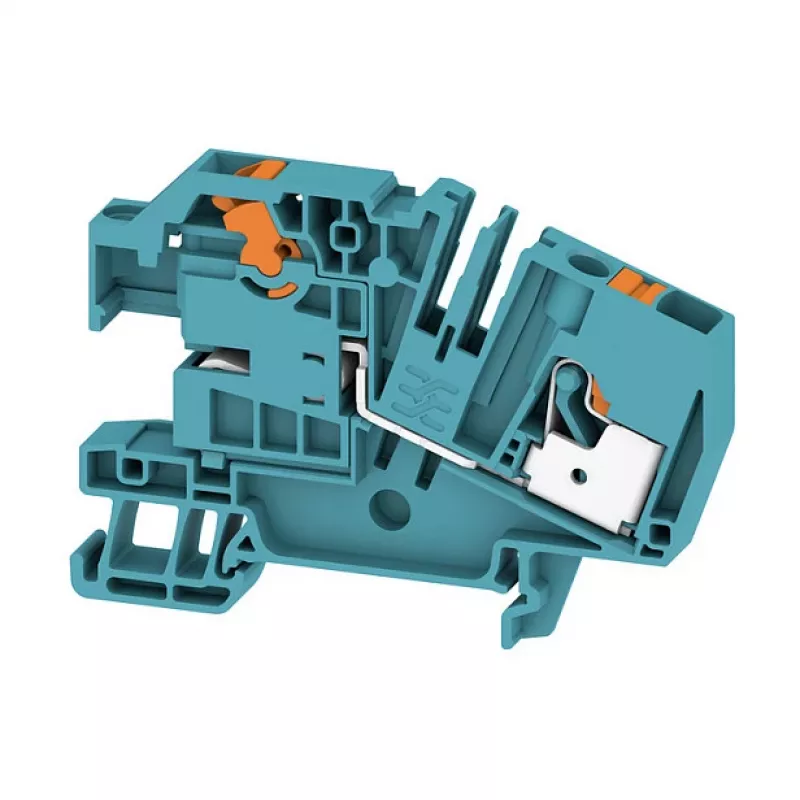

Weidmüller AITB 6 BB NDT BL borne de separación de neutro, conexión por tornillo, 6 mm², azul

The Weidmüller AITB 6 BB NDT BL is a high-quality neutral conductor disconnect terminal block designed for reliable electrical connections in industrial and building installations. With a screw connection system and a rated cross-section of 6 mm², this terminal block ensures secure and durable wiring for a wide range of applications.

Advantages

This terminal block offers a compact design with a neutral conductor disconnect function, allowing for easy isolation of the neutral line during maintenance or testing. The screw connection provides a robust and vibration-resistant connection, while the Wemid (PA 66) insulation material ensures excellent thermal and mechanical properties. The blue colour coding clearly identifies it as a neutral conductor terminal block, simplifying installation and troubleshooting.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution boards
• Machine wiring
• Neutral conductor isolation applications

Key specifications

• Connection Type: Screw Connection
• Number of Connections: 2
• Number of Potentials: 1
• Rated Voltage (IEC): 500 V
• Rated Current (IEC): 41 A
• Rated Cross-section (IEC): 6 mm²
• Wire Size (Solid): 0.5 - 10 mm²
• Wire Size (Flexible): 0.5 - 6 mm²
• Wire Size (AWG): AWG 20 - AWG 8
• Stripping Length: 12 mm
• Insulation Material: Wemid (PA 66)
• Colour: Blue
• Mounting Type: DIN Rail TS 35
• Operating Temperature: -50 °C to +120 °C
• Disconnect Function: Neutral Conductor Disconnect
• Number of Levels: 1
• Pollution Degree: 3
• Flammability Rating: UL 94 V-0
• Approvals: cULus, KEMA, EAC

Recommendations

For optimal performance, use with appropriate ferrules and ensure proper stripping length. Always follow local electrical codes and manufacturer guidelines for installation.
