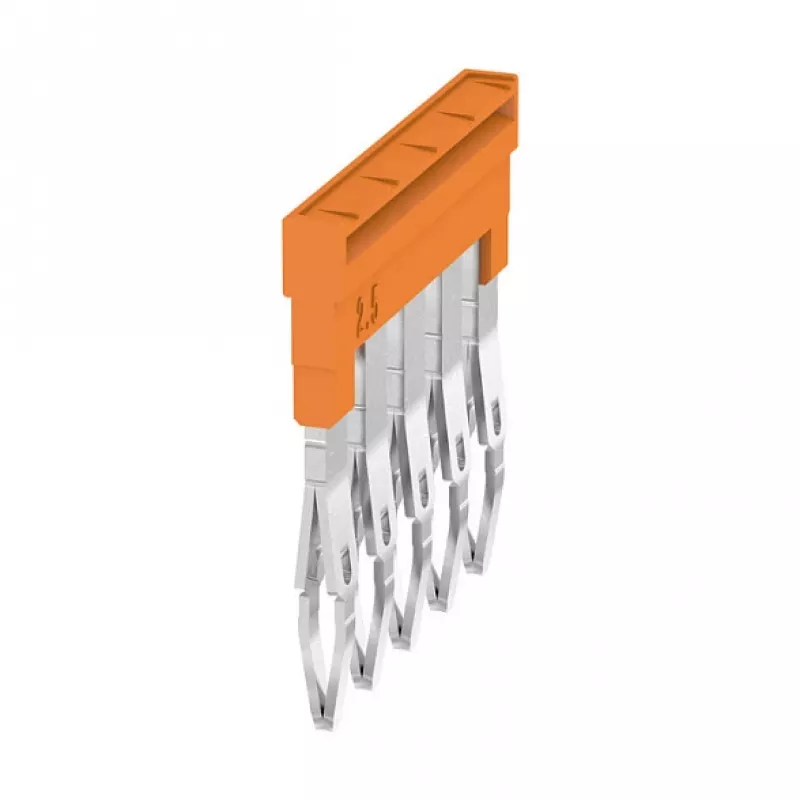

Weidmüller puente transversal serie Z de 5 polos ZQV 2.5N/5

The Weidmüller Z-Series Cross-Connector ZQV 2.5N/5 is a high-quality 5-pole jumper designed for potential distribution and bridging in terminal block applications. Manufactured by Weidmüller, a leader in industrial connectivity, this cross-connector ensures reliable and efficient electrical connections in control cabinets and distribution systems.

Advantages

This cross-connector simplifies wiring by allowing multiple terminal blocks to be connected in parallel, reducing installation time and minimizing wiring errors. Its compact design saves space, while the robust polyamide housing provides excellent insulation and durability. The plug-in mounting enables quick and tool-free installation, and the UL 94 V-0 flammability rating ensures high safety standards.

Suitable for

• Potential distribution in control cabinets
• Bridging multiple terminal blocks in Z-Series
• Industrial automation and power distribution systems
• Applications requiring reliable and organized wiring

Key specifications

• Number of Poles: 5
• Compatible Terminal Block Series: Weidmüller Z-Series
• Nominal Cross-section: 2.5 mm²
• Pitch: 5.1 mm
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Insulation Material: Polyamide (PA)
• Colour: Grey
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -50 °C to +100 °C
• Mounting Type: Plug-in
• Connection Method: Direct plug-in to terminal block
• RoHS Compliance: Yes
• Function: Potential distribution / Bridging
• Number of Connections: 5
• Series: ZQV 2.5N

Recommendations

For optimal performance, use this cross-connector with Weidmüller Z-Series terminal blocks. Ensure proper installation by following the manufacturer's guidelines. This product is ideal for professionals seeking reliable and efficient wiring solutions.
