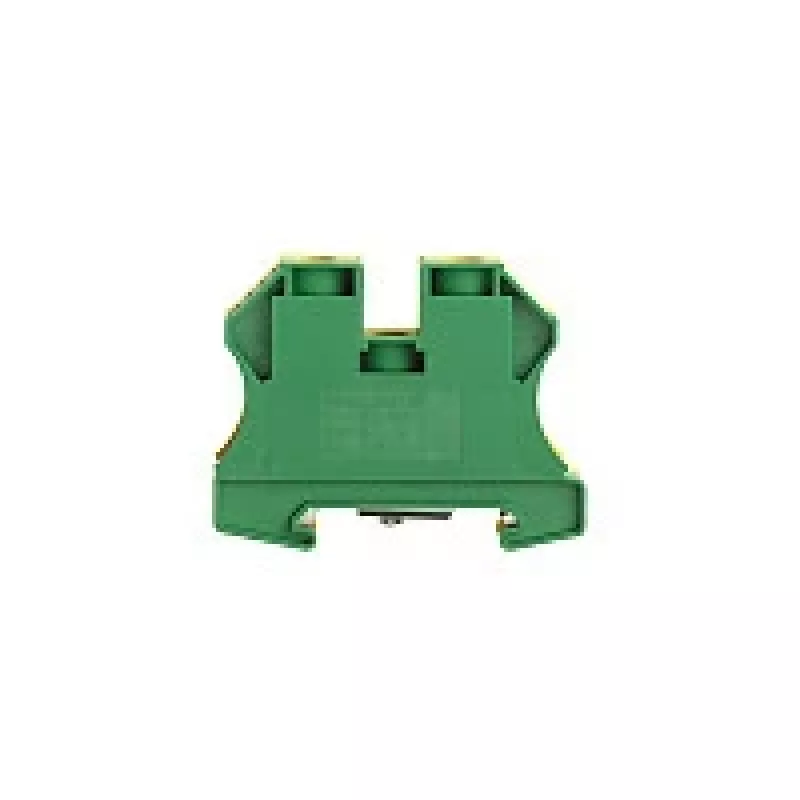

Weidmüller WPE 35N borne de puesta a tierra, 35 mm², conexión por tornillo, verde/amarillo

The Weidmüller WPE 35N is a high-quality ground terminal block designed for reliable earthing in industrial electrical installations. With a rated cross-section of 35 mm² and screw connection technology, it ensures secure and durable connections for solid and flexible conductors. The green/yellow color clearly identifies it as a protective earth terminal, complying with international standards.

Advantages

Robust screw connection for high clamping forces; wide wire range from 2.5 to 50 mm² solid; rated voltage up to 1000 V and current up to 125 A; compact design saves space on DIN rail; temperature range from -50 °C to 120 °C for harsh environments.

Suitable for

• Industrial control panels
• Power distribution systems
• Machine building and automation
• Protective earth (PE) connections

Key specifications

• Connection technology: Screw connection
• Rated cross-section: 35 mm²
• Wire size solid: 2.5 - 50 mm²
• Wire size flexible: 2.5 - 35 mm²
• Rated voltage: 1000 V
• Rated current: 125 A
• Number of potentials: 1
• Number of connections: 2
• Mounting: DIN Rail TS 35
• Color: Green/Yellow
• Insulation material: Wemid
• Stripping length: 22 mm
• Tightening torque: 4.0 - 4.8 Nm
• Pollution degree: 3
• Overvoltage category: III
• Operating temperature: -50 °C to 120 °C

Recommendations

For optimal performance, use with copper conductors and ensure proper tightening torque. Suitable for use in industrial environments with high vibration and temperature variations.
