Weidmüller WQV 16N/4 puente transversal, 4 polos, 16 mm², amarillo, 50 uds.

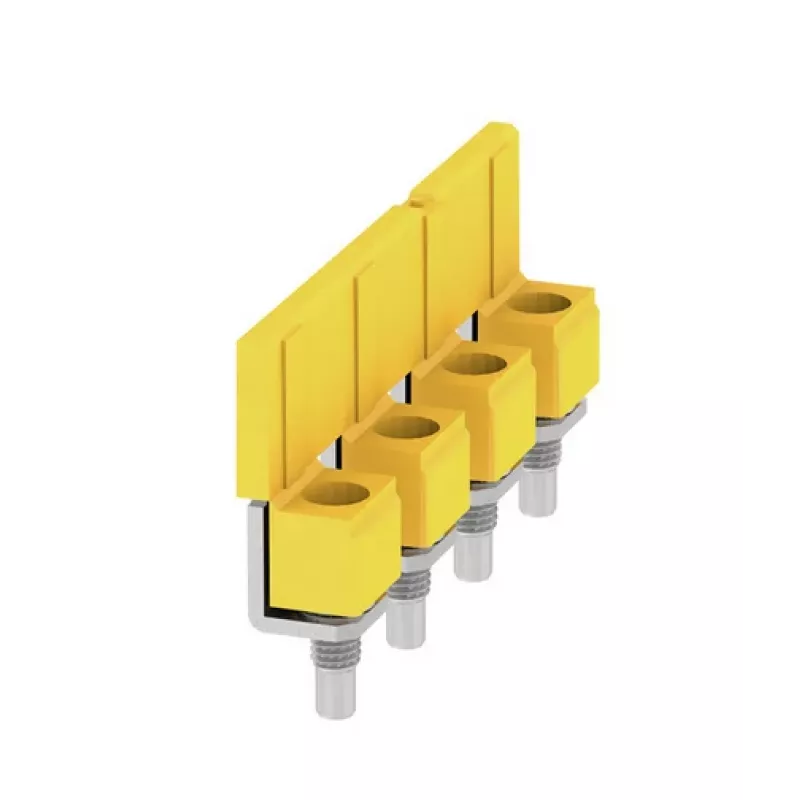

The Weidmüller WQV 16N/4 is a high-quality cross-connector jumper designed for use with WDU/ZDU 16 series terminal blocks. This 4-pole jumper allows for efficient electrical distribution and bridging of circuits, saving time and reducing wiring complexity. Manufactured from durable polyamide (PA) with a flammability rating of UL 94 V-2, it ensures reliable performance in demanding industrial environments.

Advantages

• Simplifies wiring by creating common connections across multiple terminal blocks
• Space-saving design with 10 mm pitch
• High current carrying capacity up to 76 A (IEC)
• Wide operating temperature range from -50 °C to 100 °C
• RoHS compliant for environmental safety

Suitable for

• Industrial control panels
• Automation systems
• Power distribution applications
• Building infrastructure wiring

Key specifications

• Product Type: Cross-connector / Jumper
• Number of Poles: 4
• Nominal Cross-section: 16 mm² (AWG 6)
• Material: Polyamide (PA)
• Color: Yellow
• Operating Temperature Range: -50 to 100 °C
• Flammability Rating: UL 94 V-2
• Quantity per Pack: 50 pieces
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 76 A
• Pitch / Spacing: 10 mm
• Contact Material: Copper alloy, tinned
• Mounting Type: Plug-in
• Series: WQV

Recommendations

For optimal performance, use with Weidmüller WDU/ZDU 16 series terminal blocks. Ensure proper installation and observe rated voltage and current limits.
