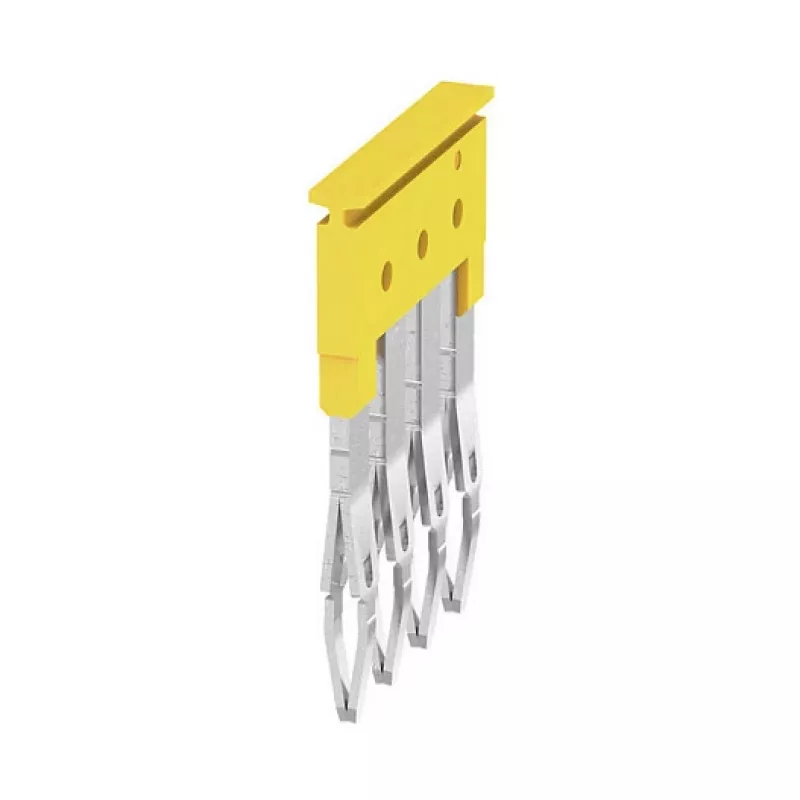

Weidmüller ZQV 2.5/4 Puente transversal, 4 polos, 2,5 mm², amarillo, 60 uds.

The Weidmüller ZQV 2.5/4 is a high-quality cross-connector (jumper) designed for use with Weidmüller Z-Series terminal blocks. It enables efficient and reliable electrical bridging of adjacent terminals, saving time and reducing wiring errors. This pack contains 60 pieces, making it ideal for industrial control panels, automation systems, and distribution boards.

Advantages

• Simplifies wiring by connecting multiple terminals in one step
• Compact design saves space in control cabinets
• High temperature resistance and UL 94 V-0 flammability rating ensure safety
• Plug-in mounting for quick installation without tools

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine manufacturing

Key specifications

• Number of poles: 4
• Nominal cross-section: 2.5 mm²
• Rated voltage (IEC): 800 V
• Rated current (IEC): 24 A
• Rated impulse voltage: 8 kV
• Pitch: 5.1 mm
• Insulation material: Wemid
• Colour: Yellow
• Operating temperature: -60 to 130 °C
• Flammability rating: UL 94 V-0
• Packaging quantity: 60 pieces

Recommendations

For optimal performance, use with Weidmüller Z-Series terminal blocks. Ensure proper installation according to manufacturer guidelines.
