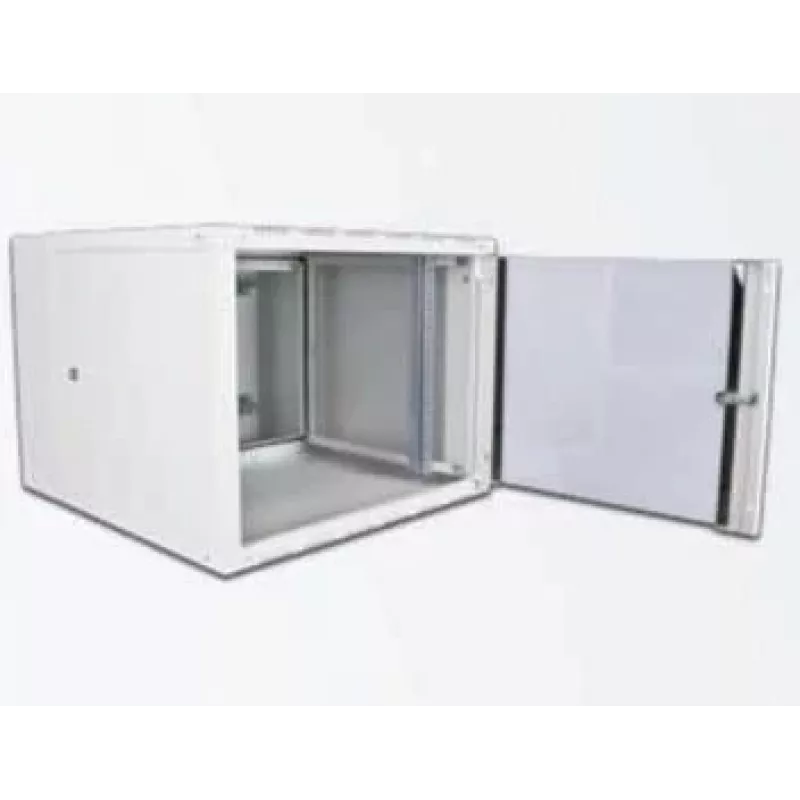

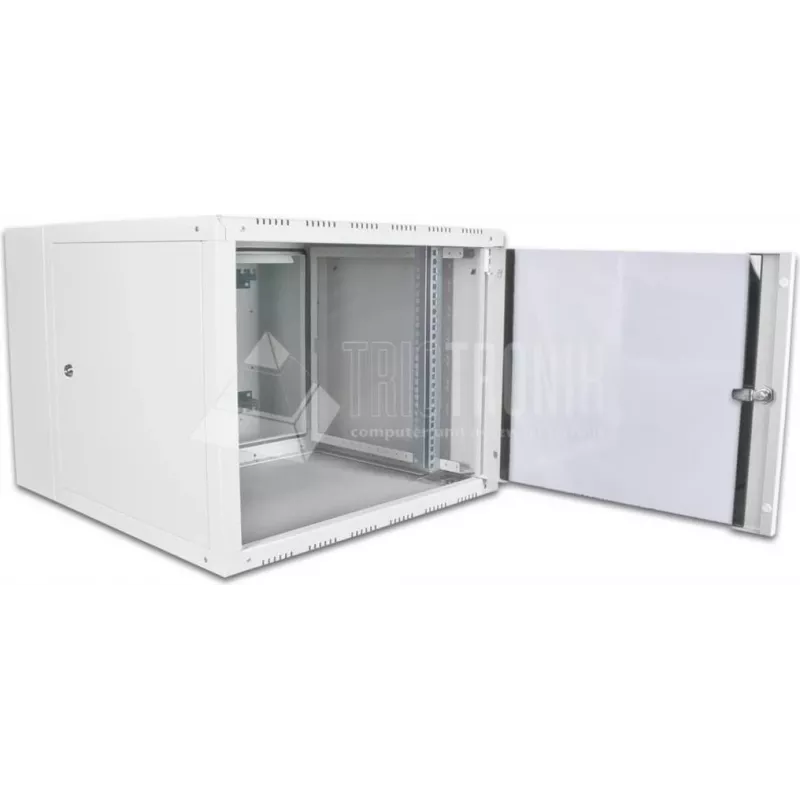

Wirewin armario de pared de 19 pulgadas, 2 piezas, 600x650 mm, 15U (WCAB D 600X650X15U)

Managing network equipment in limited spaces demands a secure, organized enclosure that keeps components accessible yet protected. The SLIM WIREWIN WCAB D 600X650X15U is a 19-inch wall-mount cabinet designed to house up to 15U of rack-mount equipment in a compact footprint. Its two-part swing frame allows easy access to the rear of installed devices, simplifying cabling and maintenance without removing the entire unit from the wall.

Who is it for

This cabinet suits IT administrators, network installers, and facility managers who need to install switches, patch panels, or small servers in corridors, offices, or utility rooms where floor space is unavailable. The 600x650mm external dimensions provide ample depth for standard network gear while keeping the cabinet close to the wall.

Main features

• 15U height for up to 15 rack units of 19-inch equipment
• Two-part design with swing frame for rear access
• Safety glass front door, lockable
• Removable, lockable side panels
• Top and bottom cable entry with brush strips
• Depth-adjustable 19-inch mounting rails
• Static load capacity: 60 kg
• Passive ventilation with fan cut-outs
• Powder-coated steel sheet, light grey (RAL 7035)

Specifications

• Rack units: 15U
• External width: 600 mm
• External depth: 650 mm
• External height: 750 mm
• Material: steel sheet
• Colour: light grey (RAL 7035)
• Protection rating: IP20
• Included accessories: 2 keys, mounting material

Tips

Before mounting, verify that the wall can support the combined weight of the cabinet and installed equipment. Use the adjustable rails to align equipment depth and ensure proper airflow around active components.
