Wittenberg Antennen Cable de antena de 10 m conector SMA macho a conector SMA macho 50 ohmios cable coaxial de bajas pérdidas negro 103484

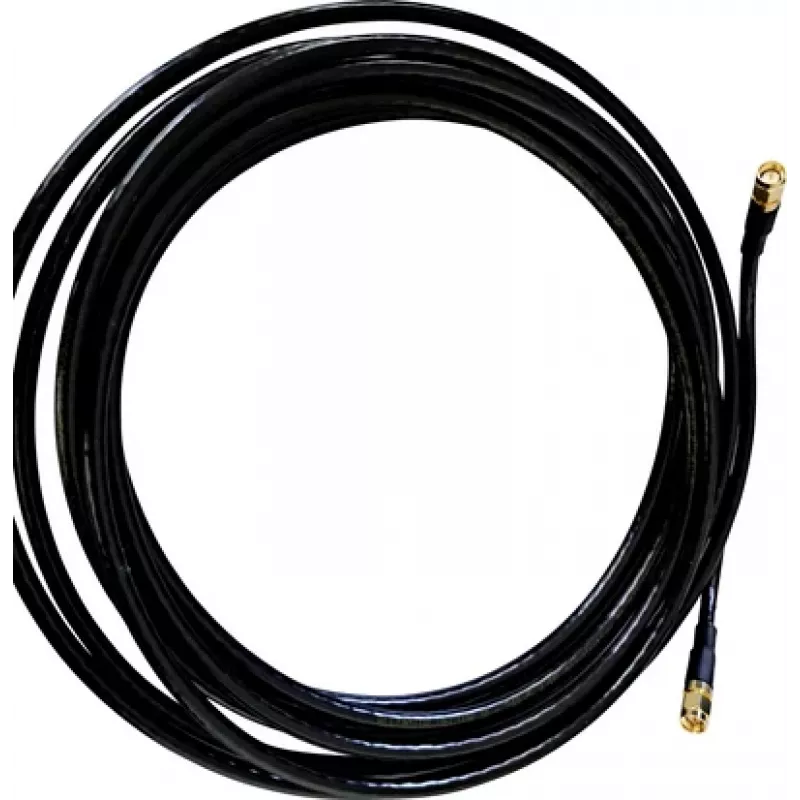

For installations where a reliable RF link over a longer distance is essential, this 10-meter SMA male to SMA male coaxial cable connects GSM, UMTS, LTE, WLAN, GPS or ISM-band equipment without signal loss surprises. The low-loss H155-type cable with double shielding keeps attenuation low across DC to 6 GHz, making it suitable for roof antennas, machine-to-machine communication and outdoor wireless links.

Key specifications

• Length: 10 m
• Connectors: SMA male to SMA male
• Impedance: 50 Ω
• Cable type: Coaxial low-loss (H155 equivalent)
• Frequency range: DC – 6 GHz
• Shielding: Double (copper braid + aluminium foil)
• Jacket material: PVC, black
• Outer diameter: 5.4 mm
• Attenuation at 1 GHz: 2.0 dB per 10 m
• Attenuation at 2.4 GHz: 4.0 dB per 10 m
• Attenuation at 5 GHz: 5.0 dB per 10 m
• VSWR: < 1.5

Why choose it

The solid copper inner conductor and double shielding minimise interference, while the SMA connectors provide a secure threaded coupling for vibration-prone environments. The black PVC jacket resists abrasion and remains flexible for routing through conduits or along walls.

Ideal use cases

• Connecting outdoor LTE/5G antennas to routers or modems
• Extending WLAN access points or bridges
• GPS antenna installations in vehicles or marine equipment
• ISM-band telemetry and industrial wireless systems

Good to know

Attenuation values are for the full 10 m length. For shorter runs, losses decrease proportionally. The cable is suitable for both indoor and outdoor use when connectors are protected from moisture.
