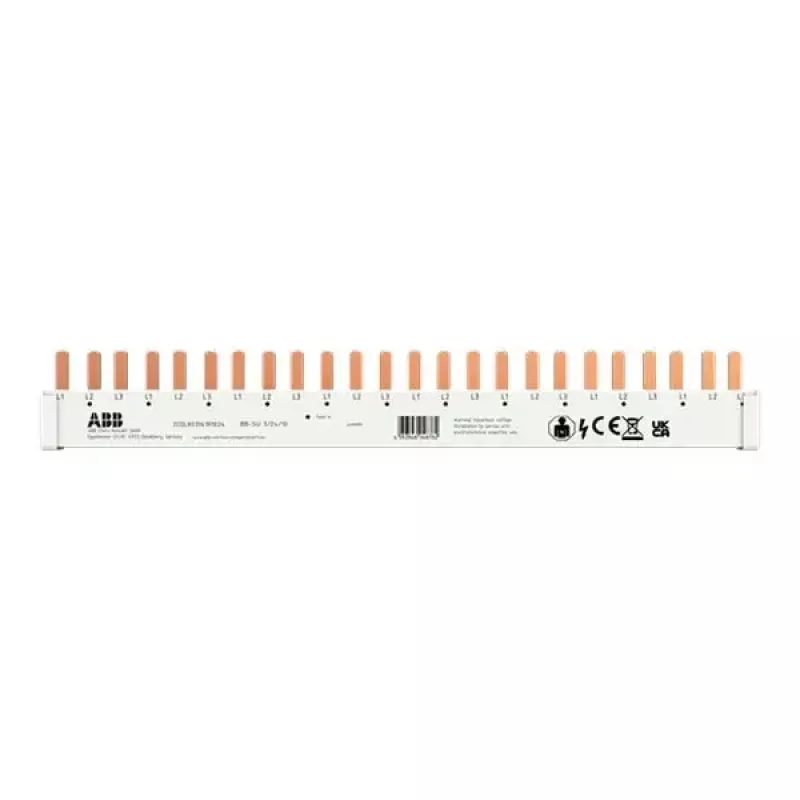

ABB BB-SU 3/24/10 barra colectora de pines trifásica, 10 mm², 24 pines, 63 A 2CDL803141R1024

Electricians and panel builders use the ABB BB-SU 3/24/10 pin busbar to distribute power across three phases in residential and commercial distribution boards. It plugs directly into ABB System pro M compact® modular devices, eliminating individual wiring and reducing installation time.

Key specifications

• 3-phase pin-type busbar with 24 connection pins (8 groups of 3 pins)
• Cross-section: 10 mm², rated current 63 A, rated voltage 400 V AC
• Pole pitch: 18 mm, compatible with ABB S200 and F200 series devices
• Material: copper with self-extinguishing plastic insulation, grey
• Standards: IEC/EN 60947-7-1

Why choose it

This busbar simplifies wiring in distribution boards, ensuring a neat and reliable connection for multiple modular devices. Its pin-type design allows quick plug-in installation, reducing labor and potential wiring errors.

Ideal use cases

• Power distribution in electrical enclosures for residential and commercial buildings
• Connecting miniature circuit breakers (MCBs) and residual current devices (RCDs) in three-phase systems
• Retrofit and new installations where space and time savings are critical

Good to know

The busbar is part of the ABB System pro M compact® series, ensuring compatibility with a wide range of ABB modular devices. Its self-extinguishing insulation enhances safety in the event of a fault.
