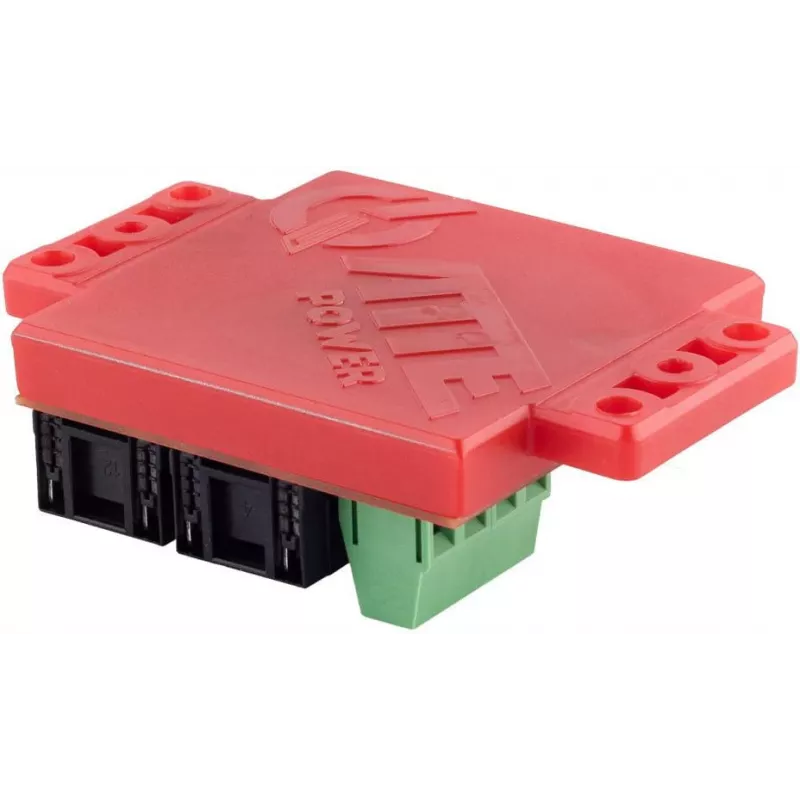

Adaptador PoE pasivo ATTE AEPI-1-50 de 1 canal 10/100/1000 Mbps Gigabit Ethernet

Passive Power over Ethernet adapter with one channel, delivering Gigabit Ethernet data and DC power over a single Cat5e/6 cable. It supports 10/100/1000 Mbps speeds and passes through input voltage from 12V to 57V DC, making it ideal for powering remote devices like IP cameras, wireless access points, and other passive PoE equipment.

Advantages

This adapter simplifies installation by combining data and power transmission over one Ethernet cable, eliminating the need for separate power lines. Its passive design ensures zero voltage conversion loss, providing maximum efficiency. The wide input voltage range (12V–57V DC) offers flexibility for various power sources, and the compact plastic housing allows for discreet placement.

Suitable for

• IP cameras and surveillance systems
• Wireless access points and bridges
• VoIP phones and other passive PoE devices
• Remote sensors and IoT endpoints

Key specifications

• Passive PoE (no negotiation)

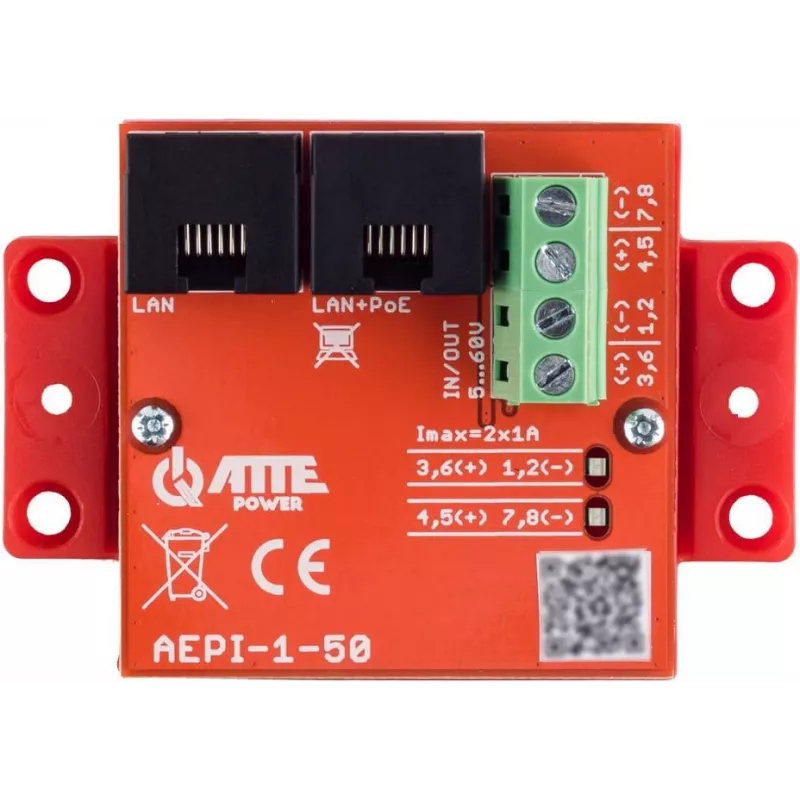

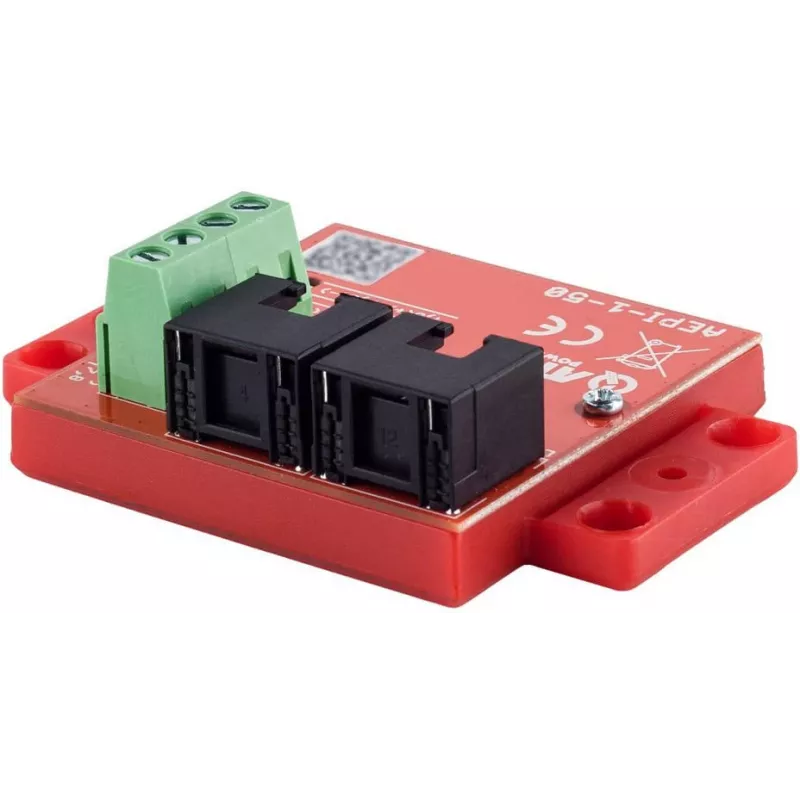

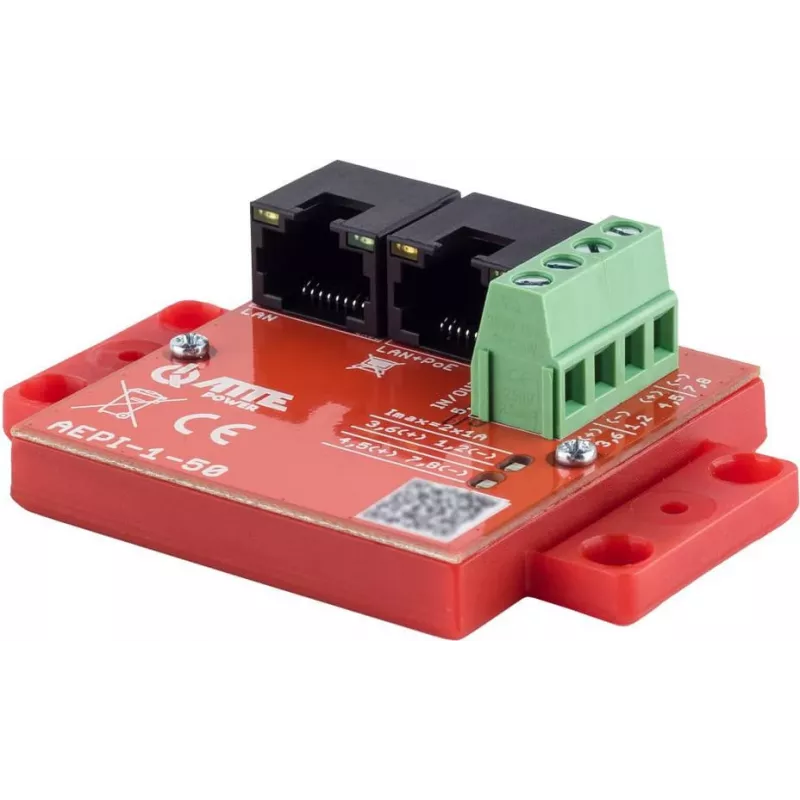

• 1 channel, 2 x RJ45 ports (Data In, PoE Out)
• Gigabit Ethernet: 10/100/1000 Mbps
• Input voltage: 12V–57V DC (output matches input)
• PoE pinout: 4,5 (+) / 7,8 (-)
• Max current: 1A, max power: up to 57W
• Operating temperature: -10°C to 40°C
• Plastic housing

Recommendations

Verify that your powered device supports passive PoE and the same voltage as your power supply. Use Cat5e or higher cabling for Gigabit speeds. For outdoor installations, place the adapter in a weatherproof enclosure.
