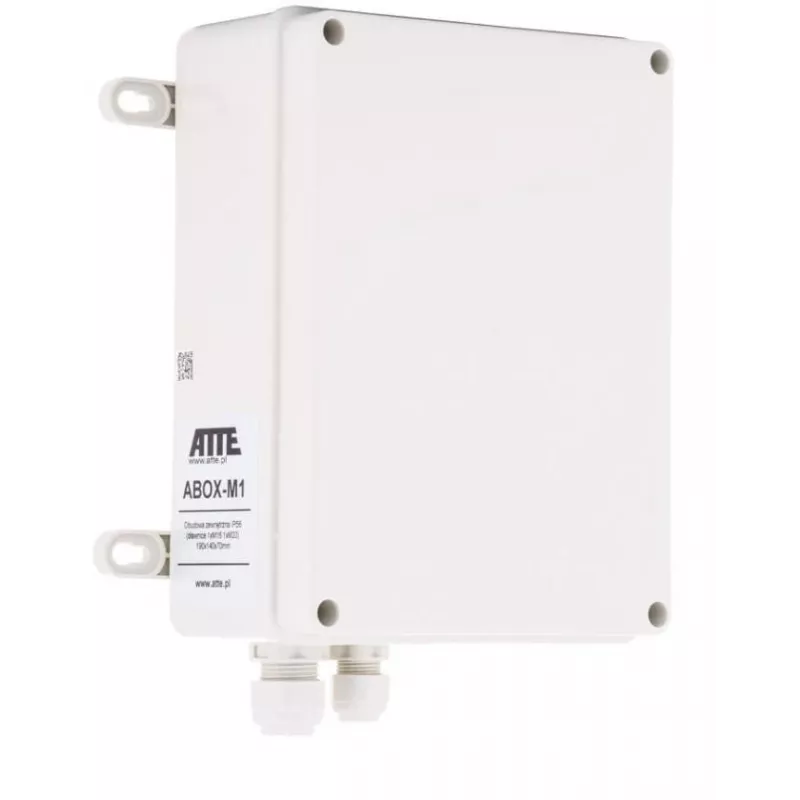

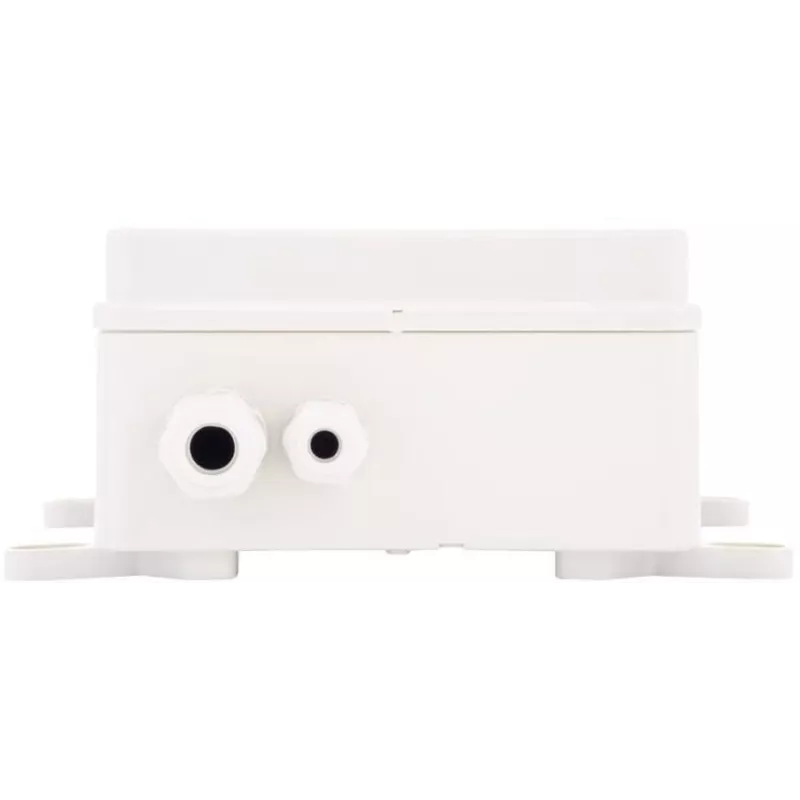

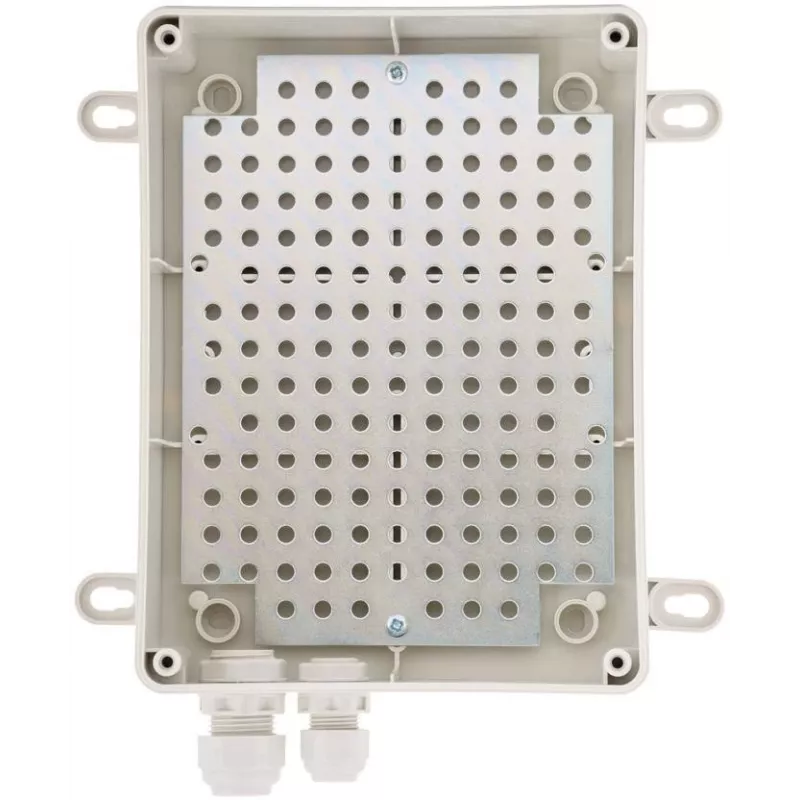

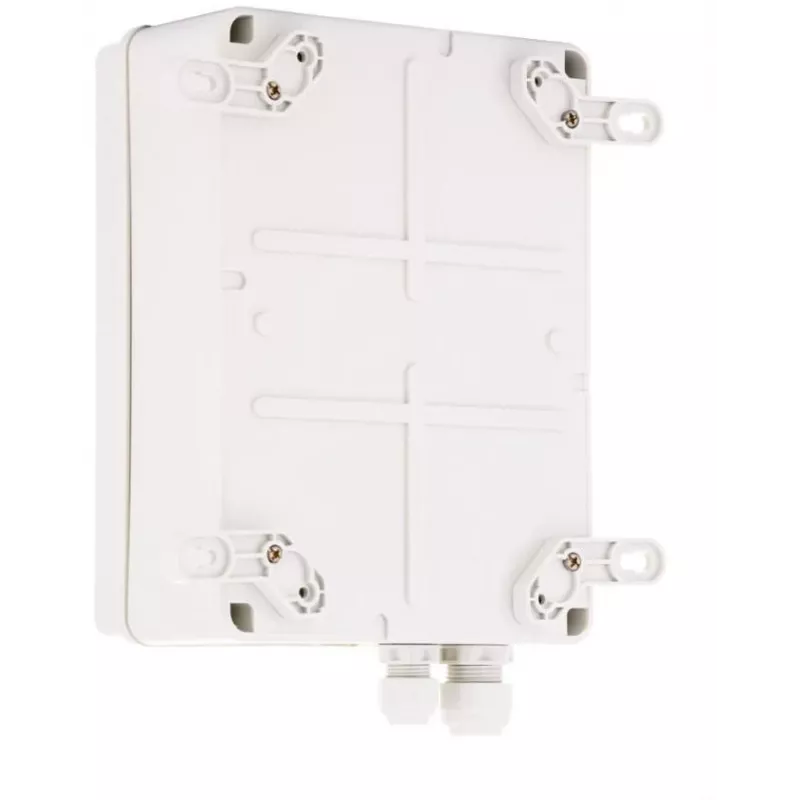

ATTE ABOX-M1 carcasa para exterior IP56 montaje en pared gris ABS

The ATTE ABOX-M1 is a robust outdoor hermetic enclosure designed to protect electronic devices, junction boxes, and electrical installations in demanding environments. With an IP56 rating and IK08 impact resistance, it offers reliable protection against dust, water jets, and mechanical shocks. The light grey (RAL 7035) ABS plastic housing is UV-resistant and suitable for wall mounting, making it ideal for industrial, telecommunications, and security applications.

Advantages

This enclosure provides excellent durability and weather resistance, ensuring long-term performance in outdoor or harsh indoor settings. The screw-on lid with a gasket creates a watertight seal, while the smooth walls allow for custom cable entry drilling. Its compact size (180 x 130 x 70 mm) fits easily in tight spaces, and the UL94-V2 flammability rating adds an extra layer of safety.

Suitable for

• Protecting electronic devices and control systems outdoors
• Junction boxes and electrical installations in industrial environments
• Telecommunications equipment requiring weatherproof housing
• Security system components such as cameras and sensors
• DIY and professional projects needing a durable, customizable enclosure

Key specifications

• Brand: ATTE
• Model: ABOX-M1
• EAN: 5902143690573
• Enclosure Type: Outdoor Hermetic Enclosure
• IP Rating: IP56
• IK Rating: IK08
• Material: ABS Plastic
• Colour: Light Grey (RAL 7035)
• External Dimensions (L x W x H): 180 x 130 x 70 mm
• Internal Dimensions (L x W x H): 170 x 120 x 65 mm
• Mounting Type: Wall Mountable
• Lid Type: Screw-on with Gasket
• Operating Temperature Range: -25°C to +70°C
• Flammability Rating: UL94-V2
• UV Resistance: Yes
• Cable Entry: Smooth walls for custom drilling
• Number of Lid Screws: 4

Recommendations

For optimal installation, use appropriate wall anchors and sealant around cable entries to maintain the IP56 rating. This enclosure is perfect for protecting sensitive electronics in outdoor or industrial settings where dust, water, and impact are concerns.
