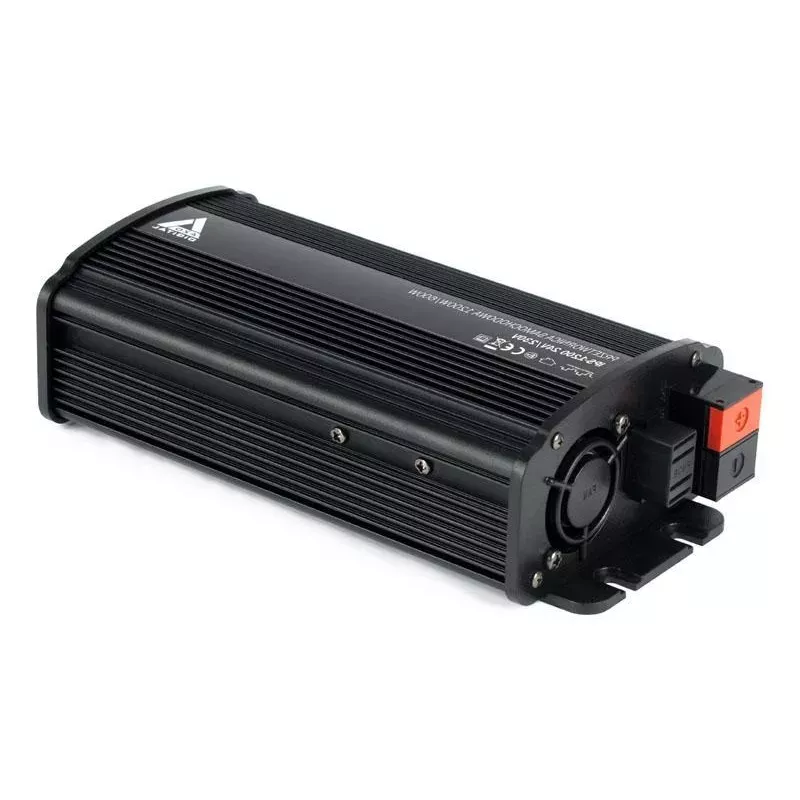

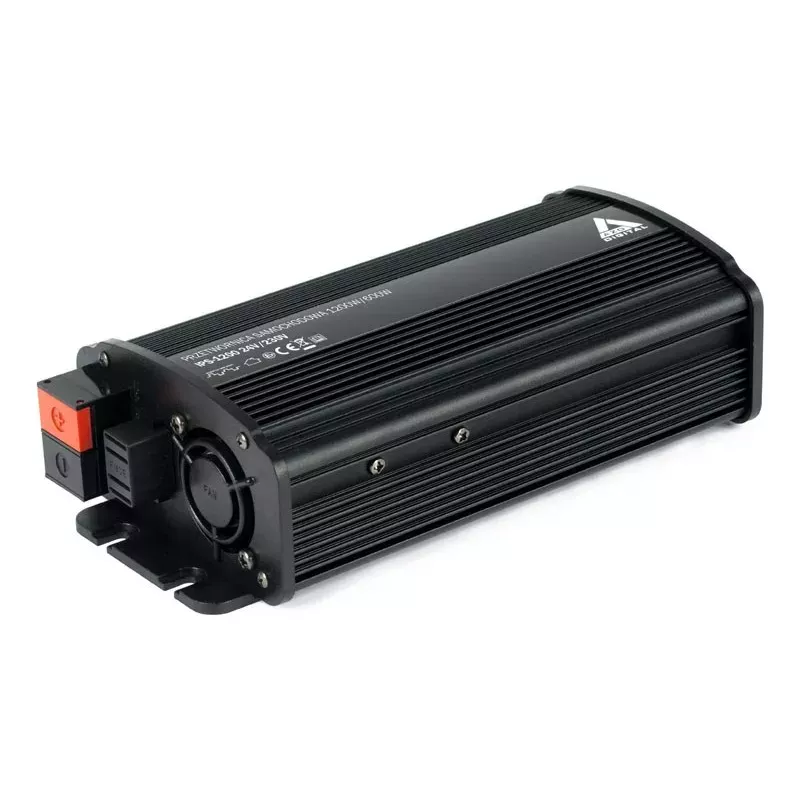

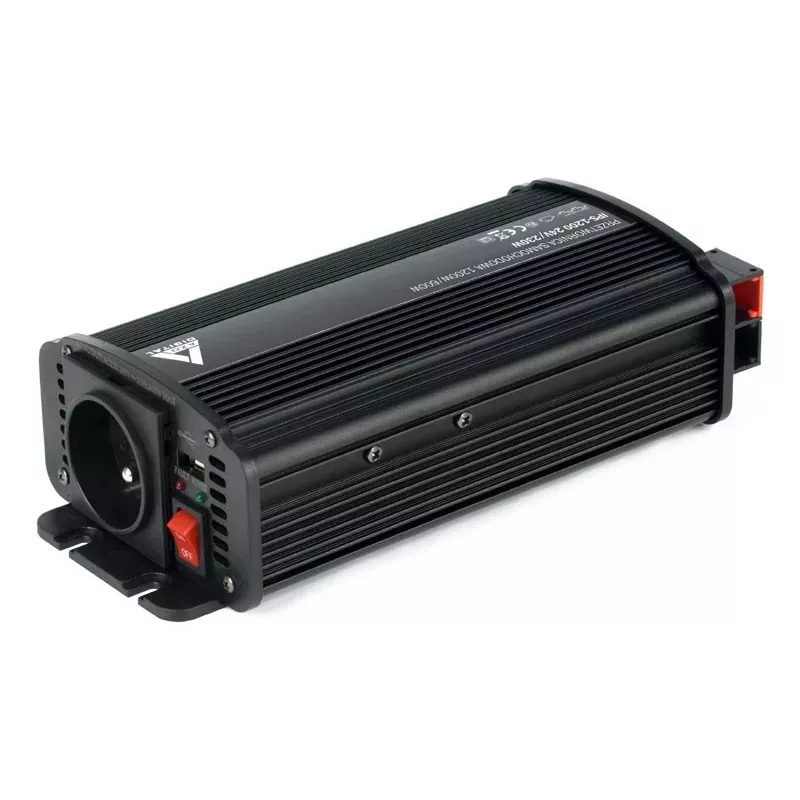

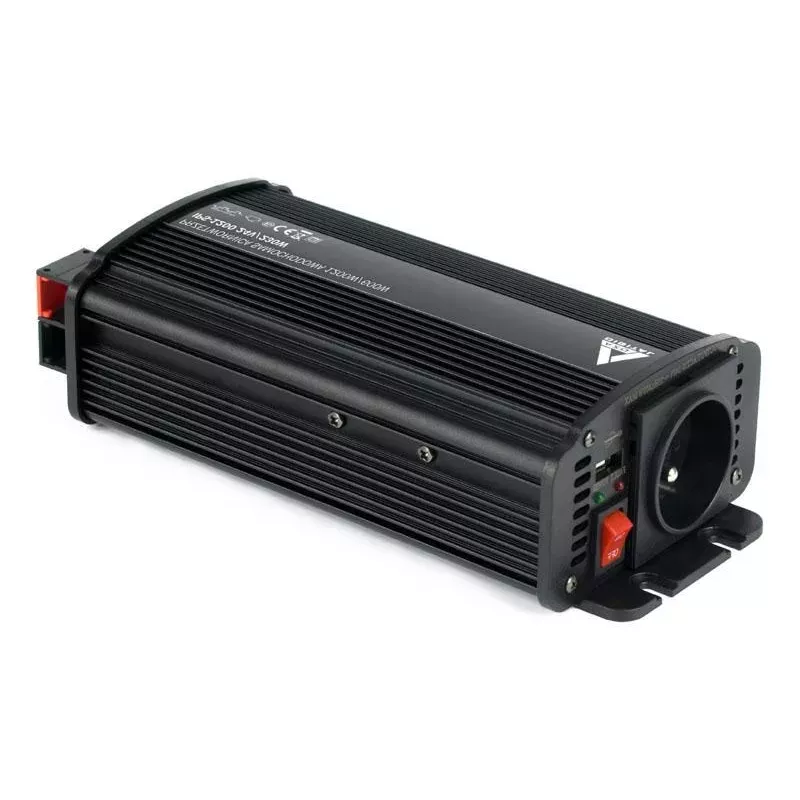

AZO Digital inversor para automóvil 24 VDC / 230 VAC IPS-1200U 1200W onda senoidal pura

The AZO Digital IPS-1200U is a high-performance automotive power inverter that converts 24V DC battery power into 230V AC pure sine wave output, delivering 1200W continuous power (2400W peak). Ideal for mobile applications, RVs, boats, and off-grid systems, it provides clean, stable AC power for sensitive electronics and appliances.

Advantages

Pure sine wave output ensures compatibility with sensitive devices like laptops, medical equipment, and audio systems. High efficiency (>90%) minimizes battery drain. Comprehensive safety protections (overload, short circuit, over/under-voltage, over-temperature, reverse polarity) ensure reliable operation. Active cooling fan maintains performance under load.

Suitable for

• Caravans, RVs, and campervans
• Marine and boat applications
• Off-grid solar systems
• Mobile workshops and service vehicles
• Emergency backup power

Key specifications

• Input Voltage: 24V DC (21-31V range)
• Output Voltage: 230V AC
• Continuous Power: 1200W
• Peak Power: 2400W
• Output Waveform: Pure Sine Wave
• Output Frequency: 50 Hz
• USB Output: 5V DC / 2.1A
• Efficiency: >90%
• Cooling: Active fan
• AC Outlets: 1 (Schuko type)
• Standby Current: <0.8A
• Operating Temperature: -10°C to +50°C
• Housing: Aluminum
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a deep-cycle battery and ensure adequate ventilation. The inverter is not suitable for inductive loads exceeding 1200W continuous. Always connect directly to battery terminals with appropriate cable gauge.
