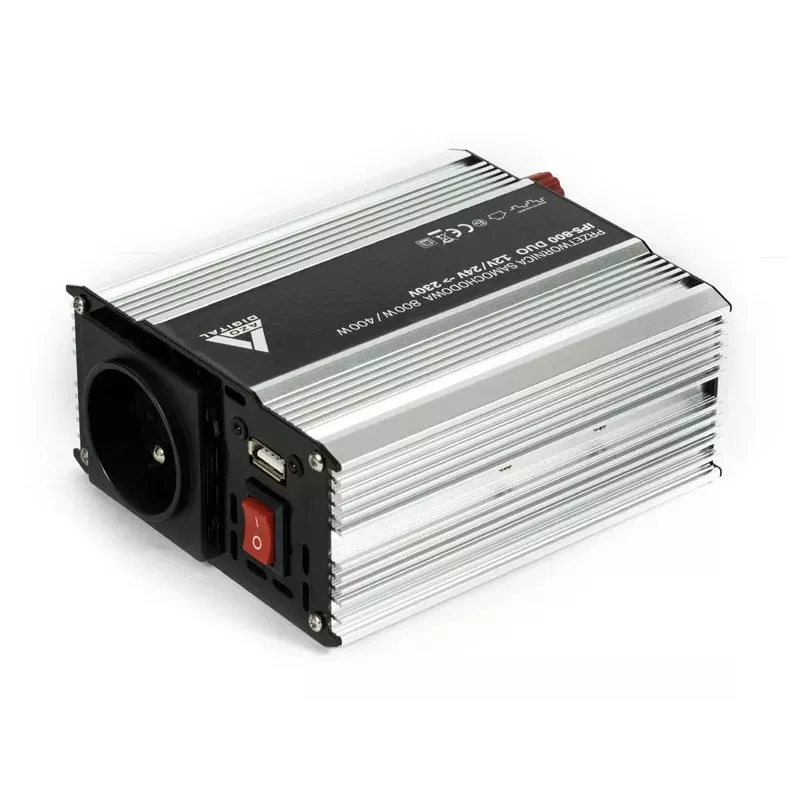

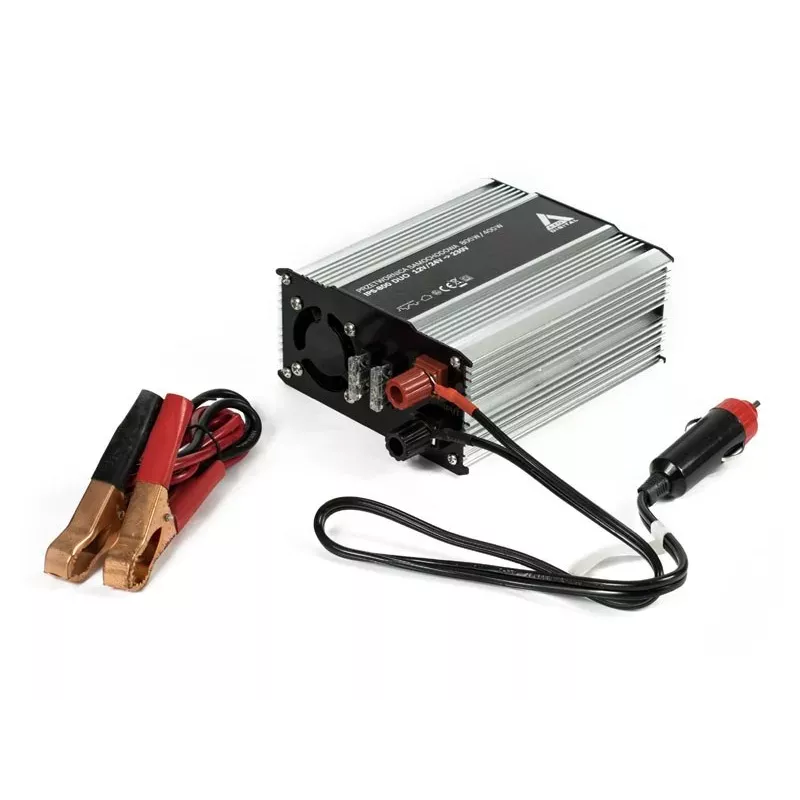

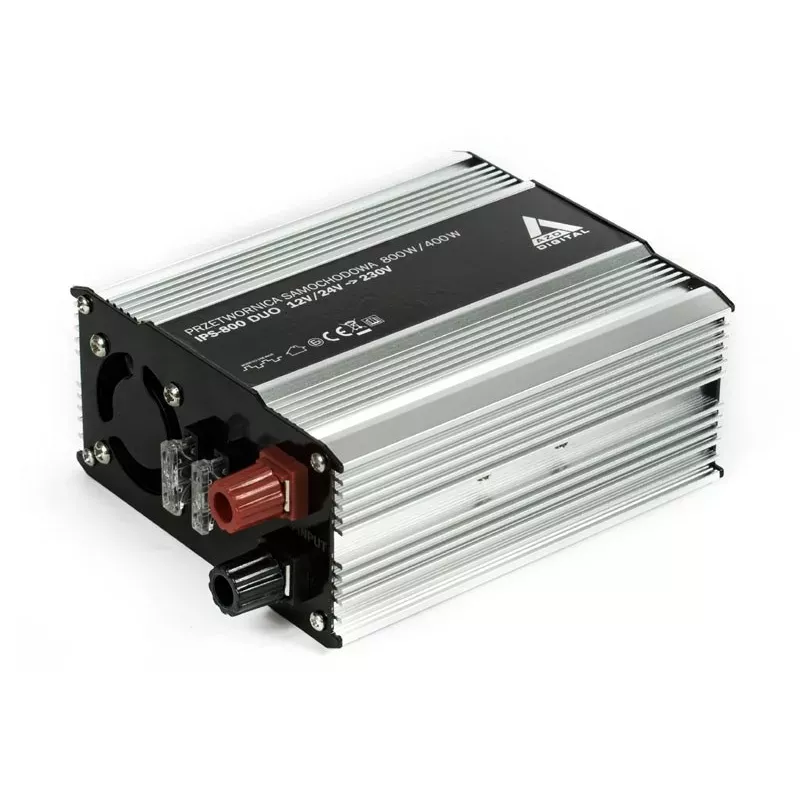

AZO Digital Inversor para automóvil 12 VDC / 24 VDC / 230 VAC IPS-800 800W Duo

The AZO Digital IPS-800 Duo is a high-performance automotive inverter that converts 12V or 24V DC battery power into stable 230V AC, delivering 800W continuous and 1600W peak power. Featuring pure sine wave output, it ensures safe and efficient operation of sensitive electronics, making it ideal for mobile, marine, and off-grid applications.

Advantages

Auto-sensing dual input voltage (12V/24V) for versatile use. High efficiency >92% reduces battery drain. Pure sine wave output protects sensitive devices. Comprehensive protections: overload, short circuit, over/under voltage, over temperature, reverse polarity. Thermostatically controlled fan for quiet, efficient cooling.

Suitable for

• Caravans, RVs, and campervans
• Boats and marine environments
• Trucks and commercial vehicles
• Off-grid solar systems
• Emergency power backup

Key specifications

• Input Voltage: 12V DC / 24V DC (auto-sensing)
• Output Voltage: 230V AC
• Continuous Power: 800W
• Peak Power: 1600W
• Output Waveform: Pure Sine Wave
• Output Frequency: 50 Hz (±0.5 Hz)
• Efficiency: >92%
• No-load Current (12V): <0.7A
• No-load Current (24V): <0.4A
• USB Output: 5V DC, 2.1A
• Output Sockets: 1x Schuko (Type F)
• Input Voltage Range (12V DC): 10.5V - 15.5V
• Input Voltage Range (24V DC): 21V - 31V
• Low Battery Shutdown (12V): 10.0V (±0.3V)
• Low Battery Shutdown (24V): 20.0V (±0.6V)
• Over Voltage Shutdown (12V): 15.5V (±0.5V)
• Over Voltage Shutdown (24V): 31.0V (±1.0V)
• Protections: Overload, Short Circuit, Over/Under Voltage, Over Temperature, Reverse Polarity
• Cooling: Active (Thermostatically Controlled Fan)
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a deep-cycle battery and ensure adequate ventilation. The inverter is designed for indoor or sheltered use; avoid exposure to moisture or direct sunlight.
