BACHMANN BN PRO M 36xC13 6xC19 33,0m CEE 16A/5p Unidad de distribución de energía

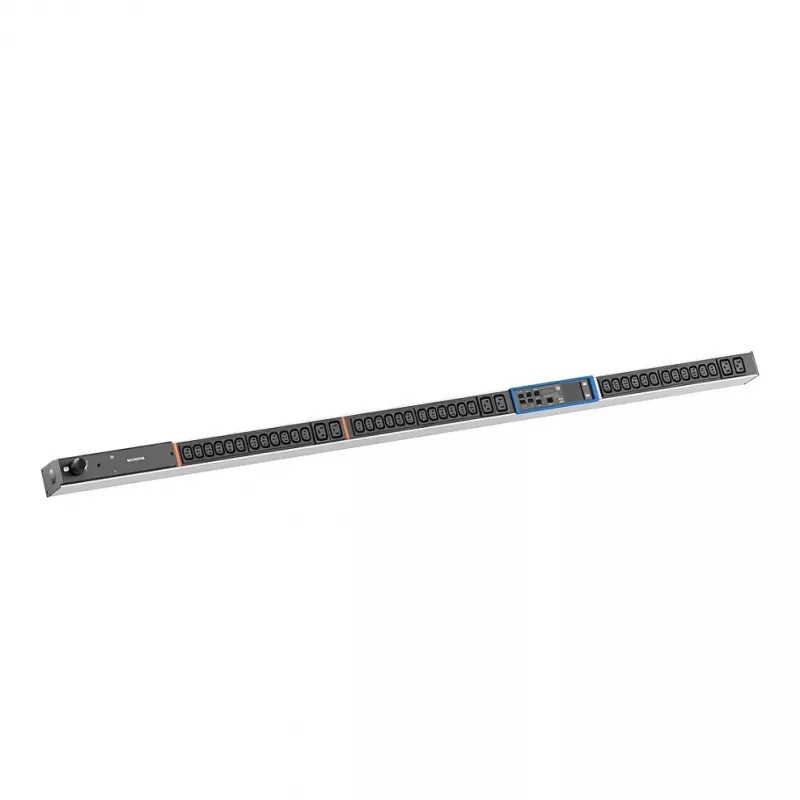

The BACHMANN BN PRO M is a high-performance Power Distribution Unit (PDU) designed for professional data center and server room environments. With 36 IEC C13 and 6 IEC C19 outlets, it provides reliable power distribution for up to 42 devices. The 33.0-meter input cable with a CEE 16A/5p plug offers flexible installation options, while the robust aluminum housing ensures durability and efficient heat dissipation.

Advantages

This PDU features a vertical 0U form factor, saving valuable rack space. The 16A/400V 3-phase input delivers up to 11 kW of power, making it suitable for high-density equipment. The mixed outlet configuration (C13 and C19) accommodates a wide range of IT devices, from servers to network switches. The long 33-meter cable allows for easy routing in large installations.

Suitable for

• Data centers and server rooms requiring high-density power distribution
• Rack-mounted IT equipment such as servers, switches, and storage systems
• Industrial environments with 400V 3-phase power supply

Key specifications

• Product Type: Power Distribution Unit (PDU)
• Series: BN PRO M
• Input Plug: CEE 16A, 5-pole (3P+N+PE)
• Input Current: 16 A
• Input Voltage: 400 V AC
• Number of Phases: 3-phase + Neutral + Earth
• Output Sockets: 36 x IEC C13, 6 x IEC C19
• Total Outlets: 42
• Input Cable Length: 33.0 m
• Max Power Rating: 11 kW
• Mounting: Vertical (0U) Rack Mount
• Housing Material: Aluminum
• Color: Black
• Frequency: 50/60 Hz
• Protection Class: IP20
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure the upstream circuit breaker is rated appropriately for the 16A load. This basic PDU does not include monitoring or switching features; consider a metered or switched PDU if remote power management is required.
