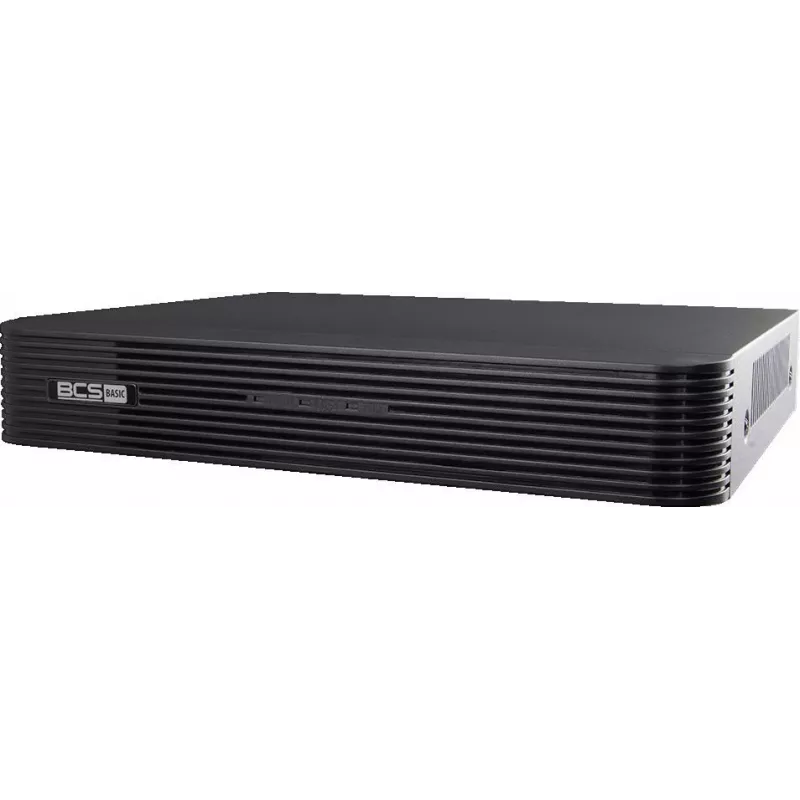

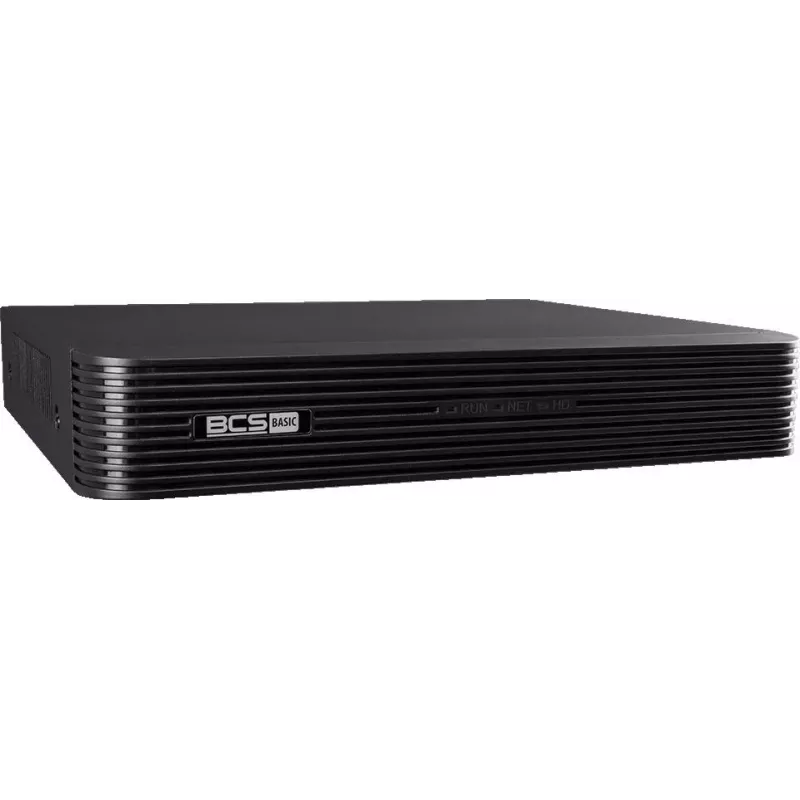

BCS BASIC BCS-B-NVR0401-4P(2.0) NVR de 4 canales con 4 PoE

The BCS BASIC BCS-B-NVR0401-4P(2.0) is a reliable 4-channel network video recorder with 4 built-in PoE ports, designed for small to medium surveillance systems. It supports up to 8MP resolution per channel and features H.265+ compression for efficient storage and bandwidth usage.

Advantages

This NVR offers seamless integration with IP cameras via ONVIF support, easy remote access through web browser, CMS software, or mobile app, and flexible recording modes including motion detection and schedule. The embedded Linux operating system ensures stable and secure operation.

Suitable for

• Small businesses
• Retail stores
• Office surveillance
• Home security systems

Key specifications

• 4 IP camera channels with 4 PoE ports (IEEE 802.3af/at)
• Max recording resolution: 8MP (3840x2160) per channel
• Video compression: H.265+/H.265/H.264+/H.264
• Incoming/outgoing bandwidth: 40 Mbps
• 1 SATA HDD bay, up to 8 TB
• Video outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA in, 1x RCA out
• Network: 1x RJ-45 10/100 Mbps
• USB: 2x USB 2.0
• Power: DC 48V / 1.25A (60W)
• Operating temperature: -10°C to +55°C

Recommendations

For optimal performance, use with BCS or compatible ONVIF cameras. Ensure adequate ventilation and use a UPS for uninterrupted operation.
