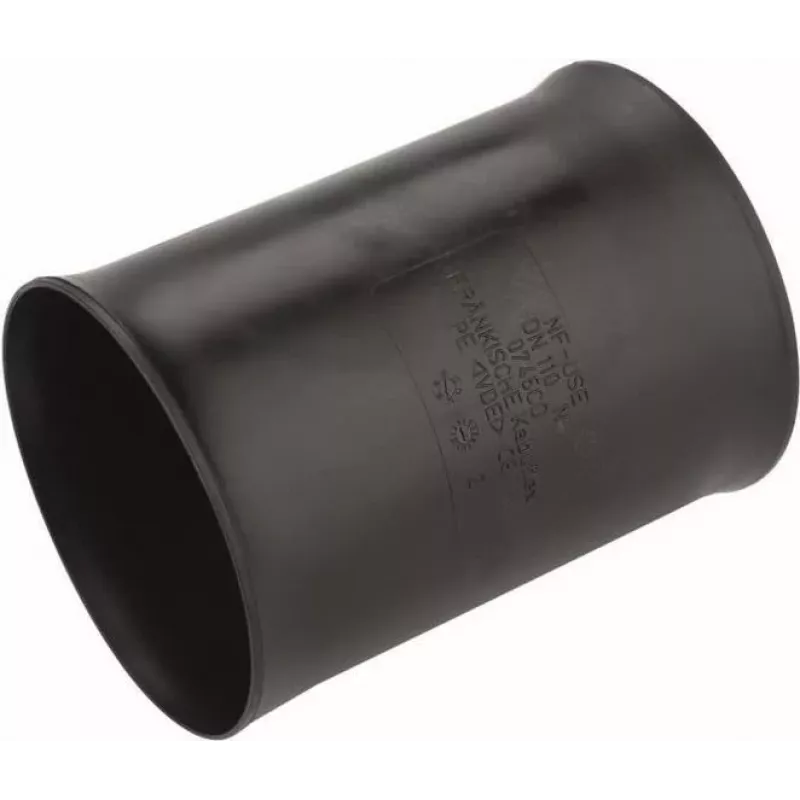

FRAENKISCHE Kabuflex R Manguito doble 75 mm negro junta de enchufe SD

Connecting cable protection conduits underground or in demanding environments often requires a solution that withstands mechanical stress, moisture, and temperature fluctuations. The FRAENKISCHE Kabuflex R Double Socket Coupling 75 mm provides a secure, push-fit connection for 75 mm outer diameter conduits, ensuring a reliable seal without the need for additional tools or adhesives. Its black polyethylene construction offers high impact resistance and long-term durability, making it ideal for cable routing in civil engineering, infrastructure, and industrial applications.

Who is it for

This coupling is intended for electricians, network installers, and construction professionals who need to join Kabuflex R conduits quickly and safely. It is suitable for both new installations and repairs in cable protection systems, especially where IP67 protection is required.

Main features

• Double socket design for connecting two conduit ends
• Push-fit seal (SD) for fast, tool-free installation
• Made of robust polyethylene (PE), halogen-free and recyclable
• UV-resistant and suitable for outdoor use
• High impact resistance and good chemical resistance
• Complies with DIN EN 61386-24

Specifications

• Nominal diameter (DN): 75 mm
• Conduit outer diameter compatibility: 75 mm
• Material: Polyethylene (PE)
• Colour: Black
• Sealing type: Push-fit seal (SD)
• Operating temperature range: -5°C to +90°C
• Ingress protection: IP67 (when installed correctly)
• Halogen-free: Yes
• Recyclable: Yes
• Standard compliance: DIN EN 61386-24

Tips

Ensure conduit ends are clean and free of debris before insertion. For outdoor installations, verify that the coupling is fully seated to maintain the IP67 seal. Store in a dry place away from direct sunlight when not in use.
