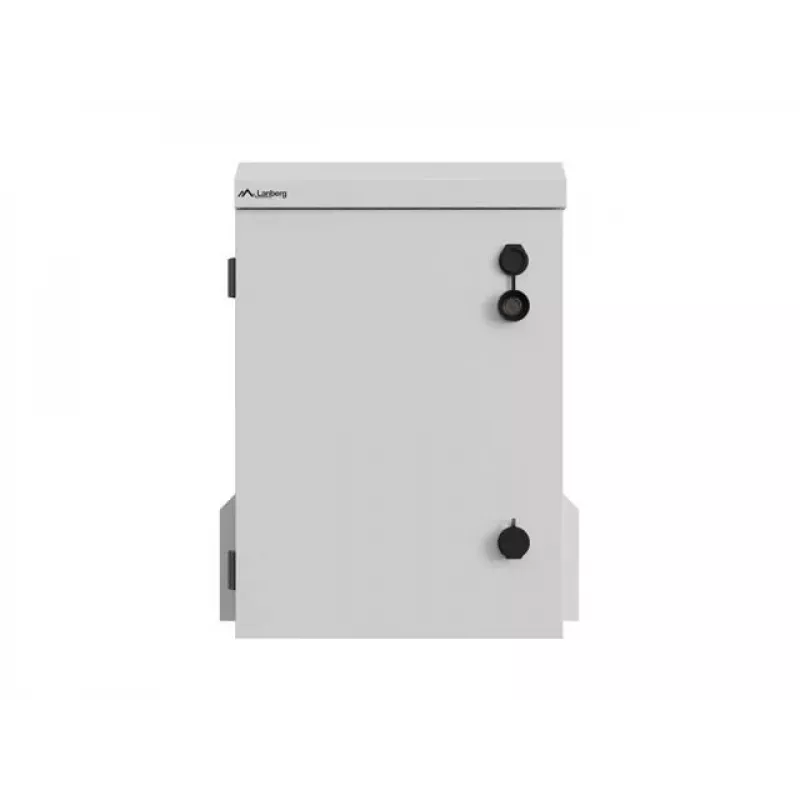

Lanberg WAH1-3450-00S Armario rack hermético IP55 de montaje en pared/mástil de 10 inch 6U 340x250x500 mm Gris (montado)

In industrial automation, outdoor telecom installations, or dusty factory floors, networking equipment needs protection from moisture, dust, and unauthorized access. The Lanberg WAH1-3450-00S rack cabinet answers that call with a sealed IP55 enclosure that mounts on walls or poles, keeping your 10-inch devices safe and organized.

Key specifications

• 10-inch rack standard, 6U capacity
• IP55 hermetic protection against dust and water jets
• External dimensions: 340 mm height, 250 mm width, 500 mm depth
• Grey RAL 7035 powder-coated cold-rolled steel body
• Solid steel door with single-point key lock
• Top and bottom gland plates for sealed cable entry
• Pre-assembled for immediate deployment
• Maximum static load capacity: 20 kg
• Passive sealed design, no ventilation openings
• Fixed side panels, non-removable
• Compliant with RoHS and CE standards

Why choose it

This cabinet delivers robust protection in harsh environments where standard racks would fail. The IP55 rating ensures resistance to dust ingress and low-pressure water jets from any direction, making it suitable for outdoor use under shelter or in washdown areas. The pre-assembled construction saves installation time, while the solid steel door with key lock deters tampering. Its 6U capacity accommodates switches, patch panels, power distribution units, and other 10-inch equipment, with a usable internal depth of approximately 450 mm for comfortable cable management.

Ideal use cases

• Outdoor wireless access points and small cell sites
• Industrial machine control cabinets
• IP surveillance systems in exposed locations
• Building automation and IoT gateways
• Marine and coastal installations

Good to know

The cabinet includes top and bottom gland plates for routing cables while maintaining the IP55 seal. Mounting hardware for wall or pole installation is not included, so plan accordingly. The grey RAL 7035 finish blends with most industrial environments and provides corrosion resistance. With a load capacity of 20 kg, it handles typical 10-inch networking gear with ease.
