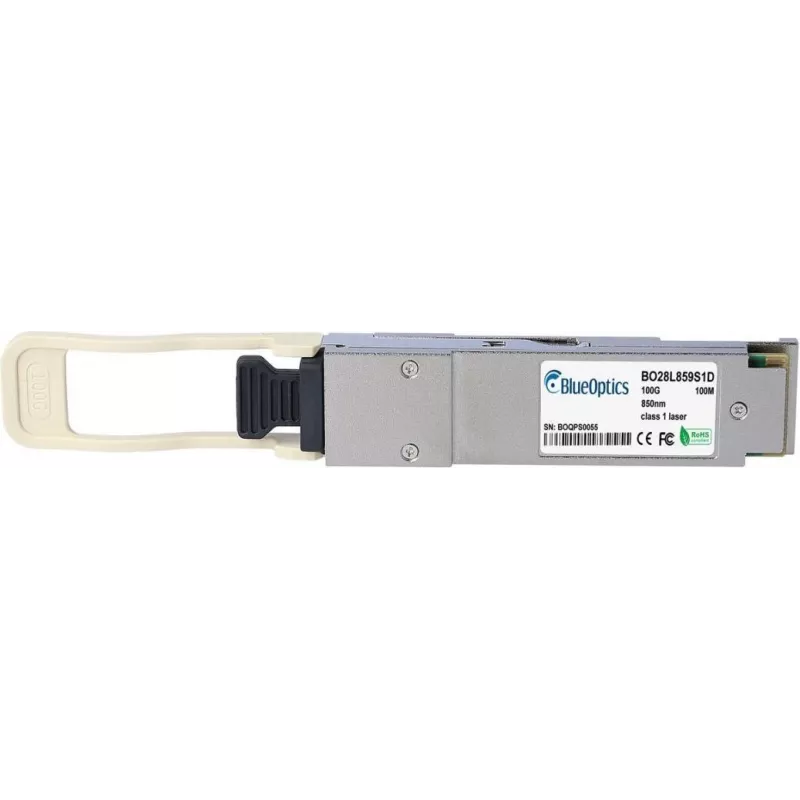

BlueOptics IBM 78P4988 BO28L859S1D Transceptor QSFP28, 100GBASE-SR4, MPO/MTP, fibra multimodo, 4x850nm, 100m, 0°C a +70°C, DDM

The BlueOptics BO28L859S1D is a high-performance QSFP28 optical transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with IBM 78P4988 and offers reliable connectivity for data center and enterprise networks. This transceiver supports 100GBASE-SR4 standard over multimode fiber with MPO/MTP connector, providing a cost-effective solution for short-range high-speed links.

Advantages

This transceiver delivers exceptional performance and reliability, featuring hot-pluggable capability and Digital Diagnostic Monitoring (DDM) for real-time monitoring of operating parameters. It is MSA compliant and built with VCSEL technology, ensuring low power consumption and long operational life. The MPO/MTP connector simplifies cabling and reduces installation time.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing clusters
• Telecommunications equipment

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Standard: 100GBASE-SR4
• Connector Type: MPO/MTP (12-fiber)
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 4x 850nm
• Max Reach: 100 meters
• Operating Temperature: 0°C to +70°C
• DDM/DOM Support: Yes
• Compatibility: IBM 78P4988
• Optical Source: VCSEL
• Hot Swappable: Yes
• MSA Compliant: Yes
• Channels: 4 Transmit (Tx) / 4 Receive (Rx)

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper cleaning of MPO connectors. This transceiver is ideal for upgrading existing 10G/40G networks to 100G.
