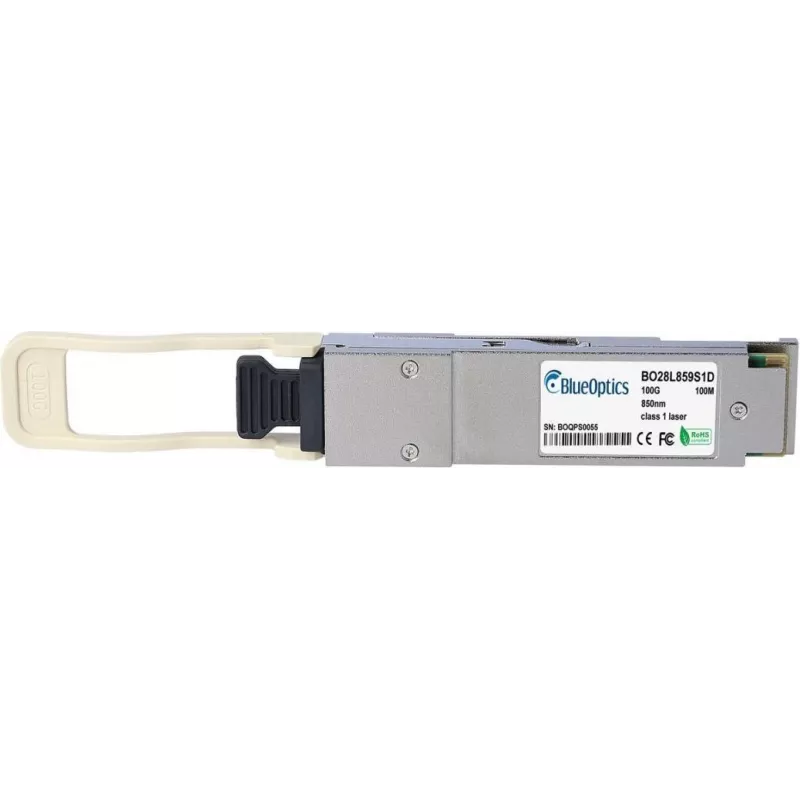

BlueOptics Transceptor QSFP28 compatible con HPE Alletra R7D08A, MPO, 100GBASE-SR4, fibra multimodo, 4x850nm, 100 metros, DDM/DOM, 0°C a +70°C (R7D08A-BO)

The BlueOptics BO28L859S1D is a high-performance QSFP28 optical transceiver designed for 100GBASE-SR4 applications. It is fully compatible with HPE Alletra R7D08A and other standard QSFP28 ports, delivering reliable connectivity for data center and enterprise networks. This module supports multimode fiber (MMF) with MPO-12 connector, operating at 4x850nm wavelength and reaching up to 100 meters. With DDM/DOM support and a wide operating temperature range of 0°C to +70°C, it ensures optimal performance and monitoring capabilities.

Advantages

This transceiver offers high-speed 100 Gbps data transfer, hot-pluggable design for easy installation, and robust build quality. It is IEEE 802.3bm compliant and utilizes VCSEL technology for efficient optical transmission. The BlueOptics brand ensures cost-effective compatibility without compromising performance.

Suitable for

• Data center interconnects
• Enterprise networking
• High-performance computing (HPC)
• 100GBASE-SR4 compliant networks

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Protocol: 100GBASE-SR4
• Connector Type: MPO-12
• Fiber Type: Multimode (MMF)
• Wavelength: 4x 850 nm
• Max Reach: 100 meters
• DDM/DOM: Yes
• Operating Temperature: 0°C to +70°C
• Hot-Pluggable: Yes
• Power Supply: 3.3V
• Compliance: IEEE 802.3bm

Recommendations

For optimal performance, use with OM4 multimode fiber and ensure proper MPO connector cleaning. This transceiver is ideal for upgrading network infrastructure to 100G speeds.
