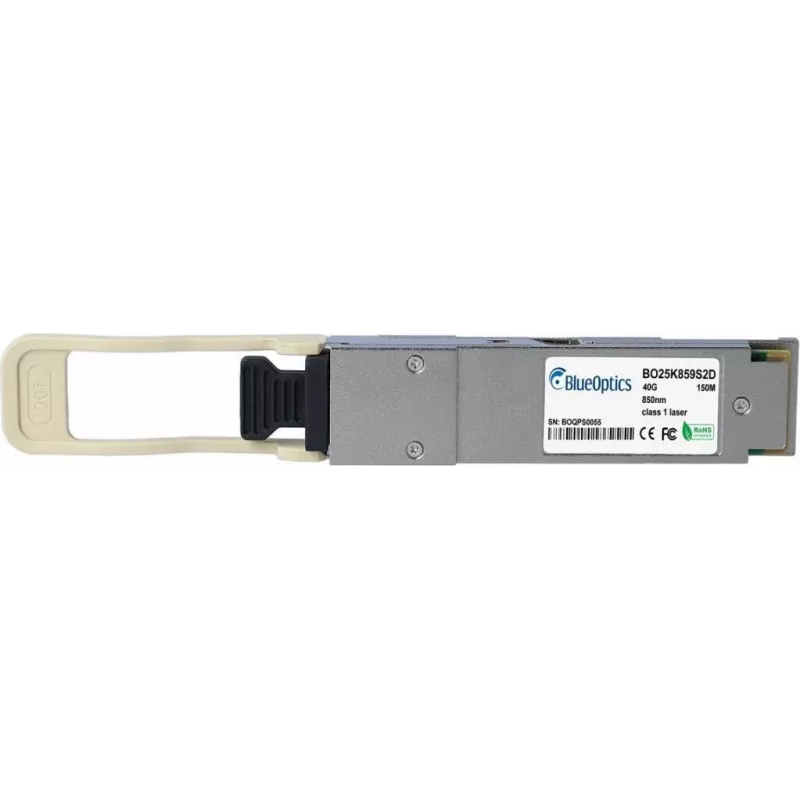

Transceptor BlueOptics BO25K859S2D QSFP+ 40GBASE-SR4, MPO/MTP, fibra multimodo, 4x850nm, 150m, 0°C a +70°C, compatible con IBM 78P6916 78P6916-BO

QSFP+ transceiver for 40 Gigabit Ethernet over multimode fiber, delivering 40 Gbps throughput across four 10 Gbps channels at 850 nm. The MPO/MTP interface supports short-reach links up to 150 meters on OM4 multimode fiber, making it suitable for high-density data center interconnects and enterprise backbone aggregation.

Advantages

Hot-pluggable QSFP+ form factor allows installation without interrupting network operation. Digital Diagnostics Monitoring (DDM) provides real-time visibility into transmit/receive power, temperature, and laser bias current. VCSEL-based optics ensure reliable performance across the 0°C to +70°C operating range.

Suitable for

• 40GBASE-SR4 Ethernet links in data centers
• Short-reach connections between switches, routers, and servers
• High-density aggregation where MPO/MTP cabling is deployed

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Standard: 40GBASE-SR4
• Connector: MPO/MTP
• Fiber Type: Multimode (MMF)
• Wavelength: 4x850 nm
• Max Distance: 150 m on OM4
• Operating Temperature: 0°C to +70°C
• Compatibility: IBM 78P6916
• DDM: Yes
• Hot-Pluggable: Yes
• Supply Voltage: 3.3 V
• Compliance: IEEE 802.3ba

Recommendations

For optimal performance, use with OM4 multimode fiber and MPO/MTP connectivity. Verify compatibility with your IBM equipment before deployment.
