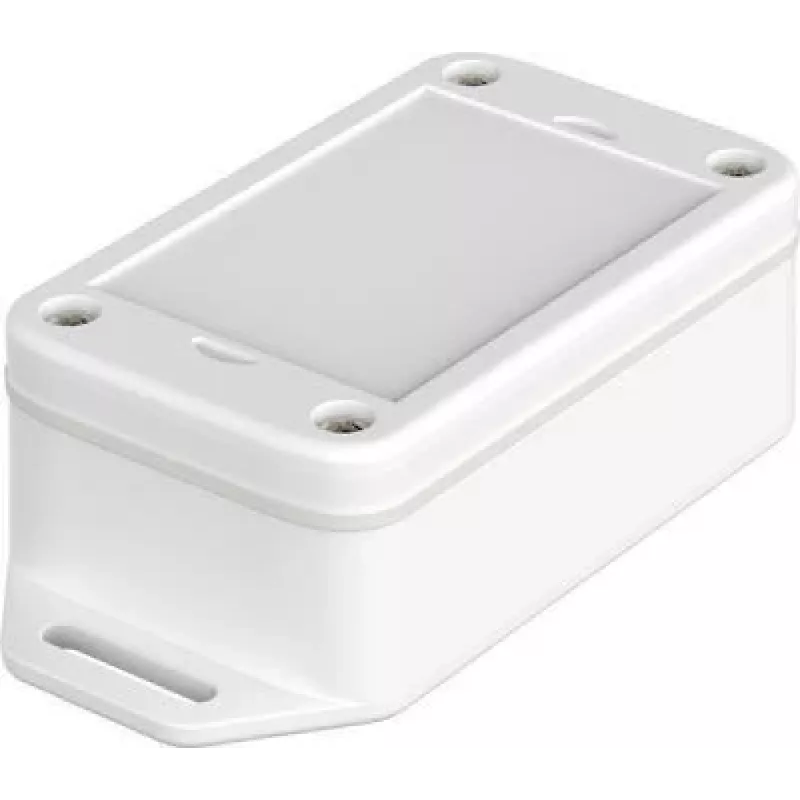

Bopla BoLink BL 704025 WL2 DO-9003 Carcasa universal, policarbonato, blanco señal, 71,1 x 43,2 x 26 mm, IP65, UL 94 V-0 16174563.HMT1

The Bopla BoLink BL 704025 WL2 DO-9003 stands out with its compact yet robust design, combining a signal white polycarbonate shell with an IP65 protection class and UL 94 V-0 flammability rating. This enclosure is engineered for applications where both safety and environmental resilience are critical.

Highlights

• Polycarbonate construction in signal white (RAL 9003) for high impact resistance and UV stability
• IP65 protection against dust and water jets
• UL 94 V-0 flammability rating for enhanced fire safety
• Integrated wall-mounting screw channels for easy installation
• Captive stainless steel lid screws with polyurethane gasket for reliable sealing

In daily use

With external dimensions of 71.1 x 43.2 x 26 mm, this enclosure accommodates small electronic assemblies, sensors, or interface modules. The operating temperature range of -40 to +100 °C allows deployment in harsh environments, while the IK07 impact resistance ensures durability against mechanical shocks. The included gasket and four captive screws simplify assembly and maintenance.

Full specifications

• Enclosure type: Universal enclosure
• Series: Bopla BoLink
• Material: Polycarbonate (PC)
• Colour: Signal white (RAL 9003)
• External dimensions (L x W x H): 71.1 x 43.2 x 26 mm
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Operating temperature range: -40 to +100 °C
• Impact resistance: IK07
• Lid fastening: 4x stainless steel captive screws
• Gasket material: Polyurethane (PU)
• Mounting: Wall mounting via integrated screw channels
• Halogen-free: Yes
• UV stability: Good
• Included components: Enclosure base, lid, gasket, 4 lid screws

Final note

This enclosure is ideal for industrial electronics, IoT devices, and control systems that require a reliable, sealed housing in a compact footprint.
